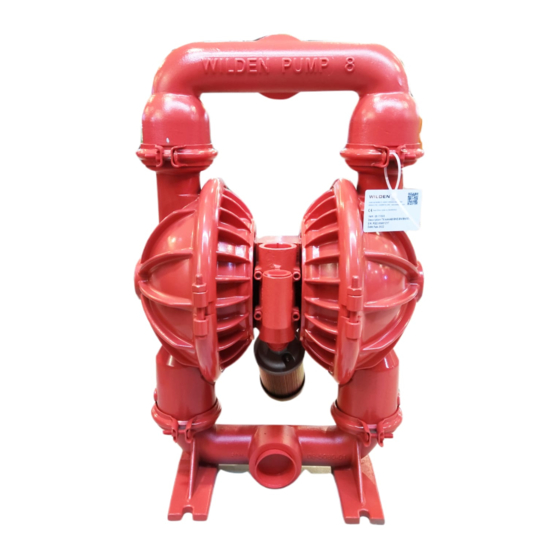

Wilden Original Series Engineering, Operation & Maintenance

Turbo-flo metal pumps
Hide thumbs Also See for Original Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Maintenance Manual, Engineering, Operation & Maintenance
T8
E n g i n e e r i n g
O p e r a t i o n &
™
Original
Series METAL Pumps
M a i n t e n a n c e
S i m p l i f y y o u r p r o c e s s
WIL-10272-E-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Original Series and is the answer not in the manual?

Questions and answers

Related Manuals for Wilden Original Series

Summary of Contents for Wilden Original Series

  • Page 1 E n g i n e e r i n g O p e r a t i o n & ™ Original Series METAL Pumps M a i n t e n a n c e S i m p l i f y y o u r p r o c e s s WIL-10272-E-01...

  • Page 2: Table Of Contents

    ..........1 SECTION 2 WILDEN PUMP DESIGNATION SYSTEM ....... . .2 SECTION 3 HOW IT WORKS—PUMP &...

  • Page 3: Cautions-Read First

    Consult engineering guide for chemical compat- ibility and temperature limits. NOTE: All non lube-free air-operated pumps must be lubricated. Wilden suggests an arctic 5 weight oil (ISO CAUTION: Always wear safety glasses when operat- grade 15). Do not over-lubricate pump. Over-lubrica- ing pump.
  • Page 4 , externals (screen & handles) ® ® 0050 Stallion 0233 Stallion , externals (screen & handles), BSPT NOTE: MOST ELASTOMERIC MATERIALS USE COLORED DOTS FOR IDENTIFICATION. Viton ® is a registered trademarks of DuPont Dow Elastomers. WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 5 H O W I T W O R K S — P U M P D I S T R I B U T I O N S Y S T E M The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show the flow pattern through the pump upon its initial stroke.

  • Page 6: Dimensional Drawings

    10.1 12.3 51 mm (2”) FNPT INLET 11.1 11.1 15.2 Ø15 Ø0.6 BSP threads available. ALUMINUM BASE SCREEN MODEL 51 mm (2”) FNPT 51 mm (2”) FNPT INLET FOOTED BASE FOR 316 S.S. MODELS WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 7 METRIC (mm) STANDARD (inch) 16.1 19 mm 19 mm (3/4”) (3/4”) FNPT FNPT AIR INLET 24.6 EXHAUST 26.2 24.0 14.8 10.4 13.6 11.1 11.0 Ø15 Ø0.6 BSP threads available 51 mm (2”) FNPT INLET WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...

  • Page 8: Rubber-Fitted

    (30 psig) requires 4.1 bar (60 psig) and will fall in the center of the pump performance curve. 85 Nm /h (50 scfm) air consumption. (See dot on chart.) Caution: Do not exceed 8.6 bar (125 psig) air supply pressure. WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...

  • Page 9: Ptfe-Fitted

    4.1 bar (60 psig) and 110.5 will fall in the center of the pump performance curve. /h (65 scfm) air consumption. (See dot on chart.) Caution: Do not exceed 8.6 bar (125 psig) air supply pressure. WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...

  • Page 10: Stallion Tpe-Fitted

    For optimum life and performance, pumps should be specified so that daily operation parameters scfm) air consumption. (See dot on chart.) will fall in the center of the pump performance curve. Caution: Do not exceed 8.6 bar (125 psig) air supply pressure. WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...

  • Page 11: Suction Lift Curves

    The number of intake and discharge elbows, viscosity of pumping fluid, PTFE elevation (atmospheric pressure) and pipe friction loss all affect the amount of suction lift your pump will attain. WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...
  • Page 12 SUPPLY PRESSURE. (3.4 BAR [50 PSIG] FOR UL displacement per stroke. MODELS.) MUFFLER: Sound levels are reduced below OSHA speci- CAUTION: DO NOT HANG T8 STALLION PUMPS BY THEIR fications using the standard Wilden muffler element. Other HANDLES. WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 13 The their applications. Wilden T8 pump runs solely on compressed air and does not generate heat, therefore your process fluid temperature will not be affected.
  • Page 14 4. Check center block Glyd™ rings. If worn excessively, they manifold. will not seal and air will simply flow through pump and out air exhaust. Use only Wilden Glyd™ rings as they are of Product comes out air exhaust. special construction.

  • Page 15: Disassembly / Reassembly

    Be aware of any hazardous effects of contact with your process fluid. The Wilden T8 has a 51 mm (2") inlet and 51 mm (2") outlet and is designed for flows up to 617 lpm (163 gpm). The model T8 is available in aluminum, cast iron, or 316 stainless steel wetted parts.
  • Page 16 Remove the intake valve balls, seats and o-rings from the discharge manifold and inspect for nicks, gouges, chemical attack or abrasive wear. Replace worn parts with genuine Wilden parts for reliable performance. PTFE o-rings should be replaced when reassembled. Step 6.
  • Page 17 Using an adjustable wrench, remove diaphragm shaft for signs of wear or chemical attack. Replace all worn assembly from shaft. Inspect all parts for wear and replace parts with genuine Wilden parts for reliable performance. with genuine Wilden parts if necessary. WIL-10272-E-01...

  • Page 18: Air Valve/Center Section Repair/Maintenance

    “trigger” to tell the air valve to shift. The follow- ing procedure will ensure that the air valve on your Wilden pump will provide long trouble-free service. AIR VALVE BODY AND PISTON...
  • Page 19 When bushing wear becomes excessive, PORT a new center block must be used. 3/16" DRILL Grooves in BLEED-OFF bushing which PORT contain Glyd™ rings Figure G Center Block (Front View) P/N 08-3800-09-65 P/N 08-3210-55-225 Figure E WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...

  • Page 20: Reassembly Hints & Tips

    • When installing Glyd™ rings, the use of the Wilden Ringer • Stainless bolts should be lubed to reduce the possibility of tool simplifies seal installation.
  • Page 21 WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...

  • Page 22: Exploded View And Parts Listing

    E X P L O D E D V I E W & P A R T S L I S T I N G T8 METAL R u b b e r / T P E - F i t t e d E X P L O D E D V I E W WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 23 T8 Stallion pumps utilize only four (4) of P/N’s 08-6100-03 and 08-6408-08 on the bottom manifold and water chambers. *Refer to elastomer options in Section 9. NOTE: BSP threads available. All boldface items are primary wear parts. 0030 Specialty Code = Screen Base 0050 Specialty Code = Stallion WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...
  • Page 24 E X P L O D E D V I E W & P A R T S L I S T I N G ( C o n t ’ d ) T8 METAL R u b b e r / T P E - F i t t e d E X P L O D E D V I E W WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 25 All boldface items are primary wear parts. **Refer to elastomer options in Section 9. **Refer to Stallion elastomer options in Section 9. 0030 Specialty Code = Screen Base NOTE: BSP threads available. 0050 Specialty Code = Stallion WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...

  • Page 26: T8 Metal Ptfe-Fitted

    E X P L O D E D V I E W & P A R T S L I S T I N G T8 METAL P T F E - F i t t e d E X P L O D E D V I E W METAL AIR-OPERATED PTFE- FITTED WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 27 Small Hex Head Cap Screw 5/16”-18 x 1-3/8” 08-6050-03 08-6050-03 Small Hex Nut 5/16”-18 08-6400-03 08-6400-03 All boldface items are primary wear parts. PTFE Valve Seat O-Ring 08-1200-55 08-1200-55 Muffler (not shown) 08-3510-99 08-3510-99 WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...

  • Page 28: Elastomer Options

    VALVE SEATS (4) MATERIAL Polyurethane 08-1010-50 08-1080-62-50 08-1120-62-50 Wil-Flex™ 08-1010-58 08-1080-58-50 08-1120-58-50 Sanifl ex™ 08-1010-56 08-1080-56-50 08-1120-56-50 Neoprene 08-1010-51 08-1080-51-50 08-1120-51-50 Buna-N 08-1010-52 08-1080-52-50 08-1120-52-50 Viton ® 08-1020-53 08-1080-53-50 08-1120-53-50 EPDM 08-1020-54 08-1080-54-50 08-1120-54-50 WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 29 S e c t i o n 8 N O T E S WIL-10272-E-01 WILDEN PUMP & ENGINEERING, LLC...
  • Page 30 S e c t i o n 8 N O T E S WILDEN PUMP & ENGINEERING, LLC WIL-10272-E-01...
  • Page 31 Since the use of Wilden pumps and parts is beyond our control, we cannot guarantee the suitability of any pump or part for a particular application and Wilden Pump and Engineering, LLC shall not be liable for any consequential damage or expense arising from the use or misuse of its products on any application.
