General Description
The FA-DX (fahrenheit) and FA-DX-AAB (celsius) FreezeAlarm
monitors temperature, power status, security or an external contact,
and offers remote switch control capability. Upon an alarm condition,
the FreezeAlarm
automatically dials up to three phone numbers with
™
a voice message. Current temperature and alarm conditions can be
checked by calling the FreezeAlarm
Applications
Applications include remote temperature, power and security
monitoring of refrigeration, heating and air conditioning equipment
for buildings (homes, cabins and commercial buildings) and monitor-
ing of any relay output system or sensor. The remote switch control
feature can be used to control thermostats or equipment from any
Touch Tone™ phone (additional parts and labor may be needed).
Features
• Adjustable high & low temperature alarm setpoints
• Three telephone number call out, up to 16 digits each
• Paging feature - any or all of the call-to numbers can be
to a digital pager
• Power loss call out alarm
• Low battery call out alarm
• Remote access to programming menu and current
condition status
• Monitors an open contact
Specifications
Power requirements: Plugs into standard 110 VAC outlet
(plug-in wall transformer with six foot long cord included)
Sensor: Semi-conductor sensor with 1.75" x .25" nickel plated
copper cap and three foot cord
Operating range of sensor: -49° to 199°F (-45° to 93°C)
Accuracy: +2°F (+2°C)

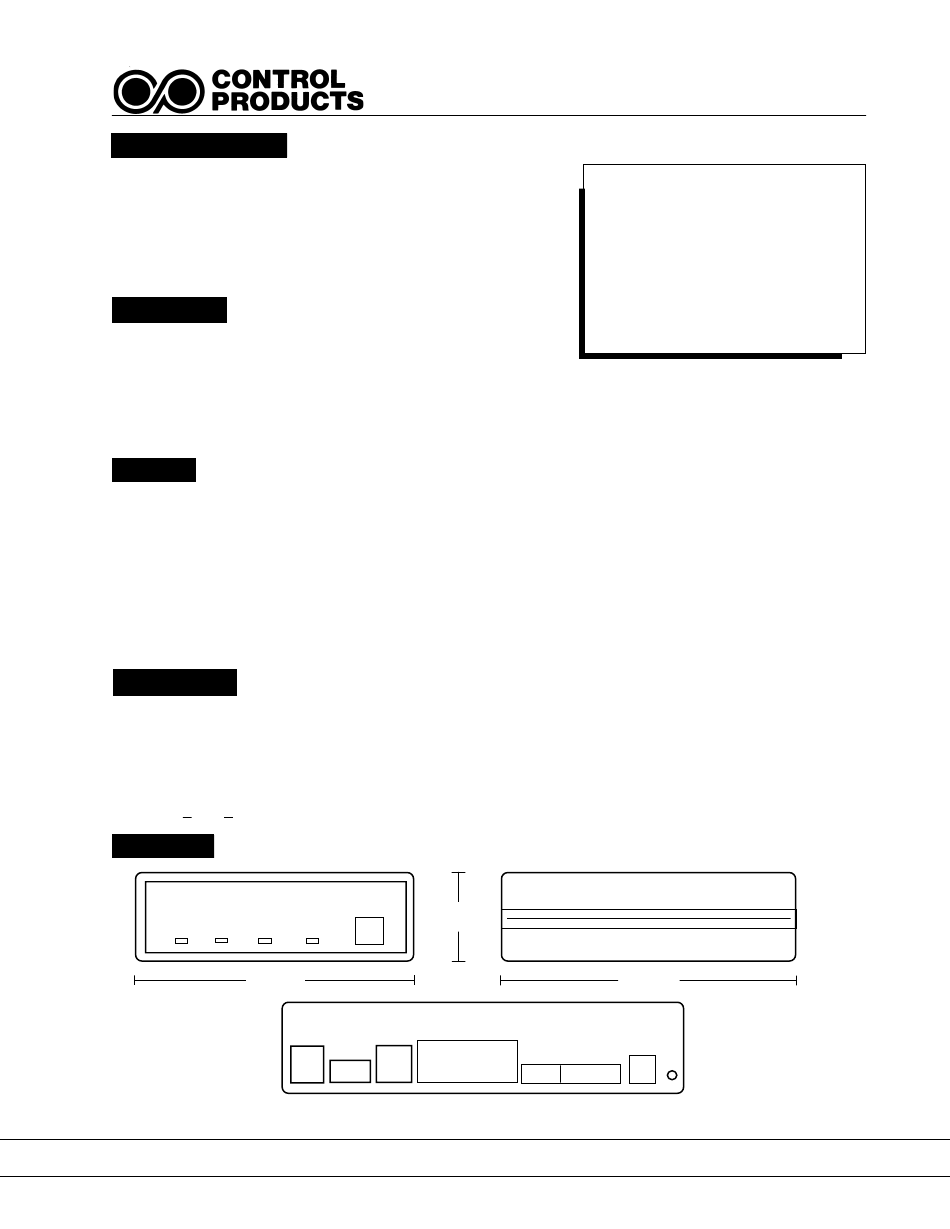

Dimensions
POWER
ALARM
T 1
6.0"
(152mm)
WALLJACK
Telephone
Line Input
1724 Lake Drive West • Chanhassen, MN 55317 • 952-448-2217 FAX 952-448-1606 • Made in USA
Innovative Technologies in Custom Electronic Design & Manufacturing
from any remote location.
™
2.5"
(64mm)
T 2
OUT TO
+9V BATTERY
SENSOR
Option
Sensor
Battery
Selector
Input
Compartment
™
FreezeAlarm ™
FA-DX / FA-DX-AAB
• Remote control switch relay
• Location identification number
• Custom voice message recording
• Selectable 15 minute or 2 hour call out interval
• Selectable 10 or 3 ring call out
• Security coded access to programming menu
• Dials out in pulse or tone
• LED status indicators
• Battery back-up (9 volt-not included)
Remote switch: SPDT, 10 amps 24 volts resistive
Ambient temperature range: 32° to 140°F
(0° to 60°C)
Humidity: 90% non-condensing
Weight: 3.0 pounds (1.4kg)
6.25"
(159mm)
AUX
+12VDC
ALARM
PWR
INPUTS
T1 COM T2
Power
Terminal
Remote Switch
Input
Block
T1/T2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Control Products FreezeAlarm FA-DX
Summary of Contents for Control Products FreezeAlarm FA-DX
- Page 1 Innovative Technologies in Custom Electronic Design & Manufacturing General Description The FA-DX (fahrenheit) and FA-DX-AAB (celsius) FreezeAlarm ™ monitors temperature, power status, security or an external contact, and offers remote switch control capability. Upon an alarm condition, FreezeAlarm ™ the FreezeAlarm automatically dials up to three phone numbers with ™...
-
Page 2: Installation
Installation IMPORTANT: It is critical that the FreezeAlarm be tested at the location of actual use, along with actual ™ call-out to destination, since local and long distance telephone lines and systems vary and may affect performance. 1. Before Starting: Please read the Warranty information before using this product. 2. - Page 3 The menu structure of the FreezeAlarm ™ If a “1” is pressed: To review or program call out telephone number one press one Call out telephone number two press two Call out telephone number three press three To return to the main menu press four If you press “1”, “2”...
- Page 4 MENU DESCRIPTIONS CALL OUT TELEPHONE NUMBERS: Follow verbal prompts to change call-out telephone numbers. You may enter the star key to leave an entry blank (no number). After call-out telephone numbers are programmed, press "1" to return to Call-Out Telephone number menu. Once in the Call-Out Telephone Number Menu, press "4"...
- Page 5 CALLING THE FREEZEALARM FROM A REMOTE LOCATION When called from a remote location using a Touch Tone™ phone, the FreezeAlarm will answer after five rings and ™ you will hear: "Enter the security code followed by the star key." If you enter the correct security code within 15 seconds, and the FreezeAlarm is not in alarm, ™...
-
Page 6: Troubleshooting
Other models are available: FA-I FreezeAlarm™ and FA-D FreezeAlarm™ Custom Design & Modifications In addition to standard models, Control Products specializes in complete custom design of electronic controls. Modifications of our standard controls are also available. Please consult factory for more information. -
Page 7: Limited Warranty
Product, we encourage you to return the unused Product for a full refund. Thank you for your understanding. One Year Limited Warranty - Control Products, Inc. warrants its products to be free from defects in material and workmanship under normal use for one year, and is not responsible for consequential damages or installation costs of any nature. In the event that the Product does not conform to this Warranty at any time during the period of one year from original purchase date, Warrantor will repair the defect and return it to you at no charge. -
Page 8: Fcc Regulations
If they do you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. If you experience trouble with this telephone equipment, please contact Control Products, Inc. at 952-448-2217 for information on obtaining service or repairs.
