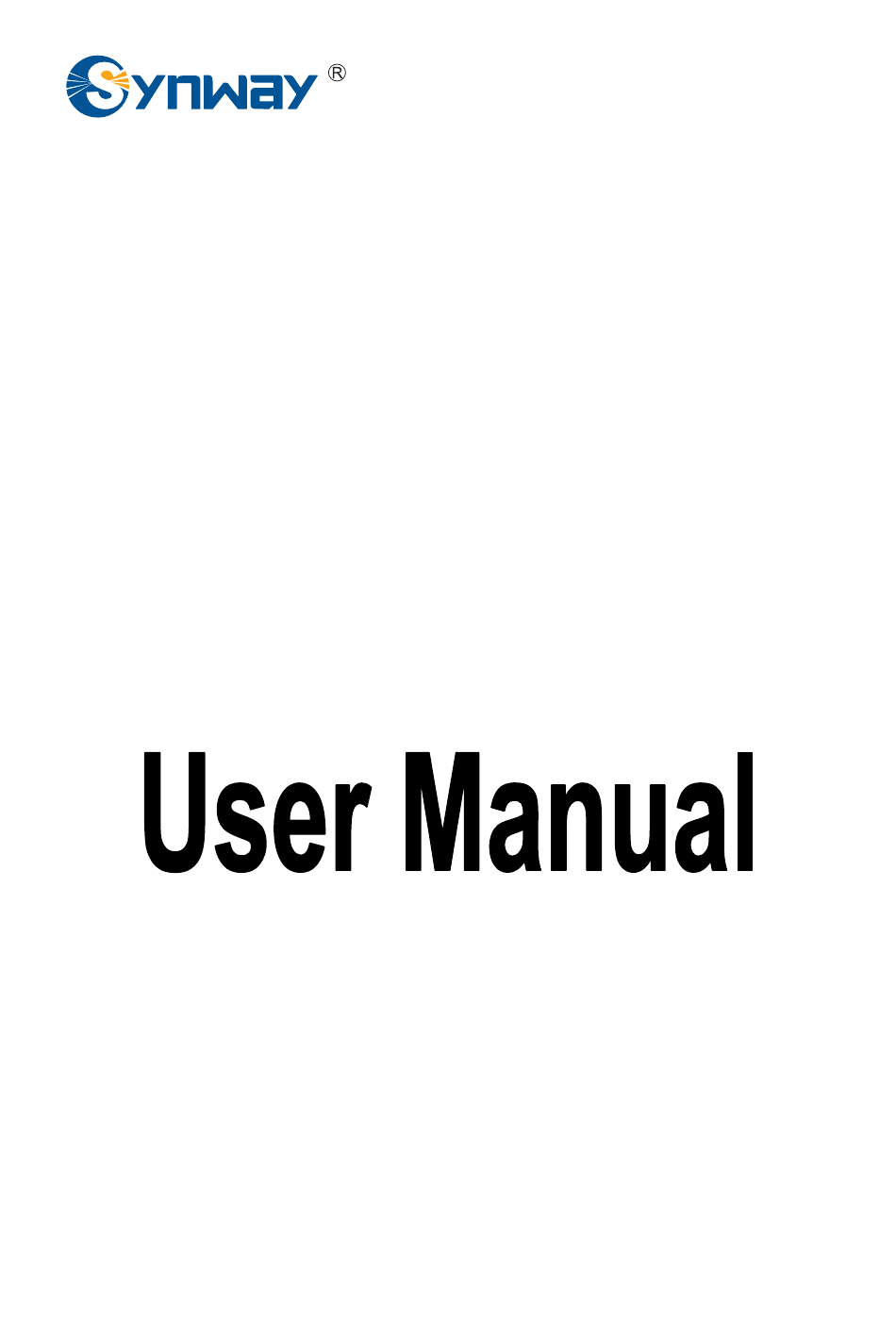

Page 1 Synway SMG Series Wireless Gateway SMG4004 SMG4008 SMG4016 SMG4032 Wireless Gateway Version 1.7.0 Synway Information Engineering Co., Ltd www.synway.net...
Page 2: Table Of Contents
Tone Generator.......................46 3.5.10 CDR Query ......................47 3.5.11 VPN ........................47 Wireless Settings ..................48 3.6.1 Basic Parameters ....................50 3.6.2 Wireless Param ......................55 3.6.3 Call Forwarding.......................57 3.6.4 Short Message......................58 3.6.5 IMEI ........................61 SMG Series Wireless Gateway User Manual (Version 1.7.0) Page i...
Page 3 3.11.13 TRACERT Test .....................115 3.11.14 Wireless Network Test ..................116 3.11.15 Access Control......................117 Appendix A Technical Specifications..........119 Appendix B Troubleshooting ............120 Appendix C VPN Certificate ..............121 Appendix D Technical/sales Support ..........122 SMG Series Wireless Gateway User Manual (Version 1.7.0) Page ii...
Page 4: Copyright Declaration
Moreover, Synway assumes no responsibility in obtaining permission and authorization of any third party patent, copyright or product involved in relation to the use of this document. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page iii...
Page 5: Revision History
New Revision Version 1.5.0 2016-12 New Revision Version 1.6.0 2017-03 New Revision Version 1.7.0 2017-05 New Revision Note: Please visit our website http://www.synway.net to obtain the latest version of this document. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page iv...
Page 6: Chapter 1 Product Introduction
Chapter 1 Product Introduction Thank you for choosing Synway SMG Series Wireless Gateway! The Synway SMG series wireless gateway products (hereinafter referred to as ‘wireless gateway’), as a part of the Synway gateway products, works mainly for connecting the wireless network with the VoIP network.
Page 7 WCDMA: B1/B5/B8 SMG4008-8LE GSM: B3/B8 SMG4004-4LE LTE Gateway SMG4032-32LC FDD LTE: B1/B3 SMG4016-16LC TDD LTE: B38/B39/B40/B41 TDSCDMA: B34/B39 WCDMA: B1 SMG4008-8LC CDMA2000 1X/EVDO: BC0 GSM: 900/1800MHz SMG4004-4LC Table 1-1 Model List SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 2...
Page 8: Typical Application
Call Forward Three options available: Unconditional, Busy, No Reply and Unreachable. Displays the CallerID. Provides the echo cancellation feature for a call conversation over the wireless Echo Cancellation port. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 3...
Page 9: Hardware Description
Support of Ping and Tracert tests based on WEB. SysLog Type Three options available: ERROR, WARNING, INFO. 1.3 Hardware Description The wireless gateway supports two LANs and adopts an external 12V power supply. See below SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 4...
Page 10 Channel Indicator Figure 1-2 SMG4008 Front View Power Network Port Figure 1-3 SMG4008 Rear View Alarm Indicator Run Indicator SIM Card Slot SIM Card Slot Indicator Figure 1-4 SMG4016 Front View SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 5...
Page 11 Auto MDI/MDIX Supported Built-in Link indicator and ACTIVE indicator. For more details, refer to 1.4 Indicator Info Amount: 4, 8, 16*4, 32*4 SIM Card Slot Network Supported: GSM, WCDMA, CDMA, VoLTE SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 6...
Page 12: Indicator Info
System is starting. Flash slowly Device is normal. Go out Device is normal. Upon startup: Device is normal. Alarm Indicator Light up In runtime: Device is abnormal. Flash Device is abnormal. Note: SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 7...
Page 13 During runtime, if the alarm indicator lights up or flashes, it indicates that the device goes abnormal. If you cannot figure out and solve the problem by yourself, please contact our technicians for help. Go to Appendix D Technical/sales Support to find the contact way. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 8...
Page 14: Chapter 2 Quick Guide
To use the wireless gateway, you need an external power supply. Insert it to the power interface of the wireless gateway and power it on with 100~240V AC. See the figure below: External Power Supply offers 12V voltage Figure 2-1 Wireless Gateway Power Connection SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 9...
Page 15 Refer to 3.8.2 Port Group for detailed instructions. You may use the default values of other configuration items and are required not to leave ‘Description’ empty. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 10...
Page 16 If you cannot figure out and solve the problem by yourself, please contact our technicians for help. Otherwise it may lead to a drop in performance or unexpected errors. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 11...
Page 17: Chapter 3 Web Configuration
‘System Tools  Change Password’ on the WEB interface. For detailed instructions, refer to 3.11.6 Change Password. After login, you can see the main interface as below. Figure 3-2 Main Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 12...
Page 18: Operation Info
MAC address of LAN. The three parameters from left to right are IP address, subnet mask and default IP Address gateway of LAN. DNS Server DNS server address of LAN. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 13...
Page 19: Port State
Port type on the device. So far, only GSM, WCDMA, CDMA and LTE types are Type supported. Displays the port state in real time. You can move the mouse onto the port state State icon for detailed state information. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 14...
Page 20: Call Count
Displays the connection status between the SIM card and the base station. Signal Displays the signal intensity of the wireless module. SIP Reg Status Displays the registration status of the port. 3.2.3 Call Count Figure 3-6 Call Count 1 Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 15...
Page 21 Synway Information Engineering Co., Ltd Figure 3-7 Call Count 2 Interface (4004/4008 Series) SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 16...
Page 22 Synway Information Engineering Co., Ltd SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 17...
Page 23: Sip Message Count
SIP messages that are sent/received or repeatedly sent/received during the period from the startup of the gateway service to the latest open or refresh of the interface. Click Refresh to SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 18...
Page 24: Quick Config
After configuration, click Back to go back to the Network Settings interface; click Next to enter the Port Settings interface. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 19...
Page 25 Figure 3-14 Quick Config-Completion Interface Click Back to go back to the Port Settings interface; click Finish to finish the Quick Config wizard and now the gateway can work normally with basic configuration. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 20...
Page 26: Voip Settings
SIP server, NAT Setting is used to configure the parameters for NAT, and Media Settings is to set the RTP port and the payload type. Figure 3-15 VoIP Settings SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 21...
Page 27: Sip
Sets whether to register the gateway as a whole. The default value is No. Only Register Gateway when this configuration is set to Yes can you see the configuration items SIP SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 22...
Page 28: Sip Compatibility
SIP servers and SIP messages will the gateway be compatible with. After configuration, click Save to save your settings into the gateway or click Reset to restore the configurations. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 23...
Page 29 Use Contact address within the LAN, the request message will be sent according to the source Address address; if the Contact field indicates an IP address belonging to the WAN, the SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 24...
Page 30: Sip Station
SIP Station on the VoIP Settings menu. Click ‘SIP Station’ to go into the SIP Station interface. By default, there is no available SIP station. See Figure 3-18 below. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 25...
Page 31 Used to set multiple SIP stations at the same time. After configuration, click Save to save the above settings into the gateway or click Close to cancel the settings. See Figure 3-20 for the applied SIP station information. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 26...
Page 32: Sip Server
SIP) and you will see the item SIP Server under the VoIP Settings menu. Click ‘SIP Server’ to go into the SIP Server interface. By default, there is no available SIP server. See Figure 3-22 below. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 27...
Page 33 Click Modify in the above figure to modify the configuration of the SIP server. See Figure 3-25. The configuration items on this interface are the same as those on the Add New SIP Server interface. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 28...
Page 34: Nat Setting
After configuration, click Save to save your settings into the gateway or click Reset to restore the configurations. Figure 3-26 NAT Setting Interface The table below explains the items shown in Figure 3-26. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 29...
Page 35 Rport so as to use them for the following Auto Detect NAT IP communication. By default, this feature is disabled. Note: This feature gets valid only when Rport is enabled. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 30...
Page 36: Media
RFC2833, In-band and Signaling, with the default value of RFC2833. Mode Payload of the RFC2833 formatted DTMF signals on the IP channel. Range of RFC2833 Payload value: 90~127, with the default value of 101. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 31...
Page 37 Set the minimum threshold for the energy processed by AGC. Signals below this Minimum Input threshold will not be processed by AGC. Range of value: -60~ -25, calculated by Energy dB, with the default value of -60. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 32...
Page 38: Advanced Settings
VPN makes use of the tunnel technology to transport the data, and the methods of user authentication and data encryption to prevent the data being read and distorted when they are transported on the public network. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 33...
Page 39: Network
After configuration, click Save to save the above settings into the gateway or click Reset to restore the configurations. After changing the IP address, you shall log in the gateway again using your new IP address. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 34...
Page 40: System Param
See Figure 3-30 for the System Parameters Setting interface. The table below explains the items shown in the above figure. Item Description WEB Port The port which is used to access the gateway via WEB. The default value is 80. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 35...
Page 41 Sets whether to restart the gateway regularly every day at the preset Restart Time. Daily Restart By default, this feature is disabled. Restart Time Sets the time to restart the gateway regularly. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 36...
Page 42: Service Config
Sets the maximum wait time waiting for the called party pickup during an outgoing for PSTN Outgoing call. Range of value: 5~120, calculated by s, with the default value of 60. Calls SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 37...
Page 43 Sets whether to enable the mode of non-linear processing. By default, this feature is enabled. Processing Fixed Window Size Sets the size of the window for the fixed cancellation. Moving Window Sets the size of the window for the moving cancellation. Size SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 38...
Page 44: Dialing Rule
Add New button on the bottom right corner. See Figure 3-33 for the dialing rule adding interface. Figure 3-33 Add New Dialing Rule SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 39...
Page 45 05, 06, 07, 08 or 09 Number 120。 Number 110, 112, 113, 114, 115, 116, 117, 11[0,2-9] 118 or 119 111xx Any 5-digit number starting with 111 123xx Any 5-digit number starting with 123 SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 40...
Page 46 See Figure 3-35 for the Dialing Rule Configuration interface under the Character mode. You can edit the dialing rule list to add a new one or modify an old one. The exact meaning of each rule element is described on the page. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 41...
Page 47: Function Key
Click Save to save your settings into the gateway. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 42...
Page 48: Cue Tone
By default, there is no available color ring on the gateway. See Figure 3-38. Click Upload to upload a new color ring manually. Follow Figure 3-39 to upload the required color ring file to the gateway. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 43...
Page 49 To delete a color ring, check the checkbox before the corresponding index in Figure 3-40 and click the Delete button. Check All means to select all available items on the current page; Uncheck SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 44...
Page 50: Qos
Sets the priority of the control premium for QoS. A control premium QoS with a Control Premium QoS bigger value has a higher priority. The value range is 0~63, with the default value of SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 45...
Page 51: Tone Generator
The value range of the tone energy herein above is -12~17, calculated by dB, with the default value of 0. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 46...
Page 52: Cdr Query
Click Query to query the CDR information corresponds to the above settings. Figure 3-45 CDR Information Interface Note: This page will appear only when the CDR feature is enabled (set in 3.5.2 System Param). 3.5.11 VPN SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 47...
Page 53: Wireless Settings
Short Message, IMEI (GSM&WCDMA series), USSD (GSM&WCDMA series), Email, SIM Card PIN Manage, BS Select (GSM series), Networking Setting (WCDMA series), AMD (CDMA series) and Hidden CallerID (WCDMA series). See Figure 3-48, Figure 3-49 and Figure 3-50. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 48...
Page 54 Synway Information Engineering Co., Ltd Figure 3-48 Wireless Settings for GSM Figure 3-49 Wireless Settings for WCDMA Figure 3-50 Wireless Settings for CDMA SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 49...
Page 55: Basic Parameters
Synway Information Engineering Co., Ltd 3.6.1 Basic Parameters Figure 3-51 Basic Parameters Setting Interface for GSM SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 50...
Page 56 Synway Information Engineering Co., Ltd Figure 3-52 Basic Parameters Setting Interface for WCDMA SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 51...
Page 57 Synway Information Engineering Co., Ltd Figure 3-53 Basic Parameters Setting Interface for CDMA SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 52...
Page 58 Remote Transmission. Sets the transmission intensity of the DTMF. The default values for the GSM DTMF Transmission Intensity gateway and the WCDMA gateway are respectively 6 and 1. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 53...
Page 59 FWD Unreachable. The former box is used to set the service No, Set/Cancel Service Number for while the latter one is to cancel the service No,. FWD on Busy, Set/Cancel SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 54...
Page 60: Wireless Param
See Figure 3-55 for the Wireless Parameters Configuration interface. Click Modify in Figure 3-55 to modify the properties of the corresponding module. See Figure 3-56 for the Wireless Parameters Modification interface. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 55...
Page 61 Voice Volume GSM is 70; the value for WCDMA is 3; the value for CDMA is 2. International Mobile Subscriber Identification Number, the unique identity of the SIM IMSI card. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 56...
Page 62: Call Forwarding
Displays the query status of the FWD settings. This configuration is unavailable for FWD Query Status CDMA module. Cancel All Cancels all the setting on call FWD service. This item will appear if none of the call SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 57...
Page 63: Short Message
It will take some time to apply the settings, and you can check the result in the ‘FWD Setting Status’ column. Click Reset to restore the configurations, or click Cancel to cancel the settings. Figure 3-58 Wireless Service Modification Interface 3.6.4 Short Message Figure 3-59 Short Message Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 58...
Page 64 Click Outbox in Figure 3-59 to go into the SMS Sending interface. See Figure 3-63. Such information as the send status of the SMS, the remote cell phone number, the time, and the content will be displayed on this page. Figure 3-63 Outbox Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 59...
Page 65 The table below explains the configuration items on the Send SMS interface. Item Description Port Select a port to send the SMS. Click Browse to select the required number file and then click Import to import this Number Import file. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 60...
Page 66: Imei
The default IMEI information will be displayed after clicking Initial Value in Figure 3-66, you can save and use it according to your requirement. Click Auto Modify to go into the IMEI auto modification interface (Figure 3-67). SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 61...
Page 67: Ussd
Item Description Default USSD Encoding Sets the default encoding format for USSD, two options available: ASCII and UCS2. Port Sets the port used to send the USSD request. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 62...
Page 68: Email
See Figure 3-69 for the Email Setting interface. The table below explains the configuration items on the Email Setting interface. Item Description Mailbox Account, Sets the account and password of the mailbox. Password SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 63...
Page 69: Sim Card
Sets whether to receive a return receipt telling the mail is sent successfully or not. After configuration, click Save to save the settings into the gateway or click Reset to reset the settings. 3.6.8 SIM Card Figure 3-70 SIM Card List Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 64...
Page 70 Sets whether to apply the above configurations to all ports. Click Modify to save the above settings into the gateway or click Reset to restore the configurations. Click Return to cancel the modification. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 65...
Page 71: Pin Manage
SIM card is locked. See Figure 3-74. Figure 3-74 SIM Card Locked PIN Required Click Modify in Figure 3-74, you are required to input PIN again, see Figure 3-75. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 66...
Page 72 PIN code three times, You are required to input the PUK to reset the PIN, see Figure 3-78. Figure 3-78 SIM Card Locked Need PIN and PUK Click Modify in Figure 3-78 to input PUK and reset a new PIN, see Figure 3-79. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 67...
Page 73: Bs Select
Click Modify in Figure 3-80 to go into the Lock BS interface, see Figure 3-81. Figure 3-81 Lock BS Interface The table below explains the items shown in the above figure. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 68...
Page 74: Networking Settings
All means to cancel all selections on the current page; Query means to query the information of all the base stations which can be connected. Note: This configuration is only supported by the GSM gateway. 3.6.11 Networking Settings Figure 3-82 Networking Management Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 69...
Page 75 Figure 3-84 Networking Settings Modification Interface The table below explains the items shown in the above figure. Item Description Port The number of the port corresponding to that on the wireless module. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 70...
Page 76: Amd
The table below explains the items shown in the above figure. Item Description AMD Detection for Sets whether to enable the AMD detection while making an outgoing call, with the default value of Disabled. Outgoing Call SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 71...
Page 77 Sets whether to detect other pickup signals. Pickup Signal Click Save to save the settings into the gateway, click Reset to restore the configurations. Note: This configuration is only supported by the CDMA module. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 72...
Page 78: Hidden Callerid
IP Auto Route is used to set the route for the remote end to call back; Blacklist is used to set a number table to forbid some incoming calls. Figure 3-87 Call Management Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 73...
Page 79: Balance
Via the Balance Query interface, you can query the balance of a designated cell phone number. Click Modify to modify the query mode. See the modification interface below. Figure 3-89 Query Mode Modification Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 74...
Page 80 See Figure 3-90. Figure 3-90 Balance Query Strategy Test Interface Enter the Keywords to Match and SMS Content, then click Query to query the information about the balance. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 75...
Page 81: Port Timer
Click Modify for each port in Figure 3-91 to modify the timer settings. See Figure 3-92. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 76...
Page 82 Sets the time count cycle for the port. Clear Sets the time node to clear the time count. Set Spent Call Time Sets the spent call time length of the port. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 77...
Page 83: Name List Timer
New in Figure 3-93 to add a timing rule. See Figure 3-94. Figure 3-94 Add Name List Timing Rule Interface The table below explains the configuration items shown in the above figure: Item Description Number Sets the number to be timed. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 78...
Page 84: Tel To Ip Auto Route
The TelIP Auto Route is used to set routes for the remote phone to call back the gateway. By default, there is no available auto route for a TelIP call, click Set to set it. See Figure 3-96. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 79...
Page 85 A only if B doesn’t answer the first call from A to B. Click Modify to save the settings into the gateway, click Reset to restore the configurations, or click Return to cancel the settings. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 80...
Page 86: Blacklist
Click Save to save the settings into the gateway, click Reset to restore the configurations. 3.8 Port Settings Port Settings includes two parts: Port and Port Group. See Figure 3-98. Figure 3-98 Port Settings SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 81...
Page 87: Port
When this item is set to No, the item Reg Status on the Port Settings interface (Figure Register Port 3-99) shows Unregistered; when this item is set to Yes, the item Reg Status shows Failed or Registered. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 82...
Page 88 Cancel to cancel the settings. Or you can click Batch to modify several pieces of port settings at the same time. See Figure 3-101 below for the Port Batch Modification interface. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 83...
Page 89 The rule for batch setting the SIP account, including Increase and Decrease two SIP Account Batch Rule options. SIP Account Batch Step Sets the increase or decrease step size of the SIP account in the batch setting. Size SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 84...
Page 90: Port Group
See Figure 3-103 for the port group adding interface. Note that a port which has been occupied by one port group cannot be chosen by others. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 85...
Page 91 IMS network is enabled. Username Note: This item appears only when IMS Network is enabled. Server Index The index of the sip server which will be quoted by the current port. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 86...
Page 92 All selected ports for a port group will be Port displayed in the Ports column in Figure 3-102. Note: When a port group contains multiple ports, the automatic call forward feature is invalid. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 87...
Page 93: Route Settings
Figure 3-102. 3.9 Route Settings Route Settings is used to specify the routing rules for calls on two directions: IPTel/IP and TelIP. See Figure 3-105. Figure 3-105 Route Settings SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 88...
Page 94: Routing Parameters
The IPTel/IP routing rule configuration has two modes: Standard and Character. Under the Standard mode, click Add New to add them manually. See Figure 3-108. You may use the default values of all the configuration items herein. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 89...
Page 95 When this feature is enabled, the gateway will route a call from IP to a Route by Number corresponding port based on its number. And the number of the port which this call SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 90...
Page 96 You can edit the routing rule list to add a new one or modify an old one. The exact meaning of each element of the rule is described on the page. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 91...
Page 97: Tel To Ip
Under the Standard mode, click Add New to add them manually. See Figure 3-112. You may use the default values of all the configuration items herein except for Destination IP and Destination Port. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 92...
Page 98 IP address and port number of the remote end to which the call will be routed. Destination Port After configuration, click Save to save the settings into the gateway or click Close to cancel the settings. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 93...
Page 99: Number Manipulation
Figure 3-114 TelIP Routing Rule Configuration Interface (Character) 3.10 Number Manipulation Number Manipulation includes four parts: IPTel/IP CallerID, IPTel/IP CalleeID, TelIP CallerID and TelIP CalleeID. See Figure 3-115. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 94...
Page 100: Ip To Tel/Ip Callerid
Add New button on the bottom right corner of the list in the above figure. See Figure 3-117 for the IPTel/IP CallerID manipulation rule adding interface. You may use the default values of all the configuration items herein. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 95...
Page 101 More information about each number manipulation rule, with the default value of Description default. IP address from where the call is initiated. This item can be set to a specific IP Call Initiator address or “*” which indicates any IP address. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 96...
Page 102 IPTel/IP CallerID manipulation rule modification interface. The configuration items on this  interface are the same as those on the Add IP Tel/IP CallerID Manipulation Rule interface. Note that the item Index cannot be modified. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 97...
Page 103 You can edit the number manipulation rule list to add a new one or modify an old one. The exact meaning of each element of the rule is described on the page. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 98...
Page 104: Ip To Tel/Ip Calleeid
Figure 3-121, Figure 3-122 for IPTel/IP CalleeID Manipulation interface. The configuration items  on this interface are the same as those on IP Tel/IP CallerID Manipulation Interface (Figure 3-116). Figure 3-121 IPTel/IP CalleeID Manipulation Interface(Standard) SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 99...
Page 105: Tel To Ip Callerid
Add New button on the bottom right corner of the list in the above figure. See Figure 3-124 for the TelIP CallerID manipulation rule adding interface. You may use the default values of all the other configuration items herein. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 100...
Page 106 ’,’ is used to separate characters or character ranges, representing alternatives.) For example, 057[1-3,6] represents the string 0571, 0572, 0573 or 0576. Also these items can be set to “*” which SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 101...
Page 107 TelIP CallerID manipulation rule modification interface. The configuration items on this interface  are the same as those on the Add Tel IP CallerID Manipulation Rule interface. Note that the item Index cannot be modified. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 102...
Page 108 The exact meaning of each element of the rule is described on the page. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 103...
Page 109: Tel To Ip Calleeid
Figure 3-128 for the TelIP CalleeID manipulation interface. The configuration items on this  interface are the same as those on Tel IP CallerID Manipulation Interface (Figure 3-123). Figure 3-127 TelIP CalleeID Manipulation Interface (Standard) SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 104...
Page 110: System Tools
See Figure 3-130 for the upgrade interface where you can upgrade the WEB, gateway service, kernel and firmware to new versions. Select the upgrade package “*.tar.gz” (The gateway will do SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 105...
Page 111 After a successful uploading of the file, the gateway will start to upgrade the system. See Figure 3-132 and you can learn the detailed upgrading information from the upgrade information box at the bottom. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 106...
Page 112: Signaling Capture
Capture, RTP Packet Capture. You can select either of them to start the capture according to your requirement. Click Start to start capturing packets. Click Stop to stop the capture. Click Download to download the captured packets. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 107...
Page 113: Data Recording
See Figure 3-134 for the Data Recording interface. Click Start to start the recording. Click Stop to stop the recording. Click Download to download the recorded data. 3.11.4 Call Log Figure 3-135 Call Log Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 108...
Page 114: Operation Log
IP channels, and Call from Port displays the call log information generated on the port you select. All the SIP related information will be displayed in SIP Log. 3.11.5 Operation Log Figure 3-137 Operation Log Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 109...
Page 115: Change Password
See Figure 3-139 for the backup and upload interface. To back up the configuration file to your PC, just click Backup. To upload a configuration file, select it via Browse… and click Upload. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 110...
Page 116: Factory Reset
3-141. The gateway will overwrite the current configurations with the uploaded data after restart. Click Cancel to cancel this upload directly. Figure 3-141 Configuration File Uploading Interface 3.11.8 Factory Reset Figure 3-142 Factory Reset Interface SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 111...
Page 117: Restart
5s. As the feature ‘Automatically restart the service if undetected’ is enabled, the service application will restart automatically if it is not detected by the gateway guard application. By default, this feature is enabled. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 112...
Page 118: Centralized Manage
Synway DCMS, giving an easy identification of the gateway in device grouping. It is valid only when Synway DCMS is selected The status of the connection between the gateway and the centralized Working Status management server. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 113...
Page 119: Ping Test
The information returned during the Ping test, helping you to learn the network Info connection status between the gateway and the destination address. After configuration, click Start to execute the Ping test; click End to terminate it immediately. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 114...
Page 120: Tracert Test
The information returned during the Tracert test, helping you to learn the detailed Info information about the jumps between the gateway and the destination address. After configuration, click Start to execute the Tracert test; click End to terminate it immediately. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 115...
Page 121: Wireless Network Test
Conversion Time Length The time length of the conversion Call Times The times of the testing call After configuration, click Start to execute the test; click Stop to terminate it immediately. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 116...
Page 122: Access Control
Inverse means to uncheck the selected items and check the unselected. To clear all access control commands at a time, click the Clear All button in Figure 3-149. Note: SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 117...
Page 123 2, If you add or modify or delete commands manually, don’t forget to click the Apply button to make your settings valid. However, if the gateway restarts or the configuration is leading-in, you need not click the Apply button and the commands will get valid automatically. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 118...
Page 124: Appendix A Technical Specifications
VoLTE network so that they provide quick Flow control unsupported call establishment and stay unaffected by the Base Station capacity. Note: Follow the above settings to configure the serial port; or it may work abnormally. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 119...
Page 125: Appendix B Troubleshooting
SIP devices or PSTN telephones, Q5. Which RTP codecs are supported by the gateway? At present, the supported RTP codecs are: G.711A, G.711u, G.729, G.723, G.722, AMR and iLBC. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 120...
Page 126: Appendix C Vpn Certificate
Note: Fill in the key copied from the file of ta.key </tls-auth> Step 3 Save the file after your examination or supplement and upload it to the device. Note that the suffix of the file must be .conf. SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 121...
Page 127: Appendix D Technical/Sales Support
Wechat QR Code: Scan the QR code to give attention to us Technical Support Tel: +86-571-88864579 Mobile: +86-18905817070 Email: techsupport@sanhuid.com Email: techsupport@synway.net MSN: synway.support@hotmail.com Sales Department Tel: +86-571-88860561 Tel: +86-571-88864579 Fax: +86-571-88850923 Email: sales@synway.net SMG Series Wireless Gateway User Manual (Version 1.7.0) Page 122...

This manual is also suitable for:

Smg4004 Smg4016 Smg4008 Smg4032

Sunway SMG Series User Manual

Copyright Declaration

Revision History

Chapter 1 Product Introduction

Chapter 2 Quick Guide

Chapter 3 WEB Configuration

Appendix A Technical Specifications

Appendix B Troubleshooting

Appendix C VPN Certificate

Appendix D Technical/Sales Support

Quick Links

Need help?

Questions and answers

Related Manuals for Sunway SMG Series

Summary of Contents for Sunway SMG Series

This manual is also suitable for:

Table of Contents
