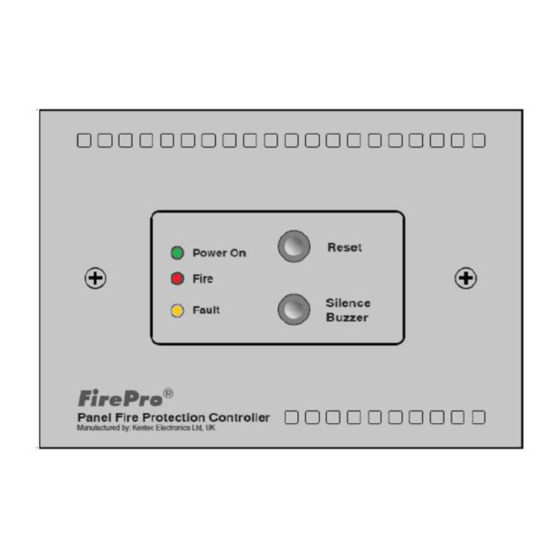

FPC-2
Fire Protection Controller
Operation and Installation Manual
Man-1144
Issue 4 June 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPC-2 and is the answer not in the manual?

Questions and answers

Related Manuals for FirePro FPC-2

Summary of Contents for FirePro FPC-2

  • Page 1 FPC-2 Fire Protection Controller Operation and Installation Manual Man-1144 Issue 4 June 2013...
  • Page 2 FPC-2 Fire Protection Controller Operation and Installation Manual Man-1144 Issue 04 June 2013 Man-1144 Panel protection controller Operation manual issue 04 Page 1 of 11...

  • Page 3: Table Of Contents

    4. Terminal details ..................5 4.1 24V IN/24V OUT ................5 4.2 DETECTION ..................5 4.3 Firepro Generators connections FIREPRO GEN1. TO FIREPRO GEN4..6 4.4 FIRE contacts for remote signalling ............8 4.5 FAULT contacts for remote signalling ............ 8 4.6 Connection to addressable modules via FIRE and FAULT contacts .....

  • Page 4: Overview

    The FPC-2 requires a battery backed 24V DC power supply capable of delivering 3A for a short period in order to operate the Aerosol Generators. Terminals are provided for incoming and outgoing connection of the 24V DC power supply.

  • Page 5: Installation

    3. Installation The front panel of the FPC-2 should be removed by loosening the two M4 fixing screws holding it in place and put in a safe place along with the screws for fitting later. The back box can then be used to mark the fixing position holes in the required place.

  • Page 6: Terminal Details

    4. Terminal details 4.1 24V IN/24V OUT These are the power supply terminals. The polarity of these terminals is very important. The 24V IN is for connection of the power from a previous unit or a power supply and the 24V OUT is for connection to further units. Use a minimum cable size of 1.5mm and a maximum length of 100 metres or a maximum cable size of 2.5mm...

  • Page 7: Firepro Generators Connections Firepro Gen1. To Firepro Gen4

    Figure 5- Connection to smoke detectors 4.3 Firepro Generators connections FIREPRO GEN1. TO FIREPRO GEN4. These terminals are for the connection of Aerosol Generators. Test lamps are FirePro provided in the terminals to allow testing of the system before connecting the FirePro generators.
  • Page 8 REMOTE ALARM REMOTE ALARM REMOTE ALARM FAN CUT OFF FAN CUT OFF FAN CUT OFF 230V AC LINEAR HEAT DETECTOR LINEAR HEAT DETECTOR LINEAR HEAT DETECTOR Figure 7- Example of system using volt free contacts to signal remote alarm Man-1144 Protection controller Operation manual issue 04 Page 7 of 11...

  • Page 9: Fire Contacts For Remote Signalling

    4.6 Connection to addressable modules via FIRE and FAULT contacts It is possible to configure the FPC-2 such that it will trigger a VMMI1000 addressable module with fire and fault signals. To make the FPC-2 compatible with an addressable input module, move jumpers J1 and J2 from their default positions (position A) to position B.
  • Page 10 ADDRESSABLE FIRE ALARM PANEL ADDRESSABLE ADDRESSABLE ADDRESSABLE INPUT MODULE INPUT MODULE INPUT MODULE FAN CUT OFF FAN CUT OFF FAN CUT OFF 230V AC LINEAR HEAT DETECTOR LINEAR HEAT DETECTOR LINEAR HEAT DETECTOR Figure - Example of connection to addressable fire alarm system Man-1144 Protection controller Operation manual issue 04 Page 9 of 11...

  • Page 11: Testing And Commissioning

    5. Testing and commissioning IMPORTANT – DISCONNECT ALL FIREPRO AEROSOL GAS GENERATORS BEFORE TESTING. With all Aerosol Gas generators disconnected from the panel, ensure FirePro that the test lamps that are supplied with the unit are fitted to terminals FireproGEN1, FireproGEN2, FireproGEN3 and FireproGEN4.

  • Page 12: Specifications

    6. Specifications Overall size – 188mm x 132mm x 47mm Construction – 1/2mm sheet steel Finish – Epoxy powder coat Colour - BS OO A 05 light grey textured Operating voltage – 19 to 30 Volts DC Standby current –18 milliamps Maximum current –...
  • Page 13 Third Party manufacturer to FirePro Systems. LIMITATION OF LIABILITY In no event, regardless of cause, shall FirePro Systems be liable for any indirect, special, incidental, punitive or consequential damages of any kind, whether arising under breach of contract, tort (including negligence), strict liability or otherwise, even if...
  • Page 14 FirePro Systems 6 Koumandarias Street, PO Box 54080, CY-3720 Limassol, Cyprus - EU Tel.: +357 25 379999 | Fax: +357 25 354432 | Email: mail@firepro.com www.firepro.com...
