Sony SRS SRS-D211 Operating Instructions

2-593-588-11(1)
Active Speaker System
Operating Instructions
Mode d'emploi
Manual de instrucciones
SRS-D211
 2005 Sony Corporation
Printed in Malaysia
Printed on 100 % recycled paper using VOC
(Volatile Organic Compound)-free vegetable oil based ink.
Package Contents
Subwoofer with wired controller (1)
Satellite speaker (2) Stand (2)
A
A
,
Reverse the stand to
change the speaker
Satellite speaker
Stand
angle.
Anchor hole
B
Hollow wall anchor
(ø 4 mm, not supplied)
,
5 mm
Note
Note
Do not hang anything on the
First, be sure to apply a bond
ø 7 mm
satellite speaker.
(anaerobic threadlocking material)
to the hollow wall anchor to
ø 4 mm
prevent the screw loosening.
9.5 mm or more
B
Satellite speaker
to LINE OUT or (rear)
headphones jack
(stereo mini-jack)
CD/MD Walkman*, etc.
to INPUT 2
to FRONT R jack to FRONT L jack
Connecting cord jack
(not supplied)
Connecting cord
(connected with controller) Controller (rear)
Subwoofer (rear)
to LINE OUT or
headphones jack
PC, etc.
to wall outlet
* "WALKMAN" is a registered
trademark of Sony Corporation to
represent Headphone Stereo products.
C
PC, CD or MD
Walkman, etc.
ON POWER
OFF
VOLUME
MIN BASS MAX
MIN MAX
PHONES
Subwoofer
Front speaker (Left) Controller
Front speaker (Right)
D
POWER
ON
POWER
OFF
VOLUME
MIN MAX VOLUME
BASS
MIN MAX
PHONES
PHONES
Controller
VOLUME: Controls total volume level.
BASS: Adjusts bass level (Subwoofer).
PHONES: Connect the headphones for personal listening.
On operation
English • Do not drive the speaker system with a continuous
wattage exceeding the maximum input power of the
system.
Before operating the unit, please read this manual
• Before connecting, turn off the speaker system, the
thoroughly and retain it for future reference.
PC and audio component to avoid damaging the
speaker system.
• The volume level should not be turned up to the
WARNING
point of distortion.
To prevent fire or shock hazard, do not expose the
• Although this system is magnetically shielded, do not
unit to rain or moisture.
leave recorded tapes, watches, personal credit cards
To avoid electrical shock, do not open the cabinet. Refer
or floppy disks using magnetic coding in front of the
servicing to qualified personnel only.
system for an extended period of time.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
If the TV picture or monitor display is
Do not place lighted candles on the apparatus.
magnetically distorted
To prevent fire or shock hazard, do not place objects
Although this system is magnetically shielded, there may
filled with liquids, such as vases, on the apparatus.
be cases that the picture on some TV sets/personal
Do not install the appliance in a confined space, computers may become magnetically distorted. In such a
such as a bookcase or built-in cabinet. case, turn off the power of the TV set/personal computer
once, and after 15 to 30 minutes turn it on again. In the
case of a personal computer, take appropriate measures,
CAUTION
such as data storage, before turning it off.
You are cautioned that any changes or modification not
When there seems to be no improvement, locate the
expressly approved in this manual could void your
system farther away from the TV set/personal
authority to operate this equipment.
computer. Furthermore, be sure not to place objects in
NOTICE FOR THE CUSTOMERS IN THE USA
which magnets are attached or used near the TV set/
personal computer, such as audio racks, TV stands, toys
etc. These may cause magnetic distortion to the picture
due to their interaction with the system.
On placement
• Do not set the speakers in an inclined position.
• Do not leave the system in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust, moisture, rain or mechanical shock.
• Do not install the satellite speaker anywhere other
than on a wall.
This symbol is intended to alert the user to
• Do not hang anything on the satellite speaker.
the presence of uninsulated "dangerous
voltage" within the product's enclosure
On cleaning
that may be of sufficient magnitude to
Do not use alcohol, benzene, or thinner to clean the
constitute a risk of electric shock to persons.
cabinet.
This symbol is intended to alert the user to
the presence of important operating and If you have any questions or problems concerning your
maintenance (servicing) instructions in the speaker system, please consult your nearest Sony
literature accompanying the appliance.
dealer.
Precautions
On safety
The nameplate indicating operating voltage, power
consumption, etc., is located on the rear exterior.
• Before operating the system, be sure that the
operating voltage of the system is identical with that
of your local power supply.
Where purchased Operating voltage
U.S.A./Canada 120 V AC, 60 Hz
European countries 220 – 230 V AC, 50 Hz
Other countries • 120 V AC, 60 Hz
• 220 – 230 V AC, 50 Hz
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.
• Unplug the system from the wall outlet if it is not to
be used for an extended period of time. To disconnect
the cord, pull the cord by grasping the plug. Never
pull the cord itself.
• Should any liquid or solid object fall into the system,
unplug the system's power cord and have the system
checked by qualified personnel before operating it
any further.
• The AC power cord should be changed only at a
qualified service shop.
• For efficient heat dissipation, ensure there is sufficient
space to the rear of the subwoofer. Also, avoid
placing objects on the unit.
• Do not insert your hand or any objects into the hole
of the subwoofer.
Installing the satellite speakers Using the headphones/
earphones
(See fig. A)
The satellite speaker can be used either placed on a desk Connect the headphones/earphones to the PHONES
or attached to a wall. jack on the controller.
Note
When you use the satellite speaker on a desk
Turn off the MEGA BASS or BASS BOOST (Walkman,
(See fig. A-A)
etc.) function as it may cause audible distortion.
By attaching the stand to the satellite speaker, it can be
placed on a desk.
Troubleshooting
1
Slide the stand into the slot at the
bottom of the satellite speaker.
Should you encounter a problem with your speaker
The stand allows you to adjust the satellite
system, check the following list and take the indicated
speaker to the desired angle. measures. If the problem persists, consult your nearest
Sony dealer.
2
Ensure the stands are locked.
There is no sound from the speaker system.
Push the stand into the slot until a "click" sound is
• Make sure all the connections have been correctly
heard.
made.
Note
• Make sure the VOLUME dial and the each speaker's
Do not put your finger into the slot of the satellite
volume dial on the controller have been turned up
speaker when you lock the stand. It may cause an
properly.
injury to your finger.
• Make sure the connected component has been turned
up properly.
• Check if the headphones are connected. If they are,
disconnect them.
The sound is distorted.
• Turn down the volume level on the connected
component. Or, if the connected component has a
BASS BOOST function, set it to off.
• Rotate BASS on this unit to reduce the bass volume.
• Turn VOLUME on this unit down to reduce the
volume.
There is hum or noise in the speaker output.
• Make sure all the connections have been correctly
When you use the satellite speaker attached
made.
to a wall (See fig. A-B)
• Make sure none of the audio components are
The satellite speaker can be attached to a wall. Follow
positioned too close to the TV set.
the Notes (below) to install safely. Improper installation
The sound has suddenly stopped.
may result in the speaker falling and causing bodily
Make sure all the connections have been correctly
injury or damage to the speaker or other object.
made.
1
Secure the hollow wall anchor in the wall
The brightness of the POWER indicator is
— refer to the illustration. unstable.
The brightness of the POWER indicator may become
Notes
unstable when the volume is turned up. This is not a
• Confirm wall thickness is sufficient. A
malfunction.
minimum thickness of 9.5 mm is recommended
for plasterboard.
• Use the specified clamp (hollow wall anchor,
Specifications
not supplied) when attaching to plasterboard.
• Refer to the supplied operating instructions
using a hollow wall anchor. Speaker section
• Use wall anchors of at least 20 kg hanging
Satellite speaker
capacity.
Speaker system Full range, magnetically shielded
• Refer to the instruction supplied with hollow
Speaker units 5.7 cm, cone type
wall anchor. Enclosure type Closed type
• Requires ø 4 mm hollow wall anchor. Impedance 4 Ω
Cord length 2 m
• Set up the head of a hollow wall anchor 5 mm
from the wall. Subwoofer
• Apply a bond (anaerobic threadlocking Speaker system Woofer
material) to the hollow wall anchor to prevent Speaker units 12 cm, cone type
Enclosure type Bass reflex
the screw loosening.
Impedance 8 Ω
2
Attach the satellite speaker to the wall.
Amplifier section
Insert the wall anchor in the anchor hole of the
5 W (10% T.H.D., 1 kHz, 4 Ω)
Rated output
satellite speaker.
(Satellite speaker)
25 W (10% T.H.D., 100 Hz, 8 Ω)
Notes
(Subwoofer)
• Detach the stand from the satellite speaker
Input Connecting cord with stereo mini
before attaching to the wall.
plug (2m) × 1
• Ensure that the satellite speaker is securely
Stereo mini jack × 1 (INPUT 2)
attached to the wall before use.
Input impedance 4.7 kΩ (at 1 kHz)
Stereo mini jack × 1 (PHONES)
Output
General
Hooking up the system
Dimensions (w/h/d) Approx. 50 × 140 × 99 mm
(2 × 5 5 / × 4 in.) (Controller)
8
(See fig. B) Approx. 98 × 124 × 84 mm
(3 7 / × 5 × 3 3 / in.) (Satellite speaker,
8 8
on a desk)
1 Approx. 98 × 98 × 83 mm
Connect the satellite speakers to the
× 3 × 3
(3 7 / 7 / 3 / in.) (Satellite
8 8 8
subwoofer.
speaker, attached to a wall)
Confirm the location of the satellite speakers, and Approx. 163 × 267 × 301 mm
then connect to their respective jacks. × 10 × 11
(6 1 / 5 / 7 /
2 8 8
Mass Approx. 134 g (5 oz.) (Controller)
2
Connect the controller to the source Approx. 294 g (10 oz.)
(Satellite speaker)
equipment.
Approx. 4.2 kg (9 lb. 4 oz.)
– PC, etc.: (Subwoofer)
Connect the controller and the LINE OUT or Cord length 2 m (Controller to subwoofer)
headphones jack of a PC, etc. with the connecting 2 m (Power cord)
Power consumptions 18 W
cord (connected with the controller). For details,
refer to the operating instructions of the PC.
Optional accessories
– CD/MD Walkman, etc.:
Connecting cord RK-G136, RK-G138
Connect the INPUT 2 jack of the controller and the
Plug adaptor PC-236MS
LINE OUT or headphones jack of a CD/MD
Walkman, etc. The connecting cord is not supplied Design and specifications are subject to change without
with this system.
notice.
Note
Turn on either of the connected equipment to
listen to its sound.
3
Connect the subwoofer to the wall
outlet.
4

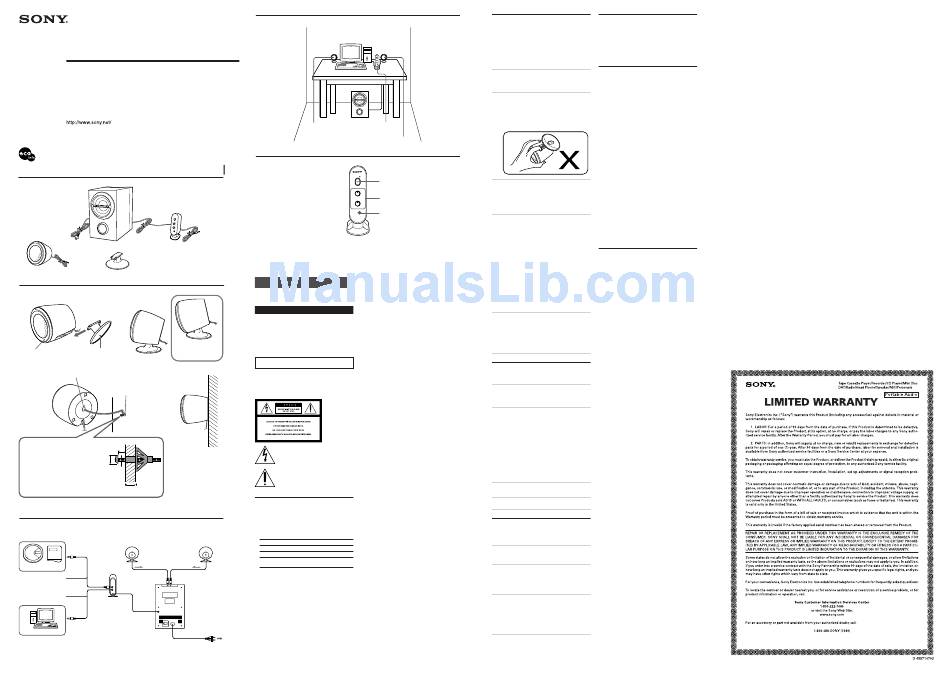

Position the speakers. (See fig. C)
Listening to the sound
(See fig. D)
First, turn down the volume on the controller. The
volume should be set to minimum before you begin
playing the programme source.
1
Set the POWER switch to ON on the
controller.
The POWER indicator lights up.
2
Turn on the desired equipment
connected to the controller.
Note
Do not turn on both connected equipments as it
may cause double sound.
3
Adjust the VOLUME control on the
controller.
You can adjust the volume of the subwoofer and
each satellite speaker.
When connecting to the headphone output, also
adjust the volume of the connected component.
After listening, set the POWER switch to OFF.
The POWER indicator goes off.
This warranty is valid only in the United States.
in.) (Subwoofer)
