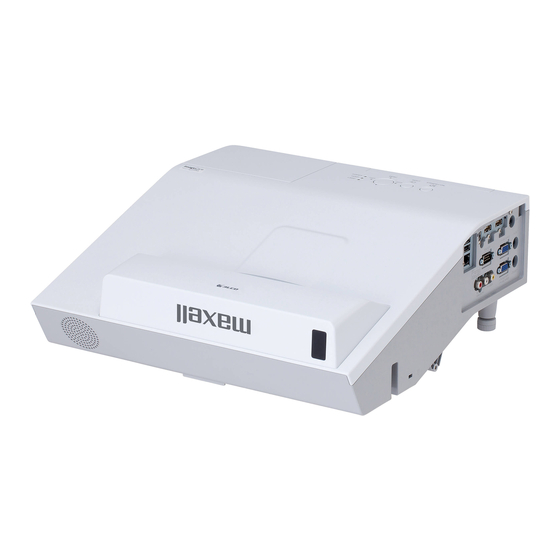

LCD Projector
MC-AW3506/MC-AW3006
MC-AX3506/MC-AX3006
User's Manual (concise)
Thank you for purchasing this projector.
This is the basic manual on the product. Visit our website to get the detailed
manuals and the latest information on the product. Check them before using the
product, for safe use and utilization of the product.
Our website: See the attached sheet.
WARNING
product. After reading them, store them in a safe place for future reference.
NOTE • In this manual, unless any comments are accompanied, "the
manuals" means all the documents provided with this product, and "the product"
means this projector and all the accessories came with the projector.
Contents
............................................ 2
Important safety instruction ..............................2
Regulatory notices .............................. 3
recycling systems .............................................4
Contents of package........................... 4
Arrangement ....................................... 5
Connecting power supply ................... 8
Using the cable cover ......................... 9
Turning on the power ........................ 11
Operation .......................................... 12
Turning off the power ........................ 14
3
Replacing the lamp ........................... 15
internal clock battery ..................... 19
................................... 20
.. 17
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-AW3506 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxell MC-AW3506

Summary of Contents for Maxell MC-AW3506

  • Page 1: Table Of Contents

    LCD Projector MC-AW3506/MC-AW3006 MC-AX3506/MC-AX3006 User's Manual (concise) Thank you for purchasing this projector. This is the basic manual on the product. Visit our website to get the detailed manuals and the latest information on the product. Check them before using the product, for safe use and utilization of the product.

  • Page 2: Entries And Graphical Symbols Explanation

    First of all Entries and graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Please know their meanings beforehand, and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.

  • Page 3: Regulatory Notices

    Regulatory notices About Electro-Magnetic Interference In CANADA In the US, and other places where the FCC regulations are applicable Declaration of Conformity: See the attached sheet. following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Only For European Union And Countries With Recycling Systems

    Regulatory notices (continued) Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems The above mark is in compliance with the Waste Electrical and Electronic requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available.

  • Page 5: Arrangement

    Arrangement Refer to tables T-1 or T-3 F-1 and F-2 at the end of this manual to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen. Screen size (diagonal) Projection distance (±8%) Screen height (±8%) b1 , b2...

  • Page 6: Connecting With Your Devices

    Arrangement (continued) Connecting with your devices Make sure that all the devices are suitable to be connected with this product, and F-3 to F-5 at the back of this manual. • When AUTO is selected for the COMPUTER IN1 or COMPUTER IN2 port in COMPUTER IN of the INPUT menu, that port will accept component video signals.
  • Page 7 Connecting with your devices (continued) NOTICE ports of the projector are recessed. NOTE • If a loud feedback noise is produced from the speaker, move the microphone away from the speaker. • This projector doesn't support plug-in power for the microphone. Fastening the adapter cover Use the supplied adapter cover to prevent the off easily and prevention from burn injury.

  • Page 8: Connecting Power Supply

    Connecting power supply Put the connector of the power cord into the AC (AC inlet) of the projector. outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange. Please remember that when the DIRECT POWER ON function activated, the connection of the power supply make the projector turn on.

  • Page 9: Using The Cable Cover

    Using the cable cover Utilize the cable cover as the guard and blind for the connecting parts. Insert the three knobs on the cable cover into the knobs Pass the cables through the holes on the bottom of the cable cover. screw CAUTION prevent damage to the cables.

  • Page 10: Preparing For The Remote Control

    Preparing for the remote control Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 11: Turning On The Power

    Turning on the power STANDBY/ON button POWER indicator and correctly connected to the projector and the outlet. Make sure that the POWER indicator is steady orange. Press the STANDBY/ON button on the INPUT CALIBRATION projector or the remote control. ASPECT AUTO ACCENTUALIZER HDCR FOCUS...

  • Page 12: Adjusting The Projector's Elevator

    Adjusting the projector's elevator The projector has 2pcs Rear foot for horizontals and inclinations. Spacers on the each elevator foot are installed at the time of shipment, and projector is in a condition to be able to just project. If necessary, detach the spacer, and the elevator feet can be manually twisted to make more precise adjustments.
  • Page 13 Focusing ASPECT button Use the FOCUS + and FOCUS - buttons on FOCUS - button INPUT CALIBRATION the projector or remote control to adjust the FOCUS + button ASPECT AUTO ACCENTUALIZER HDCR screen focus. D-ZOOM - button FOCUS D-ZOOM PAGE VOLUME MAGNIFY MYBUTTON...

  • Page 14: Turning Off The Power

    Operation (continued) NOTE • The ASPECT button does not work when no proper signal is inputted. an operation is made. This is not a malfunction. Turning off the power STANDBY/ON button POWER indicator Press the STANDBY/ON button on the projector or the remote control. The message “Power off?”...

  • Page 15: Replacing The Lamp

    Replacing the lamp the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended. To prepare a new lamp, make contact with your dealer and tell the lamp type number.
  • Page 16 Replacing the lamp (continued) HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
  • Page 17 as possible. Type number : UX37191 come together with a replacement lamp for this projector. Turn the projector off, and unplug the power cord. Allow cover. It is recommended to leave the coarse meshed Intake vent while holding it so it will not be sucked in. Use a vacuum or heavily soiled, replace them with new ones.

  • Page 18: Caring For The Projection Window

    Caring for the projection window of display quality. Please take care of the projection window, being cautious of handling. Turn the projector off and unplug the power cord from the power outlet. And cool the projector down by leaving it for a while as it is. Use an air blower to blow away dust on the projection window before wiping.

  • Page 19: Installing Or Replacing The Internal Clock Battery

    If the internal clock starts to malfunction, try to replace the battery. Use the following type of battery, and follow the steps below. MAXELL, Part No. CR2032 or CR2032H Turn the projector off, and unplug the power cord. After making sure that the projector has cooled adequately, slowly turn over the projector, so that the bottom is facing.
  • Page 20 Item Product name Liquid crystal projector MC-AX3506, MC-AX3006: 786,432 pixels (1024 horizontal x 768 vertical) Liquid Crystal Panel MC-AW3506, MC-AW3006: 1,024,000 pixels (1280 horizontal x 800 vertical) Lamp Speaker Power supply Power consumption AC 100-120V:360 W, AC 220-240V:350W 0 ~ 40°C (Operating) Temperature range 35 ~ 40°C (The brightness of the lamp is reduced automatically.)

  • Page 21: Troubleshooting - Warranty And After-Service

    Troubleshooting - Warranty and after-service If an abnormal operation (such as smoke, strange odor or excessive sound) should occur, stop using the projector immediately. “Operating Guide” and “Network Guide”, and run through the suggested checks. If this does not resolve the problem, please consult your dealer or service company.
  • Page 22 Troubleshooting - Warranty and after-service (continued) End User License Agreement for the Projector Software • Software in the product consists of the plural number of independent software such software modules. produced. • And there exist our copyright and intellectual property for each of such software and related items including but not limited to the software related documents.
