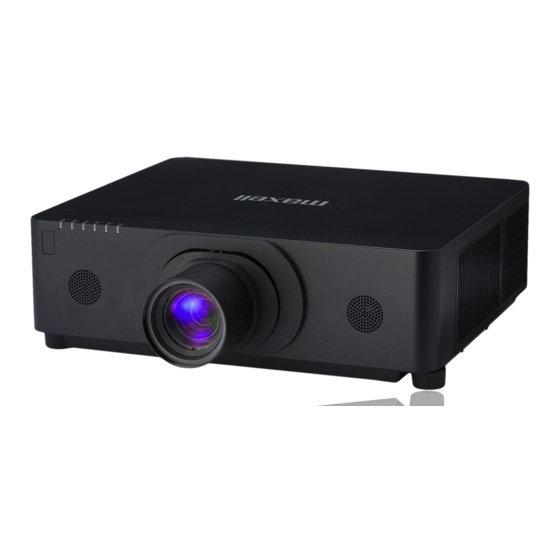

LCD Projector
MC-WU8701W/MC-WU8701B
MC-WU8601W/MC-WU8601B
MC-WX8751W/MC-WX8751B
MC-WX8651W/MC-WX8651B
MC-X8801W/MC-X8801B
User's Manual (concise)
Thank you for purchasing this projector.
This is the basic manual on the product. Visit our website to get the detailed
manuals and the latest information on the product. Check them before using the
product, for safe use and utilization of the product.
Our website: See the attached sheet.
WARNING
product. After reading them, store them in a safe place for future reference.
NOTE • In this manual, unless any comments are accompanied, "the manuals"
means all the documents provided with this product, and "the product" means this
projector and all the accessories came with the projector.
Contents
............................................ 2
Important safety instruction ..............................2
Regulatory notices .............................. 3
recycling systems .............................................4
Contents of package........................... 4
Installing the lens unit ......................... 5
Arrangement ....................................... 6
Connecting power supply ................. 12
Turning on the power ........................ 13
Adjusting the lens position ................ 14
Displaying the picture ....................... 15
Turning off the power ........................ 16
Replacing the lamp ........................... 17
internal clock battery....................... 21
............. 10
................................... 22
.. 19
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-WU8701W and is the answer not in the manual?

Questions and answers

Related Manuals for Maxell MC-WU8701W

Summary of Contents for Maxell MC-WU8701W

  • Page 1: Table Of Contents

    LCD Projector MC-WU8701W/MC-WU8701B MC-WU8601W/MC-WU8601B MC-WX8751W/MC-WX8751B MC-WX8651W/MC-WX8651B MC-X8801W/MC-X8801B User's Manual (concise) Thank you for purchasing this projector. This is the basic manual on the product. Visit our website to get the detailed manuals and the latest information on the product. Check them before using the product, for safe use and utilization of the product.

  • Page 2: Entries And Graphical Symbols Explanation

    First of all Entries and graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Please know their meanings beforehand, and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.

  • Page 3: Regulatory Notices

    Regulatory notices About Electro-Magnetic Interference This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.

  • Page 4: Only For European Union And Countries With Recycling Systems

    Regulatory notices (continued) Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems The above mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available.

  • Page 5: Installing The Lens Unit

    Installing the lens unit See the manual of the optional lens. Preparing for the remote control Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 6: Arrangement

    Arrangement Refer to tables T-1 to T-3 at the back of this manual as well as the following to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen. Screen size Projection distance Projector top (from the front of the...
  • Page 7 Arrangement (continued) Secure a clearance of 50cm or greater when installing the projectors side by installation mentioned above. 50cm or greater Secure a clearance of 30cm or greater between the intake vents and walls when installing the projector in portrait mode. As for the required clearance not Intake 30cm or greater vents...
  • Page 8 Arrangement (continued) WARNING Install the projector where you can access the power outlet easily. Install the projector in a stable horizontal position. • manufacturer. Read and keep the manuals of the accessories used. • required. • Do not put the projector on its side, front or rear position. in the manual.

  • Page 9: Connecting With Your Devices

    Connecting with your devices the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the projector and the devices are turned off, perform the gures F-1 to F-5 at the back of this manual.
  • Page 10 Fastening the adapter cover prevention. USB wireless adapter: Temperature range: 0 ~ 45°C(operating) Loosen the screw on the bottom left of the WIRELESS port. WIRELESS DC5V 0.5A Insert the tab of the cover into the hole at the upper right of the WIRELESS port in the direction of the arrow.

  • Page 11: Attaching The Terminal Cover

    Attaching the terminal cover Terminal cover Insert the two claws of the Terminal cover into the hole of in the direction of the arrow and pull it forward. NOTE • Do not attach the Adapter cover when attaching the Terminal cover.

  • Page 12: Connecting Power Supply

    Connecting power supply Put the connector of the power cord into the AC (AC inlet) of Power the projector. cord Push the Cord Stopper until it is caught by the hook. Cord Power Stopper Cord outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

  • Page 13: Turning On The Power

    Turning on the power projector and the outlet. POWER indicator Make sure that the POWER indicator is lighted in steady orange. Then remove ON button the lens cover. Press the STANDBY/ON button on the projector or the ON button on the remote control.

  • Page 14: Adjusting The Projector's Elevator

    Adjusting the projector’s elevator Lengthening or shortening the length of the elevator feet shifts the projection position and the projection angle. Turn the elevator feet each to adjust their length. max. 30mm 5° 5° WARNING lengthened exceeding the limit may come off and drop the projector down, and result in an injury or damaging the projector.

  • Page 15: Displaying The Picture

    Displaying the picture Activate your signal source. Turn the signal source on, and make it send the signal to the projector. VOL + / - buttons Use the VOL + / - buttons to adjust the volume. Press the INPUT button on the projector. INPUT button Each time you press the button, the projector switches its input port in turn.

  • Page 16: Turning Off The Power

    Turning off the power POWER indicator Press the STANDBY/ON button on the projector or the STANDBY button on STANDBY button the remote control. The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON or STANDBY button again while the message appears.

  • Page 17: Replacing The Lamp

    Preparation of a new lamp and early replacement are recommended. To prepare a new lamp, make contact with your dealer and tell the lamp type number. Type number : DT01881 <MC-WU8701W/B, MC-WX8751W/B, MC-X8801W/B> DT01871 <MC-WU8601W/B, MC-WX8651W/B> Turn the projector off, and unplug the power cord.
  • Page 18 Replacing the lamp (continued) HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
  • Page 19 Please check and cle purchasing a new one. Type number : UX40821 Turn the projector off, and unplug the power down. Use a vacuum cleaner on and around the take it off. Press up slightly the bottom side knobs off. Extra of the projector and the outer side of the knobs...
  • Page 20 in the EASY MENU. (1) Press the MENU button to display a menu. cursor buttons, then press the cursor (or the ENTER / the RESET) button. A dialog will appear. WARNING projector. the projector. NOTE • • or turn off the projector, to prevent the internal heat level rising.

  • Page 21: Installing Or Replacing The Internal Clock Battery

    If the internal clock starts to malfunction, try to replace the battery. Use the following type of battery, and follow the steps below. MAXELL, Part No. CR2032 or CR2032H Turn the projector off, and unplug the power cord. Allow the After making sure that the projector has cooled adequately, slowly turn over the projector, so that the bottom is facing.
  • Page 22 Liquid Crystal Panel 1,024,000 pixels (1280 horizontal x 800 vertical) MC-WU8701W/B, MC-WU8601W/B: 2,304,000 pixels (1920 horizontal x 1200 vertical) MC-WU8601W/B, MC-WX8651W/B: Lamp MC-WU8701W/B, MC-WX8751W/B, MC-X8801W/B: Speaker 8W x2 MC-WU8601W/B, MC-WX8651W/B: AC100V-120V: 5.2A, AC220V-240V: 2.5A Power supply/ Rated current MC-WU8701W/B, MC-WX8751W/B, MC-X8801W/B: AC100V-120V: 5.9A, AC220V-240V: 2.9A...
  • Page 23 Item COMPUTER IN ......D-sub 15 pin mini jack x1 HDMI 1 ........... HDMI 2 ........... HDBaseT ............RJ45 jack x1 ......DisplayPort ........DisplayPort connector x1 MONITOR OUT ......D-sub 15 pin mini jack x1 VIDEO ............... RCA jack x1 Ports AUDIO IN1 .......

  • Page 24: Troubleshooting - Warranty And After-Service

    Troubleshooting - Warranty and after-service If an abnormal operation (such as smoke, strange odor or excessive sound) should occur, stop using the projector immediately. of User’s Manual - Operating Guide and Network Guide, and run through the suggested checks. If this does not resolve the problem, please consult your dealer or service company.
  • Page 25 Troubleshooting - Warranty and after-service (continued) End User License Agreement for the Projector Software • Software in the product consists of the plural number of independent software modules and there exist our copyright and/or third party copyrights for each of such software modules.
