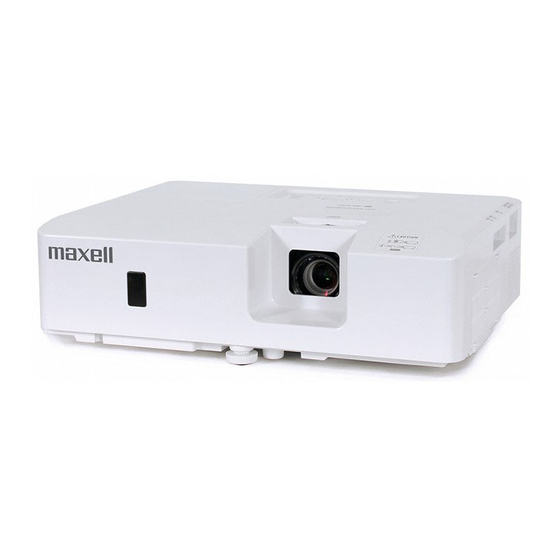

LCD Projector
MC-EX353E/MC-EX303E
User's Manual (detailed)
Operating Guide – Technical
Supported signals for COMPUTER IN
Resolution (H x V)
720 x 400
640 x 480
800 x 600
832 x 624
1024 x 768
1152 x 864
1280 x 768
1280 x 800
1280 x 1024
1366 x 768
1440 x 900
1600 x 900
1400 x 1050
1600 x 1200
1920 x 1080
Signal mode
TEXT
VGA (60Hz)
VGA (72Hz)
VGA (75Hz)
VGA (85Hz)
SVGA (56Hz)
SVGA (60Hz)
SVGA (72Hz)
SVGA (75Hz)
SVGA (85Hz)
Mac 16" mode
XGA (60Hz)
XGA (70Hz)
XGA (75Hz)
XGA (85Hz)
1152 x 864 (75Hz)
WXGA (60Hz)
1280 x 800 (60Hz)
SXGA (60Hz)
SXGA (75Hz)
SXGA (85Hz)
WXGA (60Hz)
WXGA+ (60Hz)
WXGA++ (60Hz)
SXGA+ (60Hz)
UXGA (60Hz)
Full HD (60Hz)
H. frequency
V. frequency
(kHz)
37.9
31.5
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
49.7
48.4
56.5
60
68.7
67.5
47.7
49.7
64
80
91.1
47.7
55.9
60
65.2
75
67.5
1
Rating
(Hz)
85
VESA
59.9
VESA
72.8
VESA
75
VESA
85
VESA
56.3
VESA
60.3
VESA
72.2
VESA
75
VESA
85.1
VESA
74.5
60
VESA
70.1
VESA
75
VESA
85
VESA
75
VESA
60
VESA
60
VESA
60
VESA
75
VESA
85
VESA
59.8
VESA
59.9
VESA
60
VESA
60
VESA
60
VESA
60
VESA
QM00082-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MC-EX353E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxell MC-EX353E

Summary of Contents for Maxell MC-EX353E

  • Page 1 LCD Projector MC-EX353E/MC-EX303E User's Manual (detailed) Operating Guide – Technical Supported signals for COMPUTER IN Resolution (H x V) Signal mode H. frequency V. frequency Rating (kHz) (Hz) 720 x 400 TEXT 37.9 VESA 640 x 480 VGA (60Hz) 31.5 59.9...
  • Page 2 Supported signals Supported signals for HDMI Resolution (H x V) Signal mode H. frequency V. frequency Rating (kHz) (Hz) 720 x 400 TEXT 37.9 VESA 640 x 480 VGA (60Hz) 31.5 59.9 VESA VGA (72Hz) 37.9 72.8 VESA VGA (75Hz) 37.5 VESA VGA (85Hz)
  • Page 3 Supported signals NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC. • Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
  • Page 4 Connection to the ports Connection to the ports NOTICE input ports of the projector are recessed. COMPUTER IN1, COMPUTER IN2/MONITOR OUT D-sub 15pin mini shrink jack <Computer signal> <Component video signal> • Video signal: -Y, Analog, 1.0±0.1Vp-p with composite sync, -Cb/Pb, Analog, 0.7±0.1Vp-p, -Cr/Pr, Analog, 0.7±0.1Vp-p System: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60...
  • Page 5 Connection to the ports (continued) VIDEO RCA jack HDMI 18 16 14 12 10 • Type :HDMI connector 19 17 15 13 11 Signal Signal Signal T.M.D.S. Data2 + T.M.D.S. Data0 Shield T.M.D.S. Data2 Shield T.M.D.S. Data0 - 16 SDA T.M.D.S.
  • Page 6 Connection to the ports (continued) AUDIO IN AUDIO OUT RCA jack x2 Stereo mini jack x1 QM00082-1...
  • Page 7 Connection to the ports (continued) CONTROL D-sub 9pin plug 9 8 7 • About the details of RS-232C communication, 5 4 3 2 1 please refer to the next chapter. Signal Signal Signal (No connection) (No connection) Ground (No connection) (No connection) QM00082-1...
  • Page 8 Connection to the ports (continued) To input component video signal to COMPUTER IN ports D-sub plug RCA plugs RCA connectors COMPONENT VIDEO OUT VCR/DVD/Blu-ray Disc player To input component video signal to the COMPUTER IN1 or COMPUTER IN2 port of the projector, use a RCA to D-sub cable or adapter. For about the pin description of the required cable or adapter, refer to the descriptions about COMPUTER IN1 and COMPUTER IN2...
  • Page 9 RS-232C Communication RS-232C Communication When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication command table ( 12). Connection Turn off the projector and the computer. Connect the projector's CONTROL port and the computer's RS-232C port Turn the computer on, and after the computer has started up turn the projector RS-232C...

  • Page 10: Communication Settings

    RS-232C Communication (continued) Communication settings 1. Protocol 19200bps,8N1 2. Command format ("h" shows hexadecimal) Byte Number Command Header Data Header Data Setting Action Type code size code Packet Action <SET>Change setting to (aH) 01h 00h (bH) (cH) <GET>Read projector (aH) 02h 00h (bH) 00h 00h <INCREMENT>...

  • Page 11: Response Code / Error Code

    RS-232C Communication (continued) 3. Response code / Error code ("h" shows hexadecimal) (1) ACK reply : 06h When the projector receives the Set, Increment, Decrement or Execute (2) NAK reply : 15h When the projector cannot understand the received command, the projector returns the error code.
  • Page 12 RS-232C Communication command table RS-232C Communication command table Command Data Names Operation Type Header Action Type Setting Code Turn off BE EF 06 00 2A D3 01 00 00 60 00 00 Turn on BE EF 06 00 BA D2 01 00 00 60 01 00...
  • Page 13 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 89 D2 02 00 03 20 00 00 BRIGHTNESS Increment BE EF 06 00 EF D2 04 00 03 20 00 00 BE EF 06 00 3E D3...
  • Page 14 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 38 FF 02 00 94 30 00 00 User Gamma Point 5 Increment BE EF 06 00 5E FF 04 00 94 30 00 00 Decrement...
  • Page 15 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 04 F5 02 00 B5 30 00 00 COLOR TEMP Increment BE EF 06 00 62 F5 04 00 B5 30 00 00 OFFSET R Decrement...
  • Page 16 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 0D 83 02 00 00 21 00 00 V POSITION Increment BE EF 06 00 6B 83 04 00 00 21 00 00 Decrement BE EF...
  • Page 17 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code AUTO BE EF 06 00 86 D8 01 00 22 20 00 00 NORMAL BE EF 06 00 16 D9 01 00 22 20 01 00 HDMI RANGE BE EF 06 00...
  • Page 18 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code BE EF 06 00 CD CC 02 00 60 20 00 00 VOLUME - Increment BE EF 06 00 AB CC 04 00 60 20 00 00 COMPUTER IN1 Decrement...
  • Page 19 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code ENGLISH BE EF 06 00 F7 D3 01 00 05 30 00 00 FRANÇAIS BE EF 06 00 67 D2 01 00 05 30 01 00 DEUTSCH BE EF 06 00...
  • Page 20 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code MyScreen BE EF 06 00 FB CA 01 00 00 30 20 00 ORIGINAL BE EF 06 00 FB E2 01 00 00 30 40 00 BLUE BE EF 06 00...
  • Page 21 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code NORMAL BE EF 06 00 FE 78 01 00 20 22 00 00 SEARCH SKIP - SKIP BE EF 06 00 6E 79 01 00 20 22 01 00 COMPUTER IN1...
  • Page 22 RS-232C Communication command table (continued) Command Data Names Operation Type Header Action Type Setting Code COMPUTER IN1 BE EF 06 00 3A 33 01 00 00 36 00 00 COMPUTER IN2 BE EF 06 00 FA 31 01 00 00 36 04 00 HDMI BE EF...
