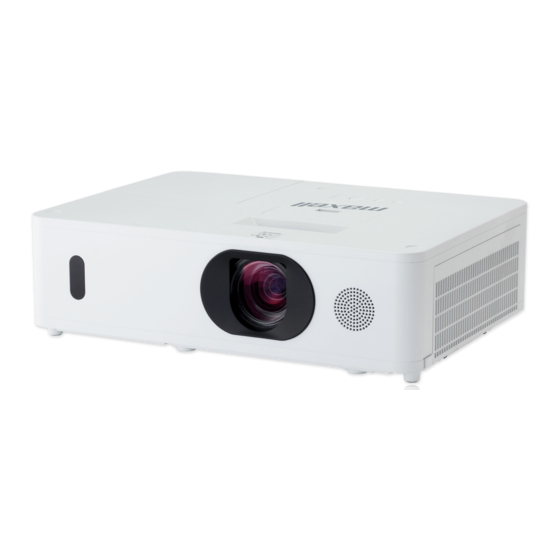

LCD Projector
MC-WU5506M
MC-WX5506M
User's Manual (detailed) Network Guide
Thank you for purchasing this product.
This manual is intended to explain only the network function. For proper use of this
product, please refer to this manual and the other manuals for this product.
WARNING
product. After reading them, store them in a safe place for future reference.
Features
This projector has the network function that brings you the following main features.
Web Control : allows you to monitor and control the projector through a network from a
computer, smartphone and tablet device. (
Network Presentation : allows the projector to project computer, smartphone and tablet
device images transmitted through a network. (
Screen Mirroring : This projector can display the screen of computer, smartphone, and
tablet devices compatible with Miracast
My Image : allows the projector to store up to four still images and project them. (
Messenger : allows the projector to display text sent from a computer through a network.
99)
(
Network Bridge : allows you to control an external device through the projector from a
computer. (
102)
NOTE
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
39)
86)
91)
.(
®
1
98)
QM00123-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-WU5506M and is the answer not in the manual?

Questions and answers

Related Manuals for Maxell MC-WU5506M

Summary of Contents for Maxell MC-WU5506M

  • Page 1 LCD Projector MC-WU5506M MC-WX5506M User's Manual (detailed) Network Guide Thank you for purchasing this product. This manual is intended to explain only the network function. For proper use of this product, please refer to this manual and the other manuals for this product.

  • Page 2: Table Of Contents

    Contents Contents Caution ..................5 1. Network Function ..............6 1.1 Web Control ....................6 1.2 Network Presentation ................. 7 1.3 Screen Mirroring ..................8 1.4 My Image Function ..................9 1.5 Messenger Function ................. 10 ................11 1.7 Other Functions ..................12 1.7.1 E-mail Alerts ........................
  • Page 3 Contents 3.1.8 Date/Time Settings ......................62 3.1.9 Security Settings ......................64 3.1.9.1 User Account ......................64 3.1.9.2 Network Control ......................65 3.1.9.3 Network Presentation ....................66 3.1.9.4 Moderator Control ..................... 67 3.1.9.5 SNMP ........................68 3.1.9.6 MAC Address Filter ....................69 3.1.10 Projector Control ......................
  • Page 4 Contents 6. My Image Function ..............98 7. Messenger Function ............... 99 7.1 Outline ...................... 99 7.2 Display Style ................... 100 8. Network Bridge Function ............. 102 8.1 Connecting devices ................102 8.2 Communication setup ................103 8.3 Communication port ................103 8.4 Transmission method ................

  • Page 5: Caution

    Caution Caution • If you connect the projector to an existing network, consult a network administrator before setting server addresses. • Attaching an optional wireless adapter to the projector enables wireless connection. Follow the cautions below when you use the wireless adapter. [Restriction on plugging and unplugging the wireless adapter (option)] power of the projector and pull out the power cord’s plug from the outlet.

  • Page 6: Network Function

    1. Network Function 1. Network Function This chapter describes the outline of network function. 1.1 Web Control Connecting the projector and the computer via the network, remote control and status monitoring of the projector can be performed by Web browser. Three types of interface, “Projector Web Control”, “Crestron e-Control ”...

  • Page 7: Network Presentation

    1. Network Function 1.2 Network Presentation This projector can display the screen of computer, smartphone and tablet device Application Application ® ® Windows ® ® Android QM00123-1...

  • Page 8: Screen Mirroring

    1. Network Function 1.3 Screen Mirroring This projector supports a wireless display. This projector can display the screen of computer, smartphone and tablet devices compatible with Miracast ® ® ® Windows 8.1/10 Miracast ® Windows 8.1/10 Android Android QM00123-1...

  • Page 9: My Image Function

    1. Network Function 1.4 My Image Function The projector can display still images transferred via the network. Use the application to transfer the image data. Transfer image data Display image data (ex. QM00123-1...

  • Page 10: Messenger Function

    1. Network Function 1.5 Messenger Function The projector can display text data transferred via the network on the screen and play back audio data inside the projector. It is possible to store up to 12 text data. Transfer text data Display text data (ex.
  • Page 11 1. Network Function 1.6 Network Bridge Function mutual conversion of a network protocol and a serial interface. projector via wireless or wired LAN is able to control an external device via RS-232C communication using the projector as a network device. WIRELESS port Wireless...

  • Page 12: Other Functions

    1. Network Function 1.7 Other Functions 1.7.1 E-mail Alerts 106) or detected an error. ( 1.7.2 Projector Management using SNMP The SNMP (Simple Network Management Protocol) enables to manage the projector information, which is a failure or warning status, from the computer on to use this function.

  • Page 13: Connection To The Network

    2. Connection to the network 2. Connection to the network The connection method of wireless LAN and wired LAN is as follows. Item Description Standard IEEE802.11a/b/g/n/ac Channel 36/40/44/48ch (W52) Encryption WPA2-PSK(AES/TKIP), WPA-PSK(AES/TKIP), WEP(64/128bit) *1: Available channels may vary according to area. *2: WEP is only for INFRASTRUCTURE mode.

  • Page 14: Connection Via Miracast

    2. Connection to the network Connection via Miracast ® Set the following when connecting the projector to the device compatible with Miracast by wireless connection and projecting an image. ® 1) Turn on the projector. 2) Press the MENU button on the remote control or the control panel of the projector.

  • Page 15: Connection Via Wireless Lan

    2. Connection to the network NOTE • MIRRORING is set to OFF by default. • The connection procedure of Miracast varies depending on a device. ® Refer to the manual of the device compatible with Miracast for details. ® • Even if the device is compatible with Miracast , it may not connect to the ®...
  • Page 16 2. Connection to the network NOTE • If using a wireless network function, please make sure that NETWORK - WIRELESS NETWORK setting is ON. • Network settings can also be changed in Network Settings of Projector Web Control. • Wireless LAN initial settings for the projector are as follows. Mode: Simple Access Point IP address: 192.168.10.1 Subnet Mask: 255.255.255.0...

  • Page 17: Connection In Simple Access Point Mode

    2. Connection to the network 2.2.1 Connection in Simple Access Point Mode Set the following when connecting the projector and the computer in Simple Access Point mode. Projector setting 1) Turn on the projector. 2) Press the MENU button on the remote control or the control panel of the projector.

  • Page 18: Connection In Infrastructure Mode

    2. Connection to the network 2.2.2 Connection in Infrastructure Mode Set the following when connecting the projector and the computer in Infrastructure mode. Projector setting 1) Turn on the projector. 2) Press the MENU button on the remote control or the control panel of the projector.
  • Page 19 2. Connection to the network Connection in Infrastructure Mode (continued) SSID SCAN LIST function The connection can be set up by selecting from SSID SCAN LIST without setting SSID and ENCRYPTION in WIRELESS SETUP. The procedure of connecting by SSID SCAN LIST is as follows. 1) Select SSID SCAN LIST in WIRELESS SETUP on NETWORK - NETWORK SETUP.

  • Page 20: Connection Via Wired Lan

    2. Connection to the network Connection via wired LAN The connection via wired LAN is available. Set wired LAN for the projector by following the instructions of your network administrator when connecting to the existing network. Connection setup of wired LAN 1) Connect the projector to the computer via a hub with a LAN cable (CAT-5e or higher).
  • Page 21 2. Connection to the network [About IP address] The Network address portion of the IP address setting on your computer must be the same as the setting on the projector. Also, the entire IP address on the computer must not overlap with that of the other devices on the same network, including the projector.

  • Page 22: Applications

    2. Connection to the network 2.4 Applications The latest version of the application software can be downloaded from our website. For iOS/Android Network Presentation software, consult our website for the Application Hardware and Software ® Refer to the manual of the application for details.

  • Page 23: Network Menu

    2. Connection to the network 2.5 NETWORK Menu Remember that incorrect network settings on this to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access to the following functions. NOTE , in WIRED NETWORK menu.
  • Page 24 2. Connection to the network Item Description Displays the network information of the projector. • MIRRORING INFORMATION • WIRELESS INFORMATION • WIRED INFORMATION NETWORK • OTHER INFORMATION INFORMATION NOTE GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server. Switches ON/OFF of wireless network function.
  • Page 25 2. Connection to the network Item Description Switches ON/OFF of Screen Mirroring function. If MIRRORING is OFF, the following items cannot be changed. • DISPLAY MODE • CONNECTION MODE MIRRORING • WPS NOTIFICATION NOTE NETWORK • If MIRRORING is ON, the projector SETUP cannot be connected to the device by Simple Access Point or Infrastructure.
  • Page 26 2. Connection to the network Item Description Selects the WPS connection method. • PIN ® Connects to the device compatible with Miracast by PIN code. PIN code is displayed on the screen of the projector. CONNECTION MODE NETWORK SETUP MIRRORING SETUP (continued) ®...
  • Page 27 2. Connection to the network Item Description NOTE are not saved if Menu disappears before • • This function cannot be set when MIRRORING is ON. Switches between SIMPLE ACCESS POINT and NETWORK SETUP INFRASTRUCTURE. Select the mode of the network communication WIRELESS system.
  • Page 28 2. Connection to the network Item Description Searches available wireless network and displays the list of SSID. You can select SSID to connect from the list. (1) SSID on available wireless network is displayed button. NETWORK SETUP SSID SCAN WIRELESS LIST SETUP (continued)
  • Page 29 2. Connection to the network Item Description Icon Description The projector is connecting to the wireless network. The wireless network is encrypted. The intensity of radio wave. (2) Select SSID that you want to connect and ENTER button. The display to enter the encryption key appears if SSID is encrypted.
  • Page 30 2. Connection to the network Item Description (3) The OSD below is displayed while the connection is in progress. The keys other than RESET button are not available while the connection is in progress. The connection process is interrupted when pressing the RESET button.
  • Page 31 2. Connection to the network Item Description SSID SCAN LIST (continued) This function is not available in SIMPLE ACCESS POINT mode. obtained or not. DHCP NETWORK This function is not available in SIMPLE ACCESS SETUP POINT mode. WIRELESS [MODE:SIMPLE ACCESS POINT] SETUP (continued) ADDRESS...
  • Page 32 2. Connection to the network Item Description Enter SSID by using software keyboard. Refer SSID 35) for how to use to PROJECTOR NAME ( software keyboard. When this function is set to OFF, SSID of the SSID projector is not displayed in wireless connection BROADCAST list of the device.
  • Page 33 2. Connection to the network Item Description WIRELESS Access Point function. FREQ. Select the channel of the wireless LAN to be used NETWORK while MODE ( 27) is set to SIMPLE ACCESS SETUP POINT. WIRELESS The channels 1 to 11 are available. SETUP CHANNEL (continued)
  • Page 34 2. Connection to the network Item Description are saved after NOTE APPLY after changing the settings. NETWORK automatically SETUP obtained or not. DHCP WIRED SETUP OFF. ADDRESS OFF. SUBNET MASK DEFAULT OFF. GATEWAY DNS SERVER when DHCP is OFF. (PRIMARY SECONDARY) When you get the time via the network, specify SNTP server with IP address or domain name.
  • Page 35 2. Connection to the network Item Description Any name can be set to the projector to identify it on the network. (1) Select the PROJECTOR NAME and press the button. The PROJECTOR NAME dialog will be displayed. Use displayed software keyboard to enter PROJECTOR NAME.
  • Page 36 2. Connection to the network Item Description It is not available by default. If you want to use it, download MULTIMEDIA Refer to 10. Firmware update of the network function for the Selecting this item displays the MY IMAGE menu. Use the application to transfer the image data.
  • Page 37 2. Connection to the network Item Description Discovery on/off. AMX D.D. When ON is selected, the projector can be (AMX Device detected by controllers of AMX connected Discovery) to the same network. For the details of AMX Device Discovery, visit the AMX website. URL: http://www.amx.com/ Crestron Connected...
  • Page 38 2. Connection to the network Item Description To use Network Presentation, an exclusive application is 86) for the details of Refer to 4. Network Presentation ( Network Presentation. QUIT PRESENTER MODE QUIT Screen Mirroring. MODERATOR MODE OTHER OPERATION DISCONNECT NETWORK ®...

  • Page 39: Web Control

    3. Web Control 3. Web Control You can adjust or control the projector via a network from a web browser on a computer connected to the same network. You can control the projector, collect the status such as lamp time, and set e-mail or schedule, etc.
  • Page 40 3. Web Control ® Crestron e-Control is a control ® interface using a web browser provided by Crestron Electronics, Inc.. Crestron e-Control can control and ® monitor the projector. NOTE • Crestron e-Control is created using Flash . You need to install ®...
  • Page 41 3. Web Control Access from Web browser 1) Please start a Web browser of device. 2) Enter the projector's IP address into URL input box of the Web browser as the example below, and then press the Enter key. Example: If the IP address of the projector is set to 192.168.1.10. “http://192.168.1.10/”...

  • Page 42: Projector Web Control

    3. Web Control 3.1 Projector Web Control 3.1.1 Login To use the Projector Web Control function, you need to login with your user name and password. and password. The default is as follows. Login window User name Administrator Password Enter your user name and password, and then click the [OK]. If you login successfully, the screen below will be displayed.
  • Page 43 3. Web Control 3.1 Projector Web Control (continued) Displaying the Main menu and Option menu. In the Header area of the upper part of the screen, the following operations are available. Item Description Displays the Main menu. The detailed screen is displayed by clicking on the item in the Main menu.

  • Page 44: Network Information

    3. Web Control 3.1 Projector Web Control (continued) 3.1.2 Network Information Displays the network setting information of the projector. QM00123-1...

  • Page 45: Network Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.3 Network Settings 3.1.3.1 Common Setup When changing the settings, click the [Network Restart] button after clicking the NOTE • If you connect the projector to an existing network, consult a network administrator before setting server addresses.
  • Page 46 3. Web Control 3.1 Projector Web Control - Network Settings (continued) Item Description Wireless Network Switches ON/OFF of wireless network function. Projector Name sysLocation (SNMP) SNMP. sysContact (SNMP) when using SNMP. Switches ON/OFF of AMX Device Discovery. AMX D.D. When ON is selected, the projector can be detected (AMX Device and controlled by AMX device connected to the same Discovery)

  • Page 47: Mirroring Setup

    3. Web Control 3.1 Projector Web Control - Network Settings (continued) 3.1.3.2 Mirroring Setup When changing the settings, click the [Network Restart] button Item Description Switches ON/OFF of Screen Mirroring function. Mirroring If the Mirroring is ON, the projector cannot be connected to the device by Simple Access Point or Infrastructure.
  • Page 48 3. Web Control 3.1 Projector Web Control - Network Settings (continued) Item Description Selects the WPS connection method. [PIN] ® Connects to the device compatible with Miracast by PIN code. PIN code is displayed on the screen of the projector. Connection Mode ®...

  • Page 49: Wireless Setup

    3. Web Control 3.1 Projector Web Control - Network Settings (continued) 3.1.3.3 Wireless Setup When changing the settings, click the [Network Restart] button after clicking the Item Description Mode Switches wireless connection mode. Switches ON/OFF of Encryption Lock. When Encryption Lock is set to ON, these settings Encryption Lock cannot be changed by the menu of the projector.
  • Page 50 3. Web Control 3.1 Projector Web Control - Network Settings (continued) 1. Simple Access Point settings Item Description Access Point mode. SSID *1 When this function is set to OFF, SSID of the projector SSID Broadcast is not displayed in wireless connection list of the device.
  • Page 51 3. Web Control 3.1 Projector Web Control - Network Settings (continued) 2. Infrastructure settings Item Description Infrastructure mode. [DHCP ON] Enables DHCP. [DHCP OFF] Disables DHCP. and DNS sever (Primary / Secondary). SSID *1 Encryption Selects data encryption method. Inputs the WEP key. Either ASCII characters or hexadecimal numbers can be used.

  • Page 52: Wired Setup

    3. Web Control 3.1 Projector Web Control - Network Settings (continued) 3.1.3.4 Wired Setup When changing the settings, click the [Network Restart] button after clicking the Item Description [DHCP ON] Enables DHCP. [DHCP OFF] Disables DHCP. and DNS sever (Primary / Secondary). QM00123-1...

  • Page 53: Other Setup

    3. Web Control 3.1 Projector Web Control - Network Settings (continued) 3.1.3.5 Other Setup projector. Item Description ® Crestron e-Control *1 *1 Refer to chapter “3.2 Crestron e-Control ” for the details of the Crestron ® e-Control ® QM00123-1...

  • Page 54: Port Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.4 Port Settings When changing the settings, click the [Network Restart] button after clicking the Item Description Port Open When disabling unused port function, the access from an illegal user can be prevented. Authentication Trap Address *1 This item can be set not only by IP address but also by...

  • Page 55: Mail Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.5 Mail Settings When changing the settings, This setting can be restored to the initial setting when clicking the [Reset] button. Sends a test e-mail when clicking [Send Test Mail]. Item Description Send Mail The contents of the e-mail can be edited on each screen of the Alert Settings.
  • Page 56 3. Web Control 3.1 Projector Web Control - Mail Settings (continued) 1. SMTP / POP Server Item Description server address. Server Address *1 This item can be set not only by IP address but also by domain name. Port Number or the POP server.

  • Page 57: Alert Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.6 Alert Settings Refer to chapter “9.1 E-mail Alerts” for the details of the above errors/warnings. When changing the settings, click the [Apply] projector. This setting can be restored to the initial setting when clicking the [Reset] button. Item Description Alarm Time *1...

  • Page 58: Schedule Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.7 Schedule Settings 3.1.7.1 Schedule Management Refer to chapter “9.3 Event Scheduling” for the details of the schedule settings. to perform a schedule, and select the program number to use. (month/day). Click the [Apply] button to save the settings in the projector.

  • Page 59: Program List

    3. Web Control 3.1 Projector Web Control - Schedule Settings (continued) 3.1.7.2 Program List Displays the event information registered in each program. Click the [Back] button to go back to the Schedule Management screen. QM00123-1...

  • Page 60: Program Edit

    3. Web Control 3.1 Projector Web Control - Schedule Settings (continued) 3.1.7.3 Program Edit Edits the program. Select the program number to edit, and set the event and time to execute. Click the [Register] button to add the event to a selected program number. Click the [Delete] button to delete an event.

  • Page 61: Program Copy

    3. Web Control 3.1 Projector Web Control - Schedule Settings (continued) 3.1.7.4 Program Copy Select the original program number (dropdown list of the upper part of the screen) and program number (dropdown list of the lower part of the screen). Click the [Copy to] button to copy the program.

  • Page 62: Date/Time Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.8 Date/Time Settings When changing the settings, click the [Network Restart] button after clicking the [Apply] Item Description Current Date Current Time Time Difference Time. (continued on next page) QM00123-1...
  • Page 63 3. Web Control 3.1 Projector Web Control - Date/Time Settings (continued) 1. Daylight Saving Time Select the checkbox when using daylight saving time. Item Description Start Month Week Time Month Week Time 2. SNTP Item Description Server Address This item can be set not only by IP address but also by domain name.

  • Page 64: Security Settings

    3. Web Control 3.1 Projector Web Control (continued) 3.1.9 Security Settings 3.1.9.1 User Account screen. When changing the settings, click the [Network Restart] button after clicking the [Apply] Item Description User Name Password Re-enter Password NOTE • Please do not forget the user name and password. QM00123-1...

  • Page 65: Network Control

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.2 Network Control When changing the settings, click the [Network Restart] button after clicking the [Apply] Item Description Password Re-enter Password NOTE • This password is used in common for the function using the following communication ports.

  • Page 66: Network Presentation

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.3 Network Presentation Network Presentation. When changing the settings, click the [Network Restart] button after clicking the [Apply] Item Description Password When the password is set to blank, the authentication is invalid.

  • Page 67: Moderator Control

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.4 Moderator Control Screen Mirroring. When changing the settings, click the [Network Restart] button after clicking the [Apply] Item Description Displays the user name for login to Moderator Control User Name *1 screen.

  • Page 68: Snmp

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.5 SNMP When changing the settings, click the [Network Restart] button after clicking the [Apply] Item Description Community Name QM00123-1...

  • Page 69: Mac Address Filter

    3. Web Control 3.1 Projector Web Control - Security Settings (continued) 3.1.9.6 MAC Address Filter QM00123-1...
  • Page 70 3. Web Control 3.1 Projector Web Control - Security Settings (continued) When changing the settings, click the [Network Restart] button after clicking the [Apply] Item Description Filter function. MAC Address Filter When this function is enabled, select whether to use Inputs MAC address of the wireless device that you MAC Address Filter List want to restrict a connection.

  • Page 71: Projector Control

    3. Web Control 3.1 Projector Web Control (continued) 3.1.10 Projector Control Menu varies depending on the model. NOTE • If the settings are changed in the menu or by the remote control while changing the settings on this screen, the display and the actual setting may not match.

  • Page 72: Remote Control

    3. Web Control 3.1 Projector Web Control (continued) 3.1.11 Remote Control The menu operation and the input source switching can be performed on this screen like a remote control. Menu varies depending on the model. NOTE • Holding down a button is not supported on this screen. The button should be clicked repeatedly to operate continuously.

  • Page 73: Projector Status

    3. Web Control 3.1 Projector Web Control (continued) 3.1.12 Projector Status Displays the information of each status. Displayed information varies depending on the model. QM00123-1...

  • Page 74: Connection Test

    3. Web Control 3.1 Projector Web Control (continued) 3.1.13 Connection Test Item Description Click the [Execute] button to test the connection Destination IP Address after entering IP address to connect to. Display example of the connection succeeded Display example of the connection failed NOTE •...

  • Page 75: Network Restart

    3. Web Control 3.1 Projector Web Control (continued) 3.1.14 Network Restart Restarts the network connection. NOTE • When the projector has connected successfully with the same network setting as before it restarts, the Network Information screen is automatically displayed after having restarted. The following screen is displayed if the projector cannot connect to the network due to the change of network setting, etc.

  • Page 76: Firmware Update

    3. Web Control 3.1 Projector Web Control (continued) 3.1.15 Firmware Update Item Description Model Name Displays the model name of the projector. Firmware Version Update Network [Browse...] button. Firmware [Update Firmware] button. NOTE Firmware update of network function“ for the details of the update procedure. The update by Web Control cannot be performed during the update by using a •...

  • Page 77: Crestron E-Control

    3. Web Control ® 3.2 Crestron e-Control The Main window as shown above is enabled User Password on the Tools window 81), a dialog prompting you to enter the password as shown on the right will be displayed, and no operation is enabled until you have entered the password.
  • Page 78 3. Web Control ® 3.2 Crestron e-Control (continued) NOTE • In any of the following cases, Crestron e-Control cannot be used. ® Set Crestron to on and enable Crestron e-Control , then close the web browser. ® Next, restart the web browser, followed by entering the projector's IP address. •...

  • Page 79: Main Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.1 Main window You can operate the basic controls of the projector on this screen. NOTE • If the projector is in the standby mode, only the [Power] button can be operated. 1.
  • Page 80 3. Web Control ® 3.2 Crestron e-Control - Main window (continued) Button Description Freeze Contrast Adjusts the contrast setting. Brightness Adjusts the brightness setting. Color Adjusts the color setting. Sharpness Adjusts the sharpness setting. Magnify to magnify. Auto Performs the automatic adjustment. Blank 4.

  • Page 81: Tools Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.2 Tools window ® between the projector and Crestron control system. Click the [Exit] button to return to the Main window. NOTE • If two-byte characters are used, the input text or numbers cannot be set correctly.
  • Page 82 3. Web Control ® 3.2 Crestron e-Control - Tools window (continued) 3. Projector Item Description DHCP Enables DHCP. IP Address Subnet Mask Default Gateway DNS Server To apply the settings, click the [Send] button. 4. User Password starting e-Control , select the checkbox. ®...

  • Page 83: Info Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.3 Info window Displays the current settings and status of the projector. Click the [Exit] button to return to the Main window. 1. Projector Information Item Description Projector Name Displays the projector name settings. Location Displays the location name of the projector.

  • Page 84: Help Desk Window

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.4 Help Desk window ® ® Button Description Send Sends a message. Checks the received message. QM00123-1...

  • Page 85: Emergency Alert

    3. Web Control ® 3.2 Crestron e-Control (continued) 3.2.5 Emergency Alert sends ® ® out an alert message, it will be displayed on the screen. You can reply to the alert message via a chat format. Input a message in the box below the alert message, and click the [Send] button.

  • Page 86: Network Presentation

    4. Network Presentation 4. Network Presentation 4.1 Outline The screen of computer, smartphone, and tablet device can be transferred via network and can be displayed by the projector. Application function. Application Description ® LiveViewer Pro for This application can transfer Windows desktop ®...

  • Page 87: Display Mode

    4. Network Presentation 4.2 Display Mode Network Presentation has two display modes such as Single mode and Multi mode. 4.2.1 Single mode Displays an image from the computer, smartphone, and tablet device in full screen. In the Single mode, the projector is occupied by one device and blocks access While making your presentation, you don’t need to worry that the image on screen will be unexpectedly switched to an image sent by another device.
  • Page 88 4. Network Presentation In Multi mode, one of four screens can be selected to display in a full screen. Remote control operation 1) Press the [ENTER] button of the remote control in Multi mode. Cursor for the selection is displayed. The cursor disappears by pressing the RESET button.

  • Page 89: Multicast Mode

    4. Network Presentation 4.3 Multicast Mode be displayed at the same time. Up to four projectors can display the image from one device at the same time. For more information, please check our website. 4.4 Moderator Control Mode One device can be assigned as Moderator (Host) to control all other devices (Clients) connected with the projector via wireless LAN or wired LAN.

  • Page 90: Port Number

    4. Network Presentation 4.5 Port Number Port No. Protocol 1900 25554 25555 9595 NOTE QM00123-1...

  • Page 91: Screen Mirroring

    5. Screen Mirroring 5. Screen Mirroring 5.1 Outline This projector can display the screen of computer, smartphone, and tablet devices compatible with Miracast ® ® Windows 8.1/10 Windows ® 8.1/10 ® Miracast ® Android Android NOTE • Contents protected by copyright may not be displayed. •...

  • Page 92: Display Mode

    5. Screen Mirroring 5.2 Display Mode Screen Mirroring has three display modes such as Single mode, Multi mode, and Moderator mode. 5.2.1 Single mode Displays an image from the device connected by Miracast in a full screen. ® 5.2.2 Multi mode The projector can divide the projected screen into four and can display images from up to four devices connected by Miracast at the same time.
  • Page 93 5. Screen Mirroring In Multi mode, one of four screens can be selected to display in a full screen. Remote control operation 1) Press the [ENTER] button of the remote control in Multi mode. Cursor for the selection is displayed. The cursor disappears by pressing the RESET button.

  • Page 94: Moderator Mode

    5. Screen Mirroring 5.2.3 Moderator mode If multiple devices are connected to the projector by Miracast function, one of the ® devices can be set to the Moderator. The Moderator can specify the devices to be displayed on the projector. The Moderator device controls the display of other devices from the Web screen of the projector.

  • Page 95: Moderator Control

    5. Screen Mirroring 5.3 Moderator Control Moderator and can perform the following operations. • Switching Single mode and Multi mode. • Selecting the device to be displayed. • Switching ON/OFF of the device screen to be projected. NOTE • Multiple devices cannot be Moderator at the same time. 5.3.1 Login function.

  • Page 96: Moderator Mode

    5. Screen Mirroring 5.3.2 Moderator Mode Describes the screen. (1) Display mode selection button Selects Single mode or Multi mode. However, the above cannot be operated when the device display is ON. If you select Multi mode, it is displayed as follows. (2) Device selection menu Selects the currently connected device from the dropdown list.
  • Page 97 5. Screen Mirroring (4) Display window Information of the device selected in the Device Selection menu is displayed. To switch a display by ON/OFF button in Multi mode, check the checkbox of each area that a device is assigned. When the area is set to ON in Multi mode, the button for full screen is displayed.

  • Page 98: My Image Function

    6. My Image Function 6. My Image Function The projector can display still images transferred via the network. Use the application to transfer the image data. For information on the necessary settings and operations for the computer and projector, refer to the manual for the application. To display the transferred image, select the MY IMAGE item in the NETWORK menu.

  • Page 99: Messenger Function

    7. Messenger Function 7. Messenger Function 7.1 Outline The projector can display text data transferred via the network on the screen and play back audio data inside the projector. The text data can be displayed on the screen in two ways. One is to display the text transferred from the computer on real time, and the other is to choose the text data stored in the projector and display it.

  • Page 100: Display Style

    7. Messenger Function To edit, transfer and display the text data, use the application. For information on the necessary settings and operations for the computer and projector, refer to the manual for the application. 7.2 Display Style There are 4 types of message display style. The following is the description of each type.
  • Page 101 7. Messenger Function NOTE • Using MY BUTTON registered as MESSENGER can turn the displaying messenger text on/off. ( OPTION menu in the Operating Guide) 111) browser. ( • If data is transferred via wireless and wired LAN at the same time, the projector may not process the data correctly.

  • Page 102: Network Bridge Function

    8. Network Bridge Function mutual conversion of a network protocol and a serial interface. projector via wireless or wired LAN is able to control an external device via RS- 232C communication using the projector as a network device. WIRELESS port Wireless (Wireless adapter) Protocol change...

  • Page 103: Communication Setup

    8. Network Bridge Function 8.2 Communication setup the projector, use items in the COMMUNICATION menu. Open the menu of OPTION menu COMMUNICATION in the Operating Guide) (WIRELESS or WIRED depending on the type of connection you use) for the CONTROL port. 2) Using the SERIAL SETTINGS menu, select the proper baud rate and parity for the CONTROL the connected device.

  • Page 104: Transmission Method

    8. Network Bridge Function 8.4 Transmission method Setting FULL-DUPLEX/HALF-DUPLEX connection. The transmission method can be selected from the menus, only when the OPTION menu COMMUNICATION in the Operating Guide) HALF-DUPLEX FULL-DUPLEX 8.4.1 HALF-DUPLEX This method lets the projector make two way communication, but only one direction, either transmitting or receiving data, is allowed at a time.

  • Page 105: Full-Duplex

    8. Network Bridge Function 8.4 Transmission method (continued) NOTE • With using the HALF-DUPLEX method, the projector can send out 254 byte data at the maximum at a time. the RESPONSE LIMIT TIME is set to OFF, the projector can receive the data from the computer and send it out to an external device continuously.

  • Page 106: Other Functions

    9. Other Functions 9. Other Functions 9.1 E-mail Alerts or detected an error. NOTE • The projector may not be able to send e-mail if the projector suddenly loses power. • Mails may not be sent correctly depending on the mail environment you are using.
  • Page 107 9. Other Functions NOTE • The timing of receiving Filter Error e-mail is depending on the FILTER OFF. ( SETUP menu in the Operating Guide) • Lamp Time Alarm e-mail will be sent. • Filter Time Alarm e-mail will be sent. QM00123-1...
  • Page 108 9. Other Functions through a web browser. Mail Settings ( 1) Select [Mail Settings] on main menu in Projector Web Control. 55) for further information. 3) Click the [Apply] button to save the settings. 4) Click the [Send Test Mail] correct.

  • Page 109: Projector Management Using Snmp

    9. Other Functions 9.2 Projector Management using SNMP The SNMP (Simple Network Management Protocol) enables to manage the projector information, which is a failure or warning status, from the computer on the network. NOTE • It is recommended that SNMP functions are executed by a network administrator.
  • Page 110 9. Other Functions projector by SNMP. Port Settings ( 1) Select [Port Settings] on main menu in Projector Web Control. 2) Click the [Download MIB File] 3) Click the [Enable] check box to open the SNMP Port. Set the address to send the SNMP trap to when a Failure/Warning occurs.

  • Page 111: Event Scheduling

    9. Other Functions 9.3 Event Scheduling The scheduling function enables to setup scheduled events including power on / power off. It enables to be “self-management” projector. Note the following before setting the schedule. NOTE • Schedule can also be set in OPTION - SCHEDULE menu of the projector.
  • Page 112 9. Other Functions The procedure to set the schedule in Projector Web Control is described in the following. such as power on/off or switching input source, and the time to execute the events are to be registered in the program. No events are registered in program 1 – 16 with factory default settings.
  • Page 113 9. Other Functions 3) After setting the time, events and parameters, click the [Register] to add the new event. Click the [Delete] button when you want to delete an event. Click the [Delete All] button when you want to delete all the events in the currently selected program.
  • Page 114 9. Other Functions When you copy the currently selected program to other program, click the [Program Copy] button. Click the [Copy to] button after selecting the program to which you want to copy in dropdown list. program to which you want to copy. Click the [Edit] button to edit the event of copied program after copying the program.

  • Page 115: Command Control Via The Network

    9. Other Functions 9.4 Command Control via the Network commands. Communication Port The following two ports are assigned for the command control. (Network Control Port1 (Port: 23)) (Network Control Port2 (Port: 9715)) NOTE Command Control Settings ( Example: If the IP address of the projector is set to 192.168.1.10: 1) Enter “http://192.168.1.10/”...
  • Page 116 9. Other Functions 9.4 Command Control via the Network (continued) 6) Click the [Apply] button to save the settings. 7) Click the [Security Settings] on the main menu. 8) Click the [Network Control] and enter the desired password. * See NOTE. 9) Click the [Apply] button to save the settings.
  • Page 117 9. Other Functions 9.4 Command Control via the Network (continued) Command Format Command formats differ among the different communication ports. You can use the RS-232C commands without any changes. The reply data format is the same as the RS-232C commands. ( RS-232C Communication in the Operating Guide - Technical) However, the following reply will be sent back in the event of authentication...
  • Page 118 9. Other Functions 9.4 Command Control via the Network (continued) Reply Data format The connection ID (the data is same as the connection ID data on the sending data format) is attached to the RS-232C commands reply data. Connection Reply 0x06 1 byte Connection...
  • Page 119 9. Other Functions 9.4 Command Control via the Network (continued) Automatic Connection Break The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established. Authentication The projector does not accept commands without authentication success when authentication is enabled.

  • Page 120: Crestron Connected

    9. Other Functions 9.5 Crestron Connected Crestron Connected is a multi-user resource management program provided by Crestron Electronics, Inc. It is an application for managing and controlling the For the details of Crestron Connected , refer to the Crestron website. ®...

  • Page 121: Firmware Update Of The Network Function

    10. Firmware update of the network function 10. Firmware update of the network function CAUTION the instructions are not followed, the projector may not start up correctly. Update • Never turn off the projector lamp during the update. When the lamp turns off unexpectedly, perform any needed maintenance after leaving the projector for at least 45 minutes.

  • Page 122: Preparation

    10. Firmware update of the network function 10.1 Preparation MENU of the projector. (The following is an example.) Model Name MC-WX5506M • Select Firmware Update from Main Menu in the Web Control. (The following is an example.) Model Name MC-WX5506M Use a computer that can be connected to the Internet, and download the update NOTE •...

  • Page 123: Update

    10. Firmware update of the network function 10.2 Update Each method is as follows. 10.2.1 Update by using the USB storage device storage device • FAT16 and FAT32 format are supported. storage device] ---- CAUTION • • Name a folder using single-byte uppercase letters. •...
  • Page 124 10. Firmware update of the network function 6. When you perform the update, select “YES”. 7. The update is completed in about a few minutes, and the network of the projector restarts automatically. normally. OPERATION - FIRMWARE UPDATE or NETWORK - NETWORK INFORMATION QM00123-1...

  • Page 125: Update By Web Control Via The Network Connection

    10. Firmware update of the network function 10.2.2 Update by Web Control via the network connection Computer that can be connected to a wired or wireless network by Web Control. For more information, please check our website. • Prepare a LAN cable or a router necessary for connection. Control.

  • Page 126: Troubleshooting

    11. Troubleshooting 11. Troubleshooting Phenomenon: Cannot communicate with the projector. (Wired network) Item to be checked Solutions Turn on the projector. Is the network device such as a Turn on the network device. The network function is not available when function in the standby mode, set to NORMAL.
  • Page 127 11. Troubleshooting Phenomenon: Cannot communicate with the projector. (Wireless network) 1. Common Item to be checked Solutions Turn on the projector. Is the network device such as an Turn on the network device. The network function is not available when function in the standby mode, set to NORMAL.
  • Page 128 11. Troubleshooting Phenomenon: Cannot communicate with the projector. (Wireless network) (continued) 1. Common (continued) Item to be checked Solutions The network function is not available when MULTIMEDIA is set to OFF. If you want to use Is the DHCP setting of the When the IP address overlaps, turn off your ®...
  • Page 129 11. Troubleshooting Phenomenon: Cannot communicate with the projector. (Wireless network) (continued) 3. INFRASTRUCTURE Item to be checked Solutions Consult with your network administrator. Is the wireless network to Set the encryption settings of the projector again and reconnect. Is signal strength of wireless •...
  • Page 130 11. Troubleshooting Phenomenon: Web(Projector Web Control) is not displayed correctly. Item to be checked Solutions Is the correct URL entered in Enter the IP address of the projector in Web browser. ® ® Is JavaScript Enable JavaScript How to set is different depending on the Web browser.
  • Page 131 11. Troubleshooting Phenomenon: Cannot send an e-mail correctly. Item to be checked Solutions Check the settings on the Mail Settings screen of the Projector Web Control. Are the settings of Sender e-mail Set valid e-mail address. Check if a test e-mail is sent correctly by pressing the [Send Test Mail] button on the Mail Settings screen of the Projector Web Control.
  • Page 132 11. Troubleshooting Phenomenon: The schedule is not executed correctly. Item to be checked Solutions Turn on the projector. The schedule function is not available when function in the standby mode, set to NORMAL. Check the settings of Date and Time. Is the image data to be displayed Register the image data to be displayed with in the schedule function...
  • Page 133 11. Troubleshooting Phenomenon: The time settings are not correct. Item to be checked Solutions Set the battery. The battery is considered to be exhausted if the time is off soon after setting date and time. In that case, replace the battery. Check the settings of Date/Time Settings menu of the Projector Web Control or DATE AND TIME menu of the projector.
  • Page 134 11. Troubleshooting ® Phenomenon: Cannot connect in the Miracast Item to be checked Solutions Is WIRELESS NETWORK set to Set WIRELESS NETWORK to ON. Turn on the projector. ® Is the device compatible with Use the device compatible with Miracast ®...
  • Page 135 11. Troubleshooting ® Phenomenon: Cannot connect in the Miracast . (continued) Item to be checked Solutions Is CONNECTION MODE set to When the setting of NETWORK - NETWORK SETUP - MIRRORING SETUP - CONNECTION MODE is set to PIN, it is necessary to input PIN code displayed on the screen of the projector into the device.
  • Page 136 11. Troubleshooting Phenomenon: Cannot display the image correctly in the Screen Mirroring function. Item to be checked Solutions Is the input source set to other Set the input source to LAN. Is the device connected to the NETWORK INFORMATION menu. may be generated on the screen due to radio interference in the surrounding environment.
  • Page 137 11. Troubleshooting Phenomenon: Item to be checked Solutions During Moderator Control mode, only the image from the device that the Moderator has permitted is displayed. The projector cannot display the image by the operation of the client side. QM00123-1...

  • Page 138: Warranty And After-Sales Service

    12. Warranty and after-sales service 12. Warranty and after-sales service If an abnormal operation (such as smoke, strange odor or excessive sound) should occur, stop using the projector immediately. If this does not resolve the problem, please consult your dealer or service company.
