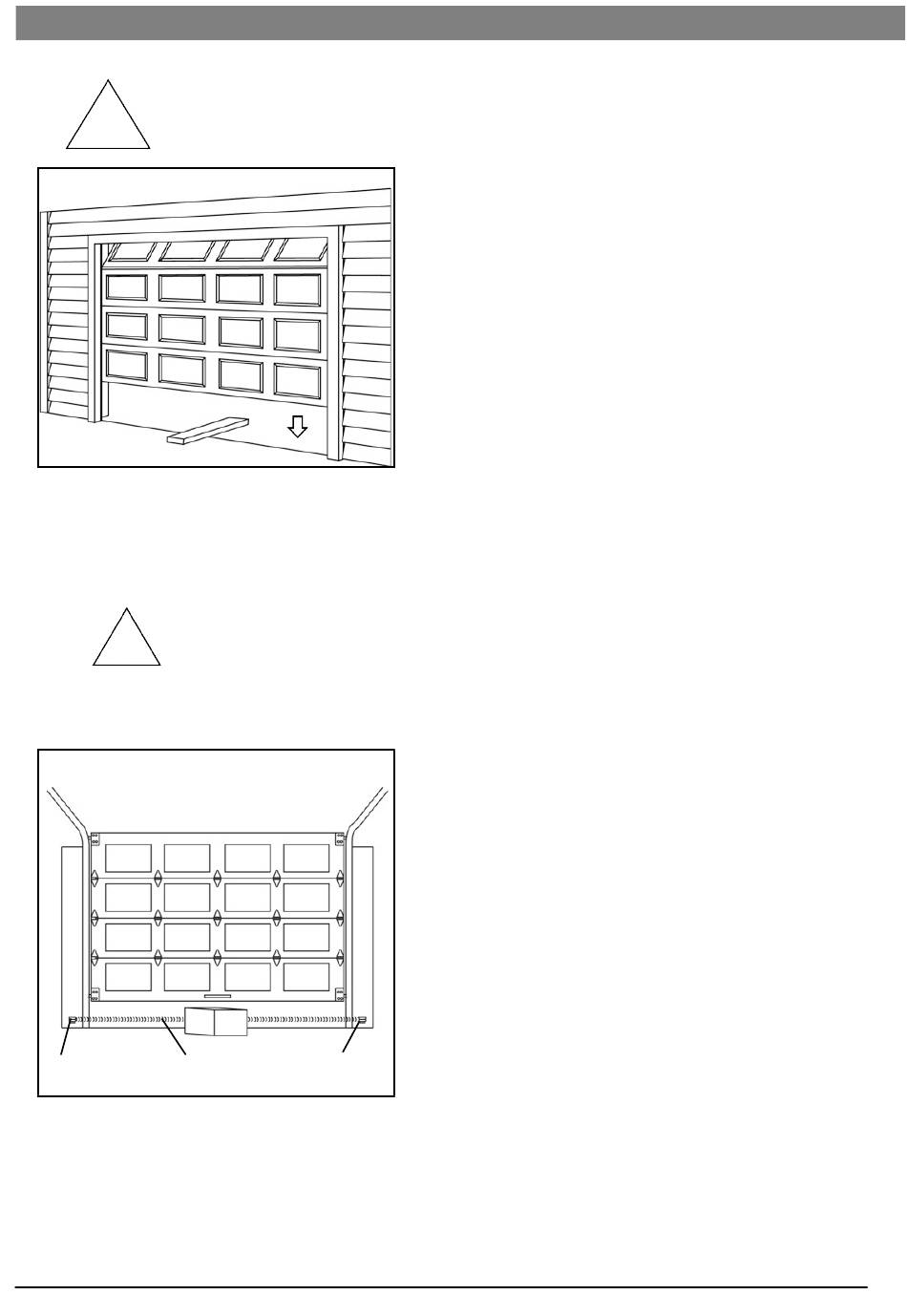

Testing the Safety Reverse System
Warning:
!
100 mm Board
Laid Flat
Note:
Any time any adjustments are made to Limits or Sensitivity, You Must Retest the opener for the Reversing
Feature at Floor Level as outlined above.
!
Sensor Beam 100-150
Invisible Light Beam
mm above Floor
Protection Area
NOTE:
If the Garage Door Travels More Than 25mm in a Downward Path After Releasing the Button, the Photo
eye system is Malfunctioning. Check All Electrical connections and Alignment of the Photo eye system.
*
Optional
Failure to Test Reversing System Could Result in Death or Serious Injury. Test This
System Once A Month.
Warning:
The Sensitivity System Reversing Test Should Be Performed Monthly to Ensure
That This Important System Remains in Proper Adjustment
Warning:
A Damaged or Malfunctioning Photo eye system could enable a Garage Door to
Close on People or Property, Causing Serious Injury or Death. Perform this Test
Monthly to Ensure Proper Operation.
Sensor Beam 100-
150 mm above Floor
To test the Opener Reversing Feature at floor level, place a
solid object 100 mm thick on the ground so that the centre of
the door will contact it. Close the Door. If the Down force
Adjustments are Correct, the door will reverse within one and
a half (1-1/2) seconds of contacting the object and travel to the
Full Open Position. Light will also start flashing and continue to
flash for 30 seconds. If this does not occur, re-check Limit
Adjustments Page 15 and Force/Sensitivity Adjustments Page
16.

Testing the Photo Eye System

Start the door down and then place an obstacle approximately
200 mm high by 300 mm wide in the path of the beam. The
Red Pilot Light on the Photo eye system should go off. The
door should stop for 1-1/2 seconds and reverse to the full
open position. The Opener light will also begin flashing and
continue to flash for 30 seconds. IF the door is moving up and
the beam is broken, the door will continue up to full open.
With the door fully open and at rest, place the obstacle in the
path of the beam once again. Activate the Wall Push Button,
The Opener will revert to and remain in the safety. Push And
Hold Operation for close travel. See Page 13.
*
