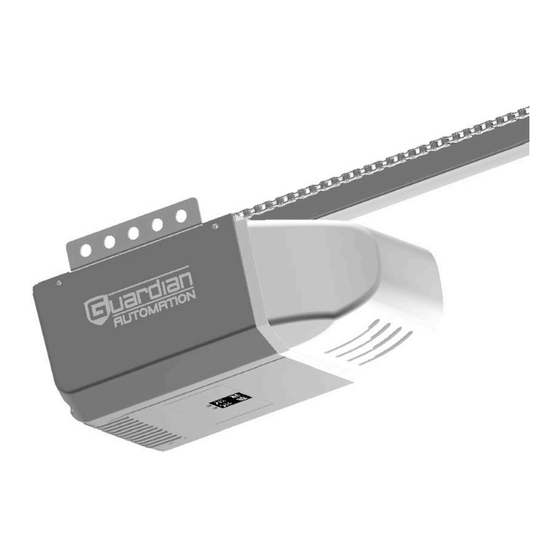

- Page 1 MODEL ACS0 Residential Garage Door Opener for Sectional and One Piece Track Garage Doors up to 2.4M HIGH Installation Instructions Owner’s Manual READ THIS MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION This Operator Must be installed by a Qualified Installer Only HSOMU01A-1...
- Page 2 ACS0 Specifications Electrical Rating Input AC 230 50Hz Max. Current Power 375W Standby Power Motor Type AC 230V Single Phase Max. Capacity 75kg Recommended Lifting Forces Max. Lifting Force 60kg Rated Lifting Force 15kg Door travel rate 135mm/second Door Type Door Travel Limits 3.05 metres...
-
Page 3: Table Of Contents
Warranty NOTICE Guardian Garage Door Openers are designed and tested to offer safe operation, provided installation and use of this product is followed in strict accordance with these instructions for assembly and installation. Failure to comply with these instructions could cause property and/or bodily injury. The opener is intended only for the... -
Page 4: Safety Instructions
Read and Follow These Important Safety Instructions You will see Warning and Caution statements on the following Pages. Read and follow these safety instructions carefully. Failure to do so could result in serious personal injury or death. Warning means that severe injury or death may result from failure to follow instructions Caution means that property damage or injury may result from failure to follow instructions •... -
Page 5: Product Features/ Specifications
Product Features Motor: Permanently lubricated, thermally protected, heavy-duty motor with automatic reset. Opener Lights: Turn on and off automatically with 2-1/2 minutes illumination for your safety and convenience. Sensing System: A built-in sensing system detects obstructions during door operation. If in the Downward (close) travel mode, the Opener will sense an obstruction and reverse to the full open position. -
Page 6: Door Test
Door Test Before beginning installation of the operator please complete the following test to insure that your door is balanced and in good working condition. A poorly balanced door could cause severe personal injury and damage to the opener. Always have a qualified garage door service person make any needed adjustments and/or repairs to your door before proceeding with installation. - Page 7 Components Identification and Inventory Power Head w/ Sprocket Cover Lamp Dome Transmitter and Visor Clip Pulley Assembly Wireless Wall Button Door Arm: Curved Trolley Assembly Header Bracket Door Bracket Trolley Stop Tube Door Arm: Straight Screw Bag Photo eye system (Optional) Fastener (parts in screw bag) Identification Hex Bolt (3) 8mm-18x1”...
- Page 8 Assembly Note: The Tube/Chain Speed Unit Assembly with Trolley and Front Idler Sprocket is packaged separately from the Power Head Unit. Refer to Page 7 for package contents and identification Step 1. Figure 7A Place Power Head Unit on discarded packing material/ cardboard.
-
Page 9: Step 1 Mounting The Front Bracket
Installation Installation procedures will vary depending on type of garage door. Identify your garage door from those illustrated below and follow procedure outlined for your type of door. For tilt door (one-piece door), please refer to installation on page 12&13. To determine high point of door. -
Page 10: Step 2
Installation Warning: Aluminum or Lightweight Steel Doors Will Require Reinforcement before installation of door mounting brackets. Contact your door manufacturer instructions. Failure to properly do so may result in severe door damage. Note: Reinforcing may affect the balance of your door. Check for proper manual operation after installation. If necessary have your door re-balanced by a qualified garage door service person. -
Page 11: Step 6 Door Arm, Bracket And Plate Installation
Installation Step 6. Figure 10A Door Arm Door Arm, Bracket and Plate Installation: Straight Install the door mounting bracket in the centre and even, with the Clevis top set of rollers on the door as illustrated Figure. 10A. (Fasteners Door Arm Pin and Door Supplied: 2 ea. -
Page 12: Step. 8
Installation Warning: Installation & Wiring Must Be in Compliance with Local Electrical and Building Codes. Operation at other than 240V 50 Hz Will Cause Opener Malfunction and Damage. Step. 8 Figure 11A Opener must be permanently wired or plugged into a grounded 3-prong receptacle wire according to local codes, within 1M of the Power Unit. - Page 13 Installation (Tilt Door) Step 1 Locate the centre of the top edge of the garage door and mark it on the inside face. With a level set plumb at this mark, draw a vertical line on the mounting surface above the door. (IF a ceiling surface suitable for marking exists, extend the line to the ceiling and mark the ceiling.
- Page 14 Installation (Tilt Door) Step 5: After the rear of the operator is suspended, remove the door support and close the door. Remove the 6mm x 50mm carriage bolt and nut that was used to temporarily hold the front end of the rail to the bracket and secure with a 8mm x 25.4mm bolt and lock nut.
-
Page 15: Setting The Limits
Adjustment Warning: If Limits are not adjusted properly, the emergency release mechanism may not work properly and door operation could result in door damage or serious injury. Note: It is now necessary to turn on the power in order to run the opener to check limit settings. Before doing so, ensure that all mounting hardware is installed and has been properly tightened, that all electrical connections are per local code requirements. - Page 16 Force/Sensitivity Adjustment Warning: Improper Adjustment of Sensitivity System Force Could Cause Entrapment, Injury or Death. Set Adjust For Just Enough Force To Operate The Door Reliably, But No Stronger. Do Not Over-Adjust Force/Sensitivity System To Compensate For A Poorly Working, Sticking or Binding Door (Contact a qualified Garage Door Service Person to Correct any binding, sticking and/or other door problems).
-
Page 17: Testing The Photo Eye System
Testing the Safety Reverse System Warning: Failure to Test Reversing System Could Result in Death or Serious Injury. Test This System Once A Month. To test the Opener Reversing Feature at floor level, place a solid object 100 mm thick on the ground so that the centre of the door will contact it. -
Page 18: Final Installation
Final Installation Make Sure That: The front and rear mounts for the opener are sound and secure and the rail is positioned correctly above the high arc of the door and that the opener is positioned over the door action centreline. 2. -
Page 19: Trouble Shooting
Trouble Shooting Symptoms Probable Cause/Solution Opener does not work from either the transmitter or push button. 1,2,3,5,6,9,11,17,23,24 Opener does not start on command and light flashes for 30 seconds 1,4,5,7,8,11,12,13,15,16,17,18,22,23,24 Opener stops during cycle and light flashes 5 times Opener operates from push button but not radio 9,14,20,21,25 Stops before reaching full open or closed 10,15... -
Page 20: After The Installation
After the Installation Never permit children to play with or operate the garage door opener either from the wall station or the remote controls. Keep radio transmitter locked in the car. Misuse of the push button or transmitter could result in serious injury or even death. - Page 21 A-28 Drive Shaft Assembly w/ Helical Gear A-10 Motor Shaft Bushing A-19 Limit Shaft Clip Chassis A-11 Roll Pin A-20 Limit Screws Logic Board A-12 Motor Mounting Bracket A-21 RPM Reader Wheel Capacitor A-13 Up Limit A-22 RPM Reader Board Capacitor Mounting Bracket A-14 Limit Actuator (Traveler)
- Page 22 Rail and Hardware Parts List Chain Emergency Pull-Cord with Knob B-11 Straight Door Arm Header Bracket Trolley Assembly B-12 Curved Door Arm Pulley Assembly Chain Tension Assembly B-13 Door Bracket Tube Trolley Release Rod B-14 Sprocket Cover Chain Connecting Link B-10 Trolley Stop Well nut and bolt...
-
Page 23: Warranty
If Product was supplied by an authorised Guardian Automation dealer and this dealer cannot be contacted, then notification must be made as soon as practicable to Guardian Automation. - Page 24 Product was supplied you directly from Guardian Automation please forward a copy of your original receipt as proof of purchase and a completed warranty claim form to Guardian Automation directly. If the Product was supplied by an authorised Guardian Automation dealer,...
