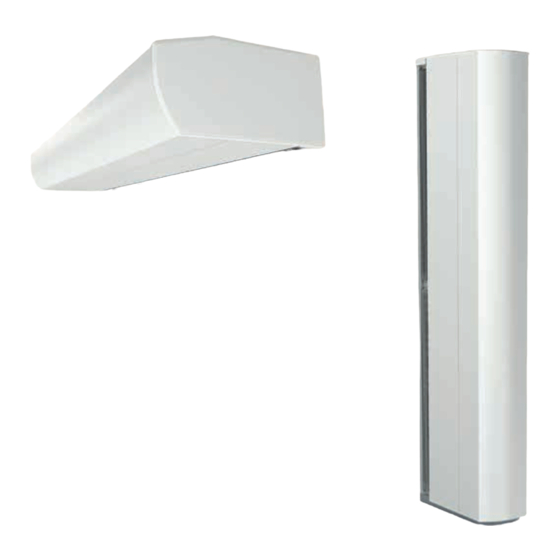

AC35
Installation and maintenance instruction
GB
for air curtains
IMPORTANT: Read these instructions before the product is installed and used.
Save the instructions for future use.....................................................................................................2
Art.nr: 172786-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VEAB AC35

Summary of Contents for VEAB AC35

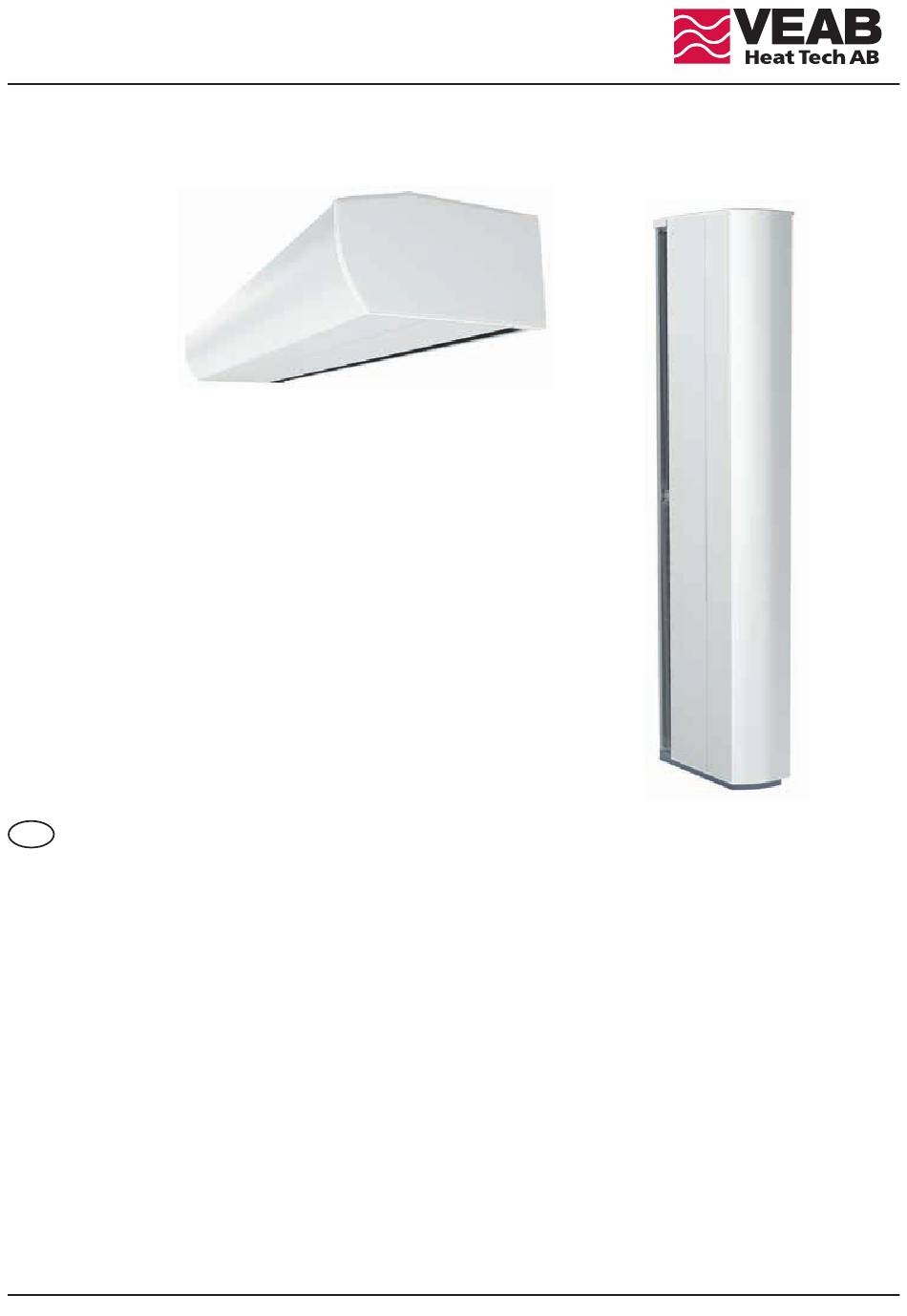

  • Page 1 AC35 Installation and maintenance instruction for air curtains IMPORTANT: Read these instructions before the product is installed and used. Save the instructions for future use.....................2 Art.nr: 172786-01...

  • Page 2: General Instructions

    5. 5. Slide the unit on the consoles. (Fig. 6D) heating or hot water heating. AC35 is intended for en- 6. 6. Lock the nuts against the bracket and put the trances and smaller doors up to 3.5 metres in height.

  • Page 3: Electrical Installation

    AC35 Horizontal mounting on the ceiling Electrical installation Threaded rods, wire suspension kits and ceiling brackets The installation, which should be preceded by an om- for ceiling mounting are available as accessories, see fig. nipolar switch with a contact separation of at least 3 7 and 8 and separate manuals.
  • Page 4 AC35 Connecting the water coil (W) Filter (W) The installation must be carried out by an authorised The water coil is protected against dirt and blockage by installer. an air filter which covers the coil face. In environments The water coil has copper tubes with aluminium fins and...

  • Page 5: Maintenance

    AC35 Maintenance Fan replacement 1. Determine which of the fans is not functioning. Unit with water heating: 2. Disconnect the cables to the relevant fan. The appliance filter should be cleaned regularly to ensure 3. Remove the screws securing the fan and lift the air curtain effect and the heat emission from the the fan out.

  • Page 6: Troubleshooting

    AC35 Trouble shooting If the fans are not working or do not blow properly, check the following: That the intake grille/filter is not dirty. Check the functions and settings of the control system PLS, see manual for PLS. If there is no heat, check the following: Check the functions and settings of the control system PLS, see manual for PLS.
  • Page 7 2 m; 2,5 m (mm) (mm) AC35-10 1073 AC35-15 1583 AC35-20 2073 AC35-25 2583 AC35-10/35-15: 4 M8 PL3510/3515: 4 M8 AC35-20: 6 M8 PL3520: 6 M8 AC35-25: 8 M8 PL3525: 8 M8 (mm) AC35-15 1589 AC35-20 2079 AC35-25...
  • Page 8 AC35 Fig. 1B Fig. 1A When the front has been removed it is important to be Open the unit by raising the front panel. The front is sure it is firmly seated in the front locks again. blocked in open position with the front hatch hook.
  • Page 9 AC35 Filling the water coil Fig. 4 (mm) AC35-10 AC35-15 1260 AC35 Fig. 5 M8-holes for mounting.
  • Page 10 AC35 AC35 + PA34WB PA34WB 20 mm AC35-W-15 2 pcs AC35-W-20 3 pcs AC35-W-30 4 pcs Fig. 6 See separate manual for PA34WB.
  • Page 11 AC35 PA34CB PA34TR PA34WS (PA34CB) Fig. 7 Fig.8 PA34TR + PA34CB. PA34WS + PA34CB See separate manual for PA34TR. See separate manual for PA34WS. PL3JK...
  • Page 12 AC35 Note! The top of the air curtain must be secured in the wall or ceiling. PL3JK Fig. 9 See separate manual for PL3JK...
  • Page 13 Used to adapt a unit for vertical mounting. Contains floor edging and mounting hardware to brace the top. The vertical kit makes it possible to mount two PL3JK Vertical kit for AC35 AC35 Fig. 9 units on top of each other. One vertical kit is requi- red per unit.
  • Page 14 AC35 Accessories PLS PLSB Control unit Basic Incl. control unit PLSUB1 and 5 meter modular cable with RJ12 quick connect. IP30 PLSAC Control unit Competent Incl. PLSUA1 control unit, box cover, PLSC1X hub unit, PLSDC door switch, and 2 modular cables with RJ12 quick connects (1 pc 3 m, 1 pc 5 m).
  • Page 15 AC35 AC35-E Transformer Transformer PLSB1 Actuator 230V~ ROOM...
  • Page 16 AC35 AC35-W Transformer Transformer PLSB1 Actuator Supply 230V~ 230V~ ROOM...
  • Page 17 AC35 PLS Basic AC35-E PLSB1 PLSRTX PLSUB1 (optional) 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY PLS Basic - Parallel connection PLSB1 PLSB1 PLSRTX PLSUB1 (optional) 230V~ 230V~ ROOM ROOM Pot. Pot. Unit ID Unit ID ACTUATOR SUPPLY ACTUATOR SUPPLY Wiring diagrams for PLSAC Competent, see manuals for PLS.
  • Page 18 AC35 PLS Basic AC35-W PLSB1 PLSUB1 SD230 PLSRTX (optional) ROOM 230V~ Pot. Unit ID ACTUATOR SUPPLY...
  • Page 19 AC35 PLS Basic - Parallel connection AC35-W PLSB1 SD230 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY PLSB1 SD230 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY PLSB1 SD230 PLSRTX PLSUB1 (optional) 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY Wiring diagrams for PLSAC Competent, see manuals for PLS.
  • Page 20 AC35 NB: We reserve us from typographical errors and the right to make changes and improvements to the contents of this manual without prior notice. VEAB Heat Tech AB Visitors adress Org.no/F-skatt Postal Cheque Service Phone Box 265 Stattenavägen 50...
