Maxim III

RS-232 feature

The RS-232 feature allows the user to
remotely operate the line level media
inputs via a convenient wall panel
controller.
Audio levels very often need to be
adjusted when switching from computer
audio to DVD players and other audio
sources. Such operations as level UP,
DOWN and MUTE are easily accomplished

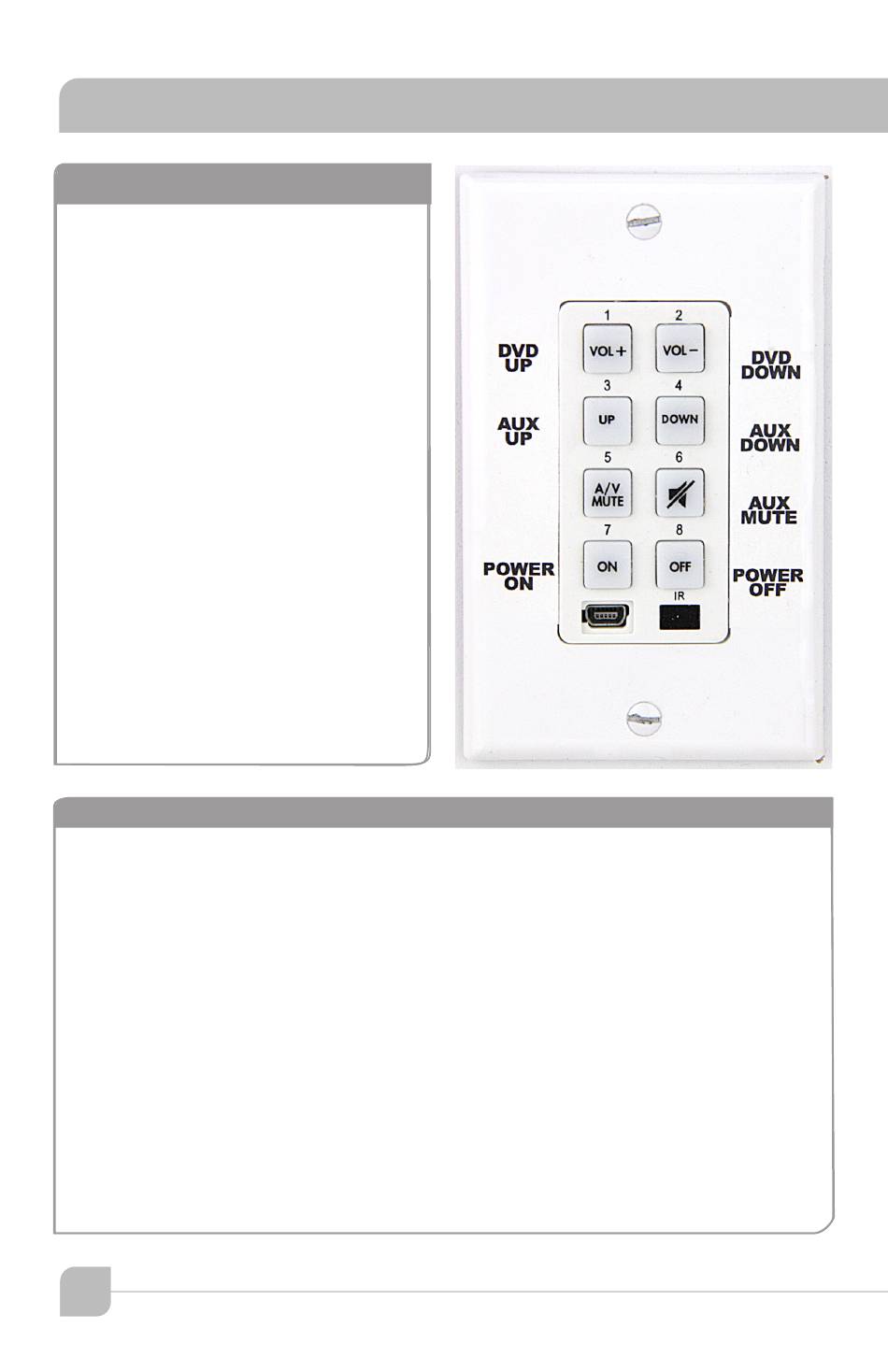

via a typical eight button controller, as
shown here.
This allows the receiver/amplifier to be
placed in an area or compartment that
is not easily accesssed by the user. Codes
that are required for this setup are also
available below or from the TeachLogic
website.
RS-232 codes
Baud Rate : 9600
Parity Bit : NONE
Data Bit : 8
Stop Bit : 1 TL COMMAND - Maxim III
Product Function ASCII command
POWER ON Linkx:Power:ON
POWER OFF Linkx:Power:OFF
Gain DVD UP Linkx:Gain:AUX:UP
Gain DVD DOWN Linkx:Gain:AUX:DOWN
Gain DVD MUTE Linkx:Gain:AUX:MUTE
Gain Computer UP Linkx:Gain:DVD:UP
Gain Computer DOWN Linkx:Gain:DVD:DOWN
Gain Computer MUTE Linkx:Gain:DVD:MUTE
Gain MP3 UP Linkx:Gain:MP3:UP
Gain MP3 DOWN Linkx:Gain:MP3:DOWN
Gain MP3 MUTE Linkx:Gain:MP3:MUTE
Gain AUX UP Linkx:Gain:MiC:UP
Gain AUX DOWN Linkx:Gain:MiC:DOWN
Gain AUX MUTE Linkx:Gain:MiC:MUTE
CH A MUTE Linkx: CH:A:MUTE
CH B MUTE Linkx: CH:B:MUTE
11
integration
transmitter
blank page
Maxim III
HEX command String
4c 69 6e 6b 78 3a 50 6f 77 65 72 3a 4f 4e
4c 69 6e 6b 78 3a 50 6f 77 65 72 3a 4f 46 46
4c 69 6e 6b 78 3a 47 61 69 6e 3a 41 55 58 3a 55 50
4c 69 6e 6b 78 3a 47 61 69 6e 3a 41 55 58 3a 44 4f 57 4e
4c 69 6e 6b 78 3a 47 61 69 6e 3a 41 55 58 3a 4d 55 54 45
4c 69 6e 6b 78 3a 47 61 69 6e 3a 44 56 44 3a 55 50
4c 69 6e 6b 78 3a 47 61 69 6e 3a 44 56 44 3a 44 4f 57 4e
4c 69 6e 6b 78 3a 47 61 69 6e 3a 44 56 44 3a 4d 55 54 45
4c 69 6e 6b 78 3a 47 61 69 6e 3a 4d 50 33 3a 55 50
4c 69 6e 6b 78 3a 47 61 69 6e 3a 4d 50 33 3a 44 4f 57 4e
4c 69 6e 6b 78 3a 47 61 69 6e 3a 4d 50 33 3a 4d 55 54 45
4c 69 6e 6b 78 3a 47 61 69 6e 3a 4d 69 43 3a 55 50
4c 69 6e 6b 78 3a 47 61 69 6e 3a 4d 69 43 3a 44 4f 57 4e
4c 69 6e 6b 78 3a 47 61 69 6e 3a 4d 69 43 3a 4d 55 54 45
4c 69 6e 6b 78 3a 43 48 3a 41 3a 4d 55 54 45
4c 69 6e 6b 78 3a 43 48 3a 42 3a 4d 55 54 45
0D
0D
0D
0D
0D
0D
0D
0D
0D
0D
0D
0D
0D
0D
0D
0D
