Kolver EDU 2AE/TOP/MITO Manual page 18



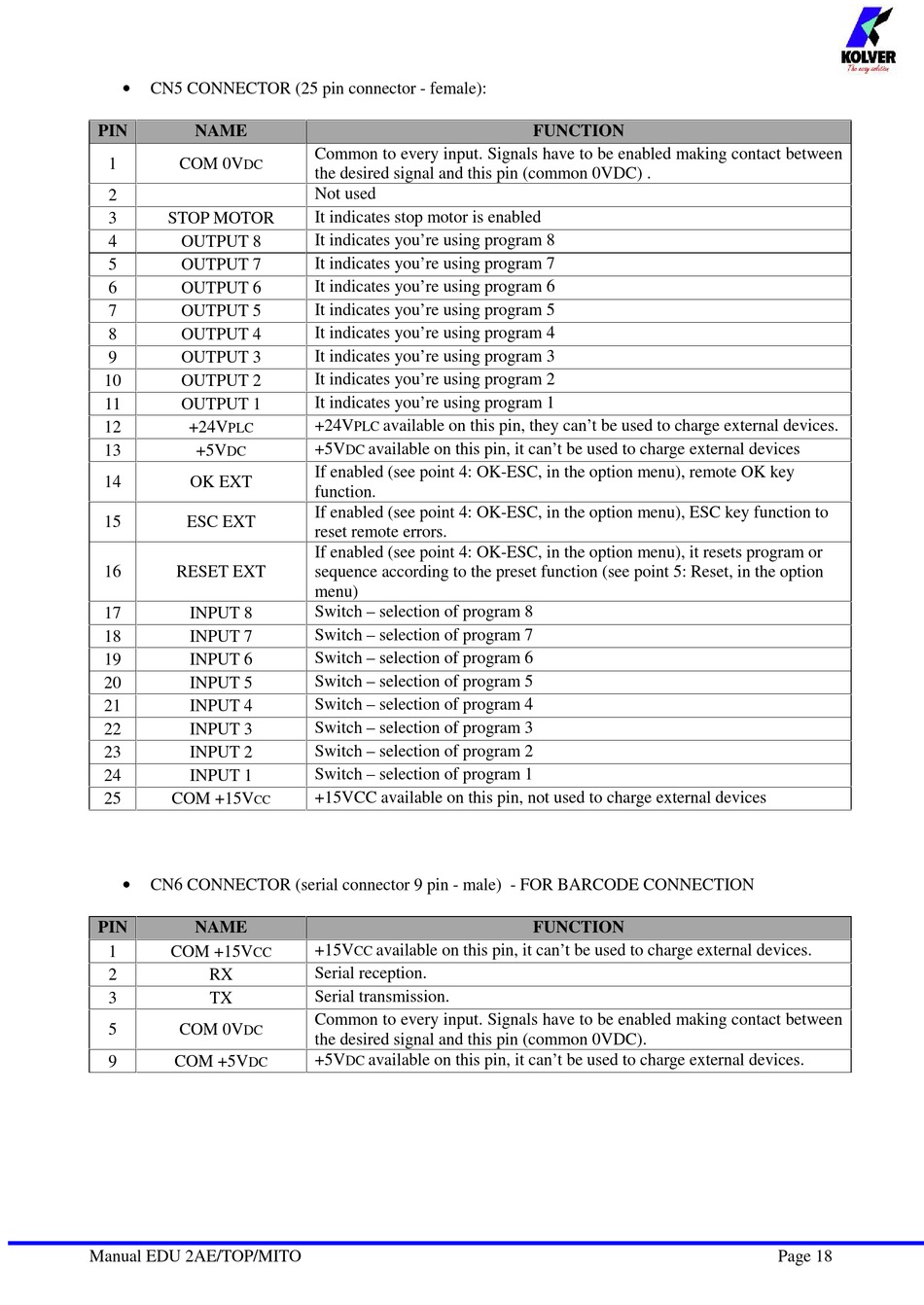

CN5 CONNECTOR (25 pin connector - female):
PIN NAME
1 COM 0V
DC
2
3 STOP MOTOR
4 OUTPUT 8
5 OUTPUT 7
6 OUTPUT 6
7 OUTPUT 5
8 OUTPUT 4
9 OUTPUT 3
10 OUTPUT 2
11 OUTPUT 1
12 +24V
PLC
13 +5V
DC
14 OK EXT
15 ESC EXT
16 RESET EXT
17 INPUT 8
18 INPUT 7
19 INPUT 6
20 INPUT 5
21 INPUT 4
22 INPUT 3
23 INPUT 2
24 INPUT 1
25 COM +15V
CC

CN6 CONNECTOR (serial connector 9 pin - male) - FOR BARCODE CONNECTION
PIN NAME
1 COM +15V
CC
2 RX
3 TX
5 COM 0V
DC
9 COM +5V
DC
Manual EDU 2AE/TOP/MITO
Common to every input. Signals have to be enabled making contact between
the desired signal and this pin (common 0VDC) .
Not used
It indicates stop motor is enabled
It indicates you're using program 8
It indicates you're using program 7
It indicates you're using program 6
It indicates you're using program 5
It indicates you're using program 4
It indicates you're using program 3
It indicates you're using program 2
It indicates you're using program 1
+24V available on this pin, they can't be used to charge external devices.
PLC
+5V available on this pin, it can't be used to charge external devices
DC
If enabled (see point 4: OK-ESC, in the option menu), remote OK key
function.
If enabled (see point 4: OK-ESC, in the option menu), ESC key function to
reset remote errors.
If enabled (see point 4: OK-ESC, in the option menu), it resets program or
sequence according to the preset function (see point 5: Reset, in the option
menu)
Switch – selection of program 8
Switch – selection of program 7
Switch – selection of program 6
Switch – selection of program 5
Switch – selection of program 4
Switch – selection of program 3
Switch – selection of program 2
Switch – selection of program 1
+15VCC available on this pin, not used to charge external devices
+15V available on this pin, it can't be used to charge external devices.
CC
Serial reception.
Serial transmission.
Common to every input. Signals have to be enabled making contact between
the desired signal and this pin (common 0VDC).
+5V available on this pin, it can't be used to charge external devices.
DC
FUNCTION
FUNCTION
Page 18
