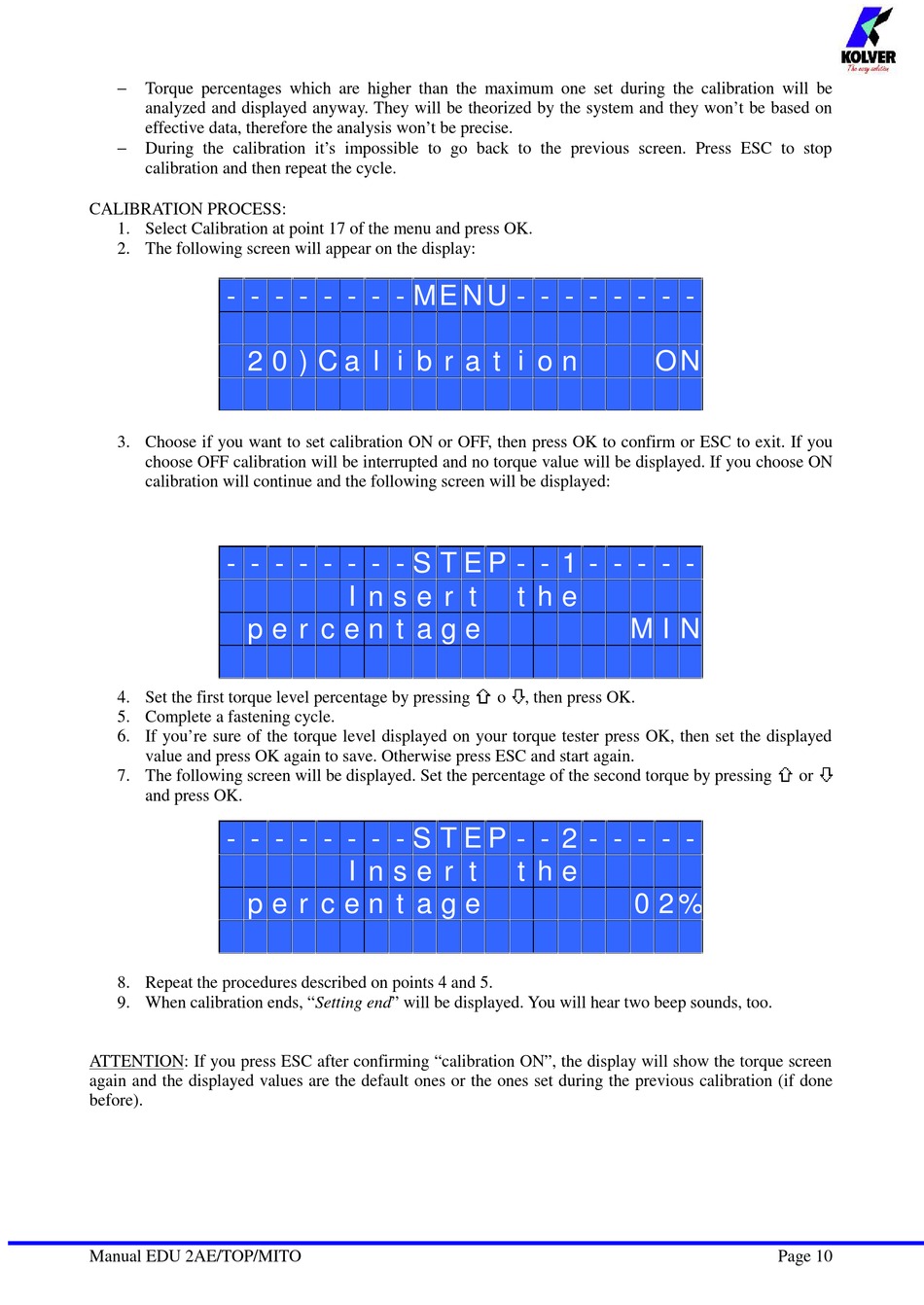

Kolver EDU 2AE/TOP/MITO Manual page 10


Torque percentages which are higher than the maximum one set during the calibration will be
analyzed and displayed anyway. They will be theorized by the system and they won't be based on
effective data, therefore the analysis won't be precise.

During the calibration it's impossible to go back to the previous screen. Press ESC to stop
calibration and then repeat the cycle.
CALIBRATION PROCESS:
1. Select Calibration at point 17 of the menu and press OK.
2. The following screen will appear on the display:
- - - - - - - - M E N U - - - - - - - -
2 0 ) C a l i b r a t i o n
3. Choose if you want to set calibration ON or OFF, then press OK to confirm or ESC to exit. If you
choose OFF calibration will be interrupted and no torque value will be displayed. If you choose ON
calibration will continue and the following screen will be displayed:
- - - - - - - - S T E P - - 1 - - - - -
p e r c e n t a g e
4. Set the first torque level percentage by pressing
5. Complete a fastening cycle.
6. If you're sure of the torque level displayed on your torque tester press OK, then set the displayed
value and press OK again to save. Otherwise press ESC and start again.
7. The following screen will be displayed. Set the percentage of the second torque by pressing
and press OK.
- - - - - - - - S T E P - - 2 - - - - -
p e r c e n t a g e
8. Repeat the procedures described on points 4 and 5.
9. When calibration ends, "Setting end" will be displayed. You will hear two beep sounds, too.
ATTENTION: If you press ESC after confirming "calibration ON", the display will show the torque screen
again and the displayed values are the default ones or the ones set during the previous calibration (if done
before).
Manual EDU 2AE/TOP/MITO
I n s e r t t h e
o
I n s e r t t h e
O N
M I N
, then press OK.
0 2 %
or
