Master Section; Large Record Panel - Zoom LiveTrak L-20 Control Operation Manual

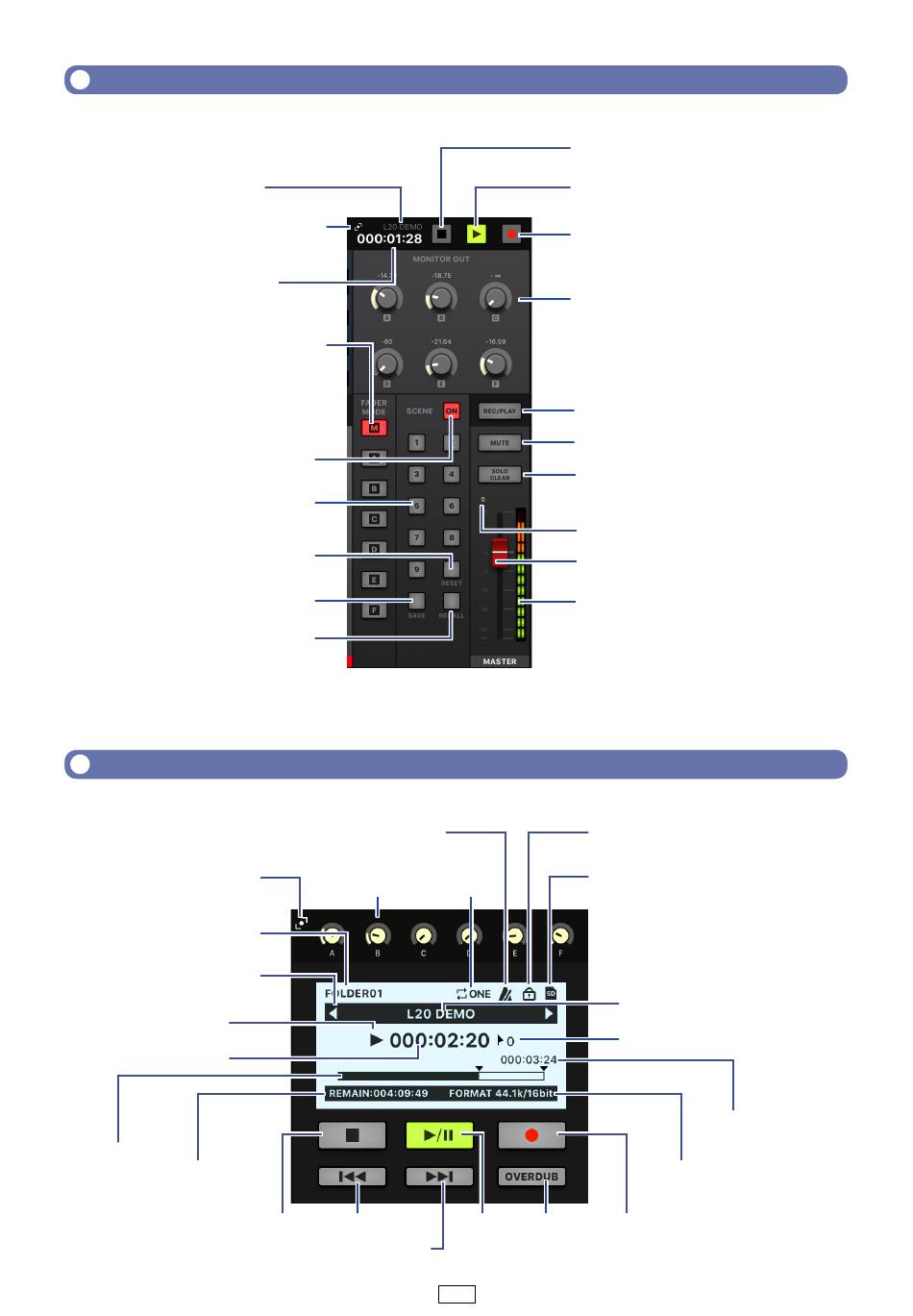

Master Section

Project Name
CHANGE PANEL Button
Tap to view Record Panel
Project Counter
FADER MODE Buttons
Create separate mixes for
Monitor A-F outputs
SCENE ON/OFF
Button
1 - 9 Buttons
SCENE RESET
SCENE SAVE
SCENE RECALL

Large Record Panel

CHANGE PANEL Button
Tap to view MONITOR OUT Panel
Project Folder Location
Prev/next project present
Project Status icon
Counter
Progress
Bar
Available
Record Time
Metronome Enabled Icon
MONITOR
Project
OUT Knobs PLAY MODE
STOP REW Button
Button
FF Button
STOP Button
PLAY Button
RECORD Button
MONITOR OUT Knobs
MASTER REC/PLAY Button
MUTE Button
SOLO CLEAR Button
Tap to unsolo any solo'd channels
Master Fader Level
Master Level Fader
Master Level Meters
Project Protected Icon
SD Card detected Icon
PLAY OVERDUB RECORD
Button Button Button
8
Project Name
Mark Number
Longest File Time
in Project
Project Audio
Format
