Honda Click 125i 2019 Owner's Manual page 33

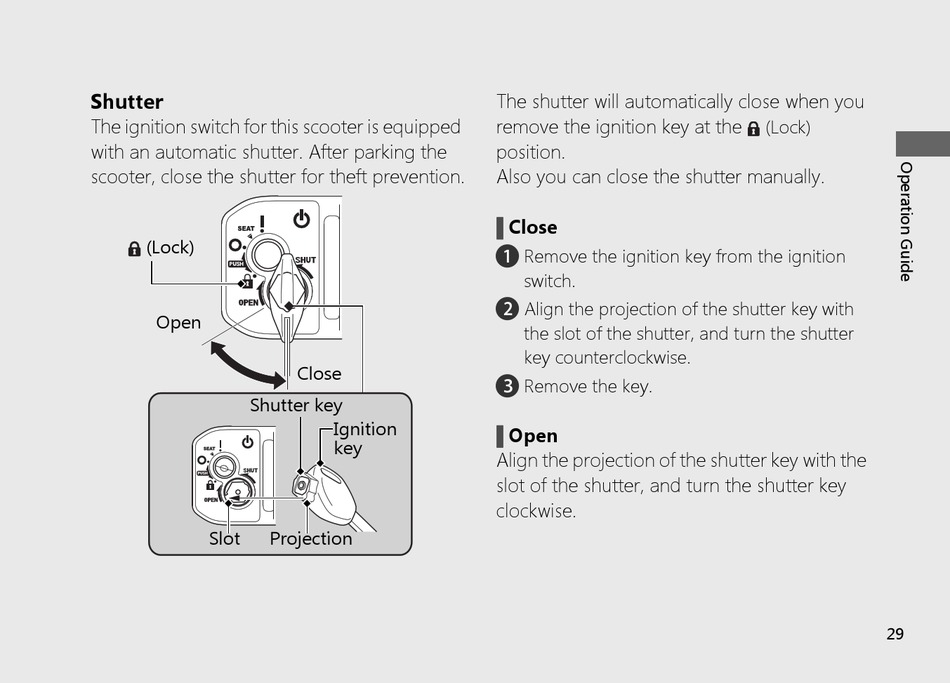

Shutter
The ignition switch for this scooter is equipped
with an automatic shutter. After parking the
scooter, close the shutter for theft prevention.
(Lock)
Open
Shutter key
Slot Projection
Close
Ignition
key
The shutter will automatically close when you
remove the ignition key at the
position.
Also you can close the shutter manually.
#
Close
Remove the ignition key from the ignition
!a
switch.
Align the projection of the shutter key with
!b
the slot of the shutter, and turn the shutter
key counterclockwise.
Remove the key.
!c
#
Open
Align the projection of the shutter key with the
slot of the shutter, and turn the shutter key
clockwise.
(Lock)
29
