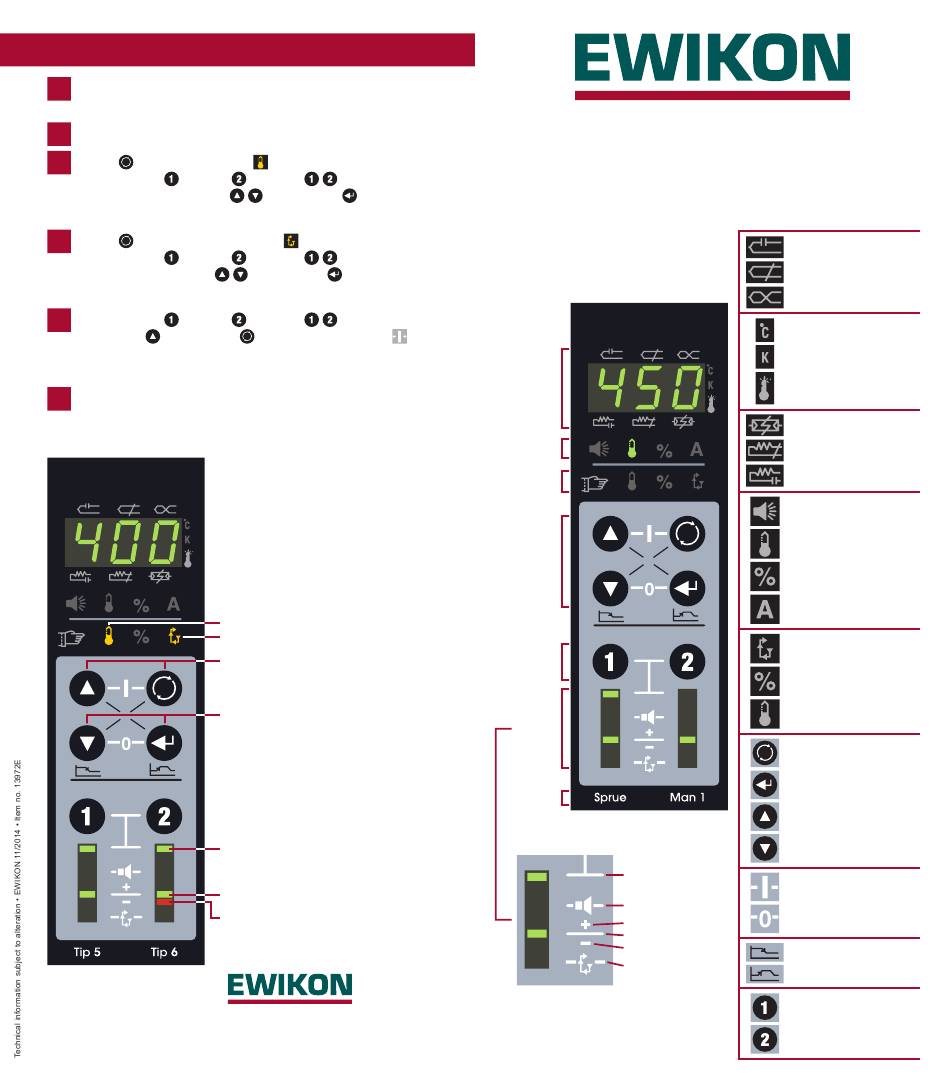

HPS-C-SLOT + Start Up Procedure
Dry cycle mold 3 – 4 times, apply full tonnage
1
(detects any pinched wires in advance of operation)
Turn "On" main disconnect
2
Select
automatic set point
3
Select Zone 1
, Zone 2
Enter automatic set point
Repeat for other zones or modules
Select
automatic/manual mode
4
Select Zone 1
, Zone 2
Enter "0" for automatic
Repeat for other zones or modules
Select Zone 1
, Zone 2
5
Press "Up"
and "Select"
Apply power to manifolds first (heat up large mass first)
Repeat for other zones or modules
Zones will read a low temperature alarm
6
Zones are close or holding set point when the
green temperature holding set point light is illuminated
Automatic set point
Automatic/manual mode
Press "Up" and "Select"
together (Power "On")
Press "Down" and "Enter"
together (Power "Off")
Zone select indication
(Press "1" and "2" together to select "both")
Temperature holding set point (Zone "On")
Low temperature alarm
or "both"
. Press enter
or "both"
. Press enter
or "both"
together (Power "On")
EWIKON Heißkanalsysteme GmbH
Siegener Straße 35, 35066 Frankenberg
Tel: +49 (0)64 51/50 10 ∙ Fax: +49 (0)64 51/50 12 02
info@ewikon.com ∙ www.ewikon.com
HPS-C-SLOT + Controller
Version 1.0 English
Basic Operation / Advanced Setup / Troubleshooting
Display
Actual Row
Setting Row
Entry Area
Zone Select
Zone
Status
Zone ID
Zone selected
Alarm
High Alarm
Zone "On"
Low Alarm
Manual Mode
Thermocouple Open
Thermocouple Pinched
Thermocouple Reversed
Degrees C
Type K Thermocouple
Uncontrolled Output
Open Fuse
Shorted Heater
Open Heater
Alarm Status
Actual Temperature
Actual % Output
Actual Current (Amps)
Automatic/Manual Mode
Manual % Output Set Point
Automatic Set Point
Select
Enter
Increment (Up)
Decrement (Down)
Power "On"
Power "Off"
Standby
Boost
First Zone (Zone 1)
Second Zone (Zone 2)
