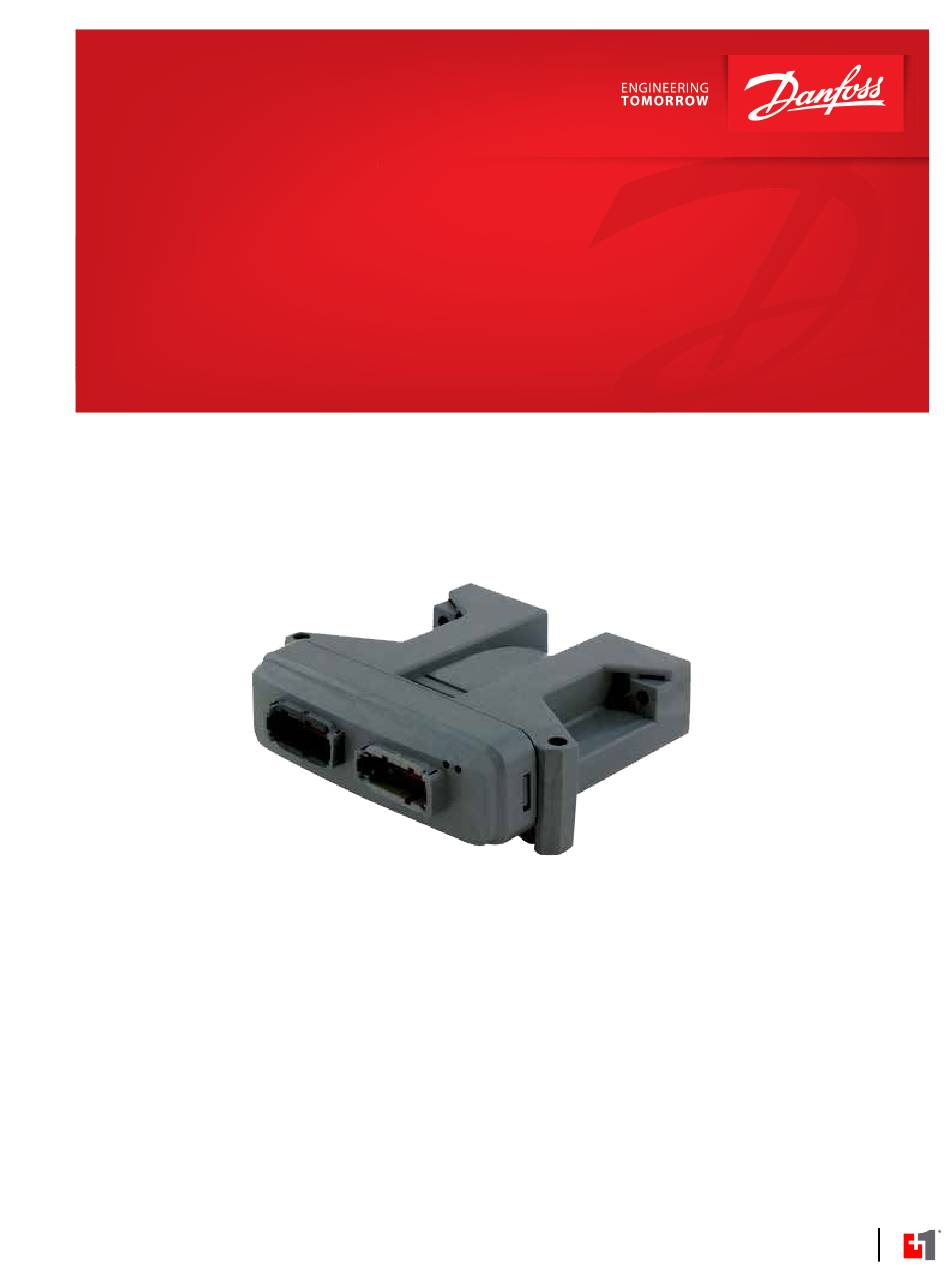

- Page 1 User Manual PLUS+1® Compliant OX024-x10 Function Block www.danfoss.com...
- Page 2 User Manual PLUS+1® Compliant OX024-x10 Function Block Revision history Table of revisions Date Changed July 2018 Rebranding 0101 July 2016 11063395 | AQ00000104en-US0101 © Danfoss | July 2018...
-
Page 3: Table Of Contents
User Manual PLUS+1® Compliant OX024-x10 Function Block Contents OX024-x10 Function Block Configure CAN....................................4 Inputs – Power Supply..................................5 Inputs – CAN Shield..................................5 Inputs – DOut Output Status................................6 Inputs – DOut/PVG Pwr Output Status.............................6 Inputs – MFOut Output Status..............................6 Outputs – Group....................................6 Outputs –... -
Page 4: Ox024-X10 Function Block
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block The IO_Module function block enables communication with the OX024-x10 expansion module so that additional outputs can be used. Configure CAN Set up CAN so that CAN messages can be transmitted to and from the I/O module. -
Page 5: Inputs - Power Supply
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block Input Type Range Description Enbl_ResetTest BOOL —— Determines if the I/O module volatile memory is periodically checked to ensure the device has not lost volatile configuration information due to temporary loss of power. -
Page 6: Inputs - Dout Output Status
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block Inputs – DOut Output Status The input status of output pins on connectors and pins C1p06, C1p07, C1p08, and C1p09 is described. Signal Type Direction Range Description Pin _Status ——... -
Page 7: Outputs - Digital Outputs
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block Signal Type Direction Range Description CurChgLim Output 22 – 333 CurChgLim defines the maximum rate of change of current for the group of outputs. This parameter is only used when the output’s PinConfig is 4 or 5. -
Page 8: Inputs - Can
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block Signal Type Direction Range Description DigOut BOOL Output —— Output command if PinConfig = 0, 1 or 2. OutputValue Output command if PinConfig = 3, 4, 5, 6, 7 or 8. The output range depends on Output 0 –... -
Page 9: Connections And Signal Overview
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block Connections and Signal Overview When more than one I/O module is used in an application, each block requires unique Inputs and Outputs bus connections. For example, IO_Bus, IO_Bus1, IO_Bus2 are needed. -
Page 10: Configure Communications Between Controller And I/O Module
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block Configure Communications Between Controller and I/O Module Several parameters control the communication between the controller and the I/O module. The I/O module hardware has two LEDs. The red LED blinks when the I/O module transmits a message. -
Page 11: Fixed Addressing Mode
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block Fixed Addressing Mode Fixed addressing mode allows for any pair of CAN message identifiers to be used for I/O module communication. In this mode, the I/O module relies on the RX_ID, TX_ID, and Frame parameters for communication with the function block. -
Page 12: Troubleshooting
User Manual PLUS+1® Compliant OX024-x10 Function Block OX024-x10 Function Block I/O Module CAN Message Identifiers (continued) CAN Shield Voltage [mV] KWP2000 Node Tx ID Rx ID 2100 – 2399 0x1B8 0x338 2400 – 2699 0x1C0 0x340 2700 – 2999 0x1C8 0x348 3000 –... - Page 13 User Manual PLUS+1® Compliant OX024-x10 Function Block 11063395 | AQ00000104en-US0101 | 13 © Danfoss | July 2018...
- Page 14 User Manual PLUS+1® Compliant OX024-x10 Function Block 11063395 | AQ00000104en-US0101 14 | © Danfoss | July 2018...
- Page 15 User Manual PLUS+1® Compliant OX024-x10 Function Block 11063395 | AQ00000104en-US0101 | 15 © Danfoss | July 2018...
- Page 16 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
