Info
• AK-XM 208C can be used as spare part for AK-XM 208B.
• AK-XM 208C opens and closes opposite the AK-XM 208B.
• There is no need to change settings.

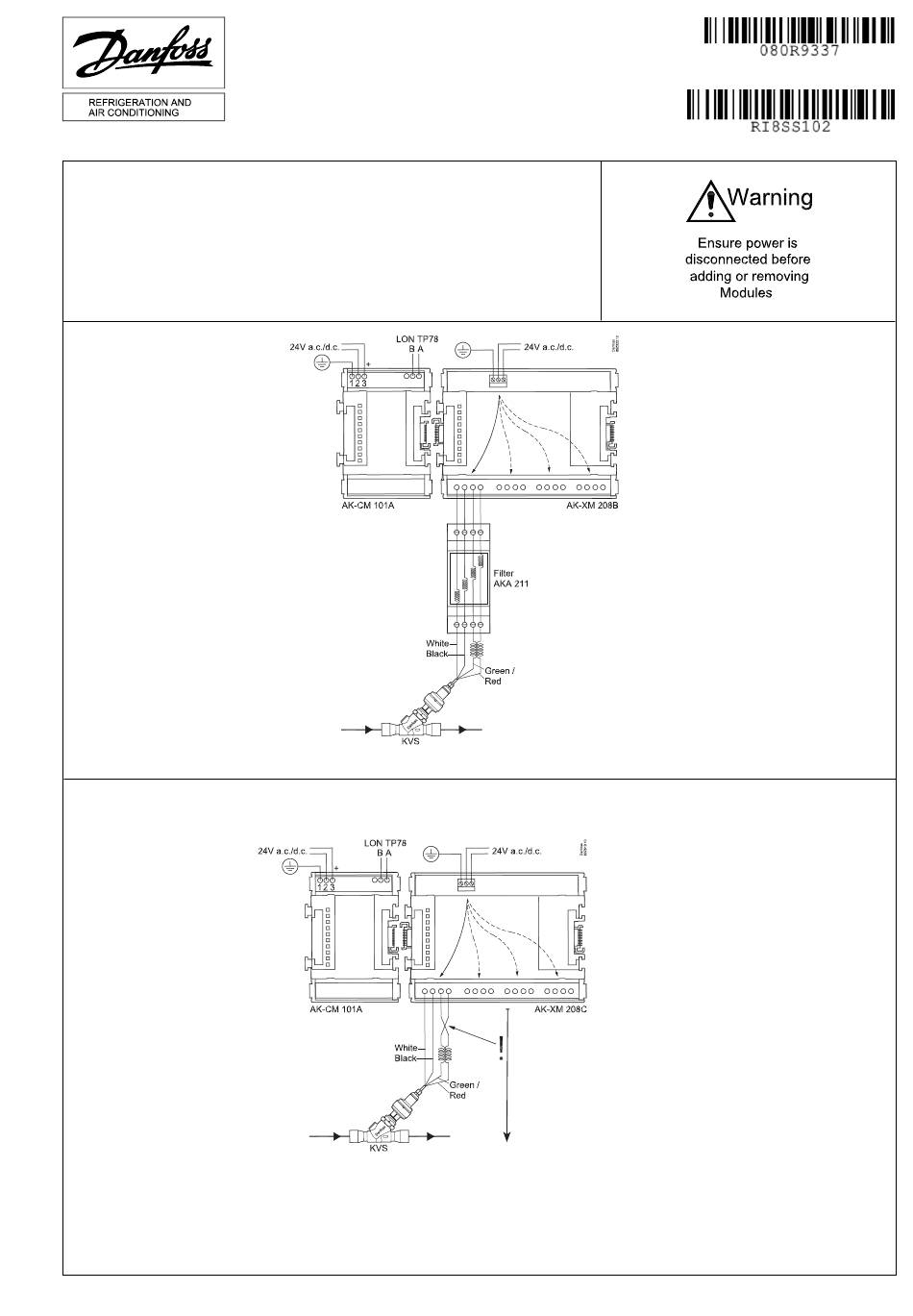

Old installation
with AK-XM 208B
New connections
with AK-XM 208C
RI8SS102
04-2019
Instructions
Replace of old AK-XM 208B
with AK-XM 208C
Remove AK-XM 208B
Remove the filter AKA 211 if installed
Filter AKA 211 must not be used.
Assure correct function by swapping two wires.
L = max. 100 feet. (30 m)
27↔28
31↔32
35↔36
39↔40
