Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage arising
from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Related Manuals for Display Mount Pro SSW004
Summary of Contents for Display Mount Pro SSW004
-
Page 1: Important Safety Information

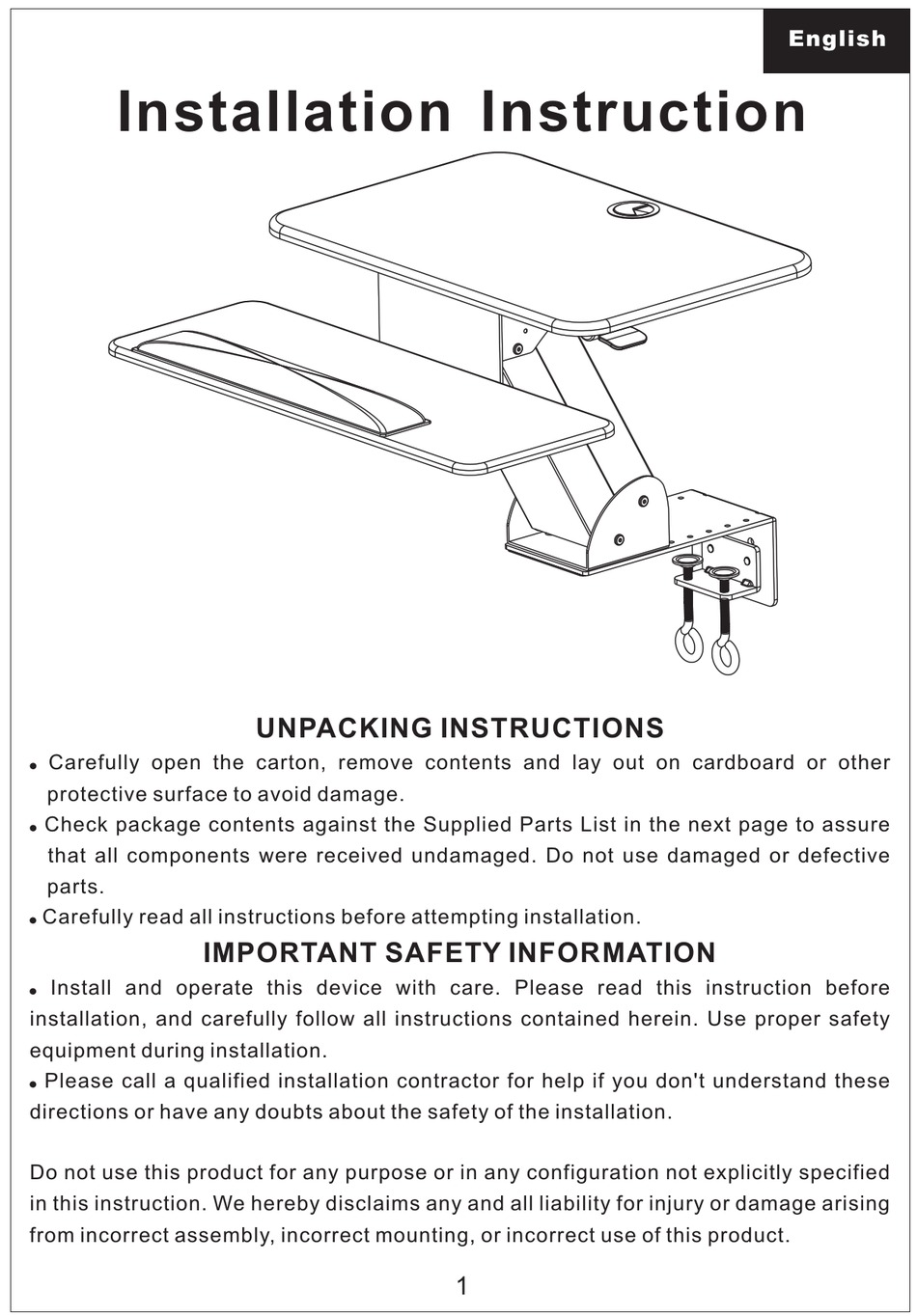

English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts. - Page 2 Supplied Par ts List (1) Platform-a (1) Keyboard Tray-b (1)Gas Spring Arm-c (1)Wrist Pad-d (1)L Plate-e (1) C-clamp-f (1) C-clamp Brace-g (2)M10x15 Bolt-h (8)M6x12 Bolt-i (4)M6x12 Bolt-j (2)M6x35 Bolt-k (2)Spacer-l (2)Square Pad-o (2)Square Pad-p (4)M6 Washer-m (4)M6 Nut-n 5mm thickness 2mm thickness (1)Allen Key-q (1)Wrench-r...
- Page 3 Connecting L Plate to Keyboard Tray Step 1 Warning: Ensure screws are secured firmly. Attaching Square Pads to the Back of Keyboard Tray Step 2...
- Page 4 Connecting L Plate to Gas Spring Arm Step 3 “L” plate can be installed in two positions. 1. Install in a high position for fitting the keyboard tray to the surface of desktop directly. 2. Install in a low position for fitting the keyboard tray below the surface of desktop.
- Page 5 Attaching Lever to the Back of Monitor Platform Step 5 Warning: Note: The lever can be installed Ensure screws are eigher on the right or the left secured firmly. side of monitor platform. Connecting the C-clamp Brace to Gas Spring Arm Step 6 Warning: Ensure screws are...
- Page 6 Attaching the C-clamp to the Edge of Desktop Step 7 Attaching Wrist Pad to Keyboard Tray Step 8...
- Page 7 Operating the Lever to Lift or Lower the WorkStation Step 9 Adjusting the Tension of Workstation Step 10 • If the weight of the monitor(s) makes it difficult to lift the workstation, adjust the screw at the back of the gas spring arm counterclockwise. •...
