Chapter 4: Using the RX‐1 to Monitor a Patient
Caution: Use only the specified, charger for this device (AC/DC adapter), as listed in the system components of this
manual. Using another AC adapter may damage the device and may create a safety hazard.
Time to recharge the battery.
Terminating a Recording
The recording is automatically terminated upon expiration of the recording duration timer set when configured by the
server.. Alternately, the recording can be terminated via a command from the monitoring center provided upon physician
orders. Upon termination, the device will automatically transmit remaining patient data on the next connection with the
server.

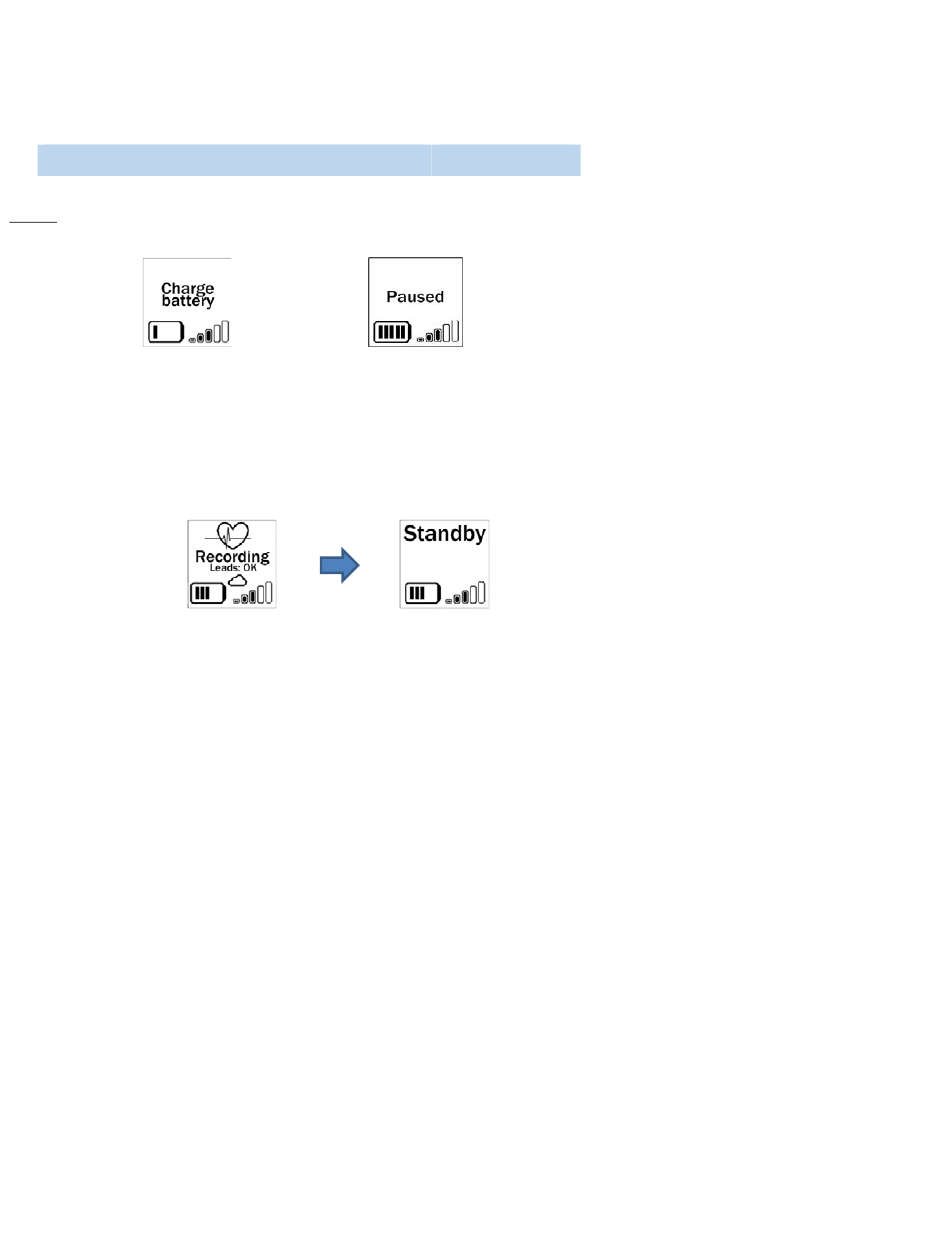

When the recording is complete, the RX-1 will transition from Recording Mode (left
above) to Standby. Remove the electrodes and device and return it to the
Battery fully charged.
monitoring center or clinic, as directed.
20
