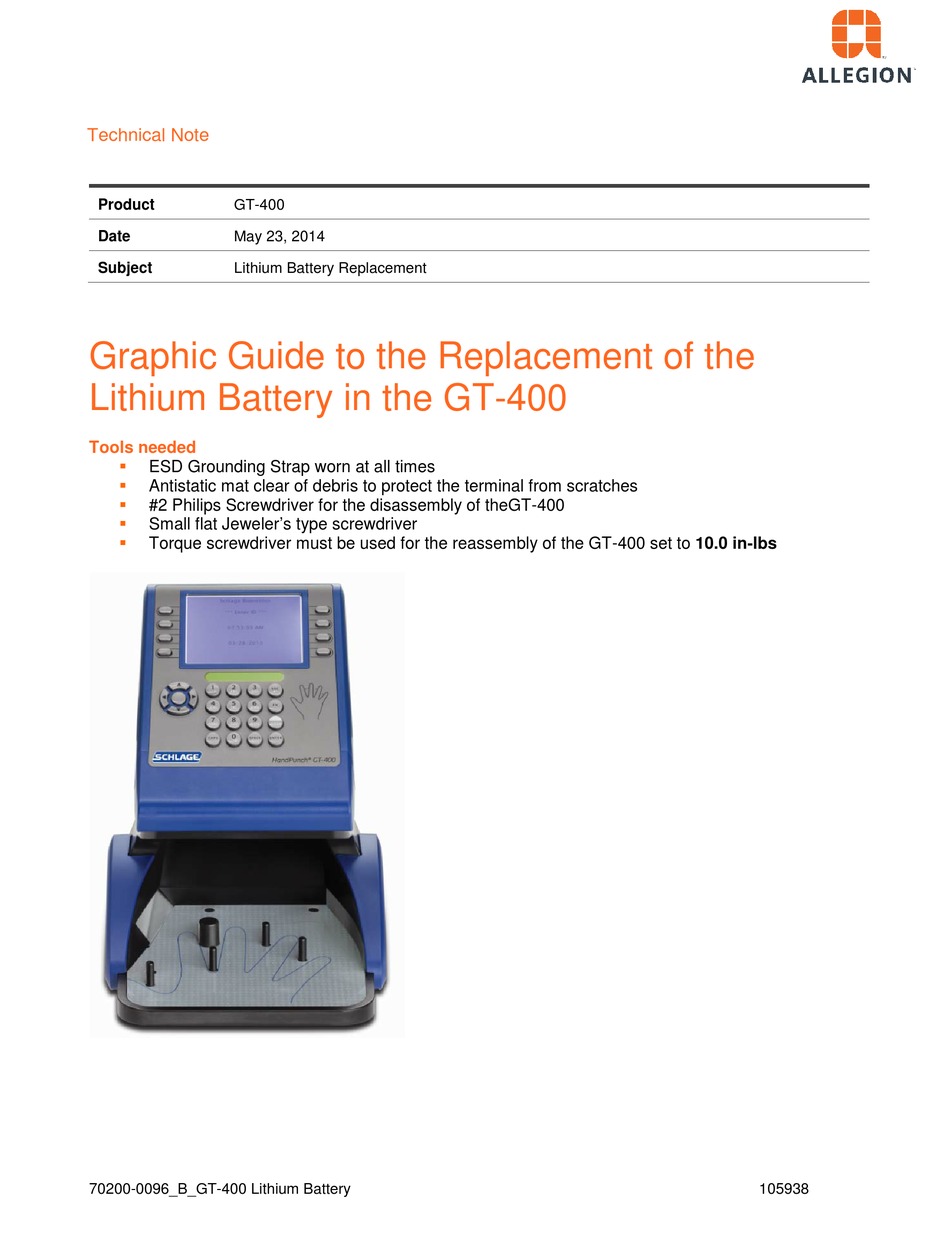

Technical Note
Product
GT-400
Date
May 23, 2014
Subject
Lithium Battery Replacement
Graphic Guide to the Replacement of the
Lithium Battery in the GT-400
Tools needed
ESD Grounding Strap worn at all times
Antistatic mat clear of debris to protect the terminal from scratches
#2 Philips Screwdriver for the disassembly of theGT-400
Small flat Jeweler's type screwdriver
Torque screwdriver must be used for the reassembly of the GT-400 set to 10.0 in-lbs
70200-0096_B_GT-400 Lithium Battery
105938

Advertisement

loading
Need help?

Need help?

Do you have a question about the GT-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Allegion GT-400

  • Page 1 Antistatic mat clear of debris to protect the terminal from scratches  #2 Philips Screwdriver for the disassembly of theGT-400  Small flat Jeweler’s type screwdriver  Torque screwdriver must be used for the reassembly of the GT-400 set to 10.0 in-lbs 70200-0096_B_GT-400 Lithium Battery 105938...
  • Page 2 Technical Note Removal of the back plate Lay the GT-400 terminal face down of a clean antistatic mat to protect the surface from scratches and thePCBs from ESD damage. Remove the two screws highlighted and set aside for reuse. Removal of the IO board...
  • Page 3 Technical Note Removal of the Power board Remove the two screws highlighted and set aside for reuse. Hold the power board by the edges and gently pull the board towards you and set aside. Removal of the back plate Remove the two screws highlighted and set aside for reuse.
  • Page 4 Technical Note Remove the tamper switch connector from the main board. Do not pull by the wires but depress the tab to release the connector. Removal of the lithium battery Carefully place the terminal on its top panel so that you are looking at the main board.
  • Page 5 Technical Note 1. Place a finger on top of the lithium battery so that it will not pop out and fall forward, into the top panel, when the battery is released. If that happens, the reader will need to be taken completely apart to retrieve the battery. 2.
  • Page 6 Technical Note Routing the battery cable if there is a backup battery installed Make sure that the battery cable is routed around the camera compartment as shown in the image above. The area highlighted in yellow needs special attention when installing the back plate, the wires here can be easily pinched.
  • Page 7 Technical Note Reinstalling the back plate Start with setting the back plate into the battery compartment and start rotating the back plate towards the top. If there is a backup battery installed, make sure that the BB-300 cable is not getting pinched in the lower right hand cable.
  • Page 8 Technical Note Installing back plate screws This point forward use the torque screwdriver set to 10.0 in-lbs Before screwing down the back plate make sure that neither the BB-300 cable nor the white camera cable will be pinched. Install these screws into the two the back plate inserts.
  • Page 9 Technical Note Secure the power board to the unit using the two screws shown in the image to the right. Reinstalling the IO board Align the IO’s 2 x 25 pin header and connector and gently press them together making sure that it is installed.
  • Page 10 Technical Note Plugging in the battery backup cable if installed Replacement complete. For additional information, please contact Customer Care at 877-671-7011. 70200-0096_B_GT-400 Lithium Battery 105938...
