3.2

Sensors

This section declares sensors that must be directly connected to the C60. These
signals will be fed back to the teams via CAN.
All GT cars must run:
Airbox pressure(s)

Airbox temperature(s)

Manifold/Boost pressure(s)

Manifold/Boost temperature(s)

Lambda(s)

Fuel flow meter

In addition to the above sensors, all GTLM cars must run:
Restrictor throat pressure(s) (Where applicable)

Cockpit temperature

Engine speed sensor

Oil catch tank level (See IMSA tech bulletin for sensor information)

Sensors must be installed in an IMSA approved location as identified in

Scrutineering System homologation documentation.

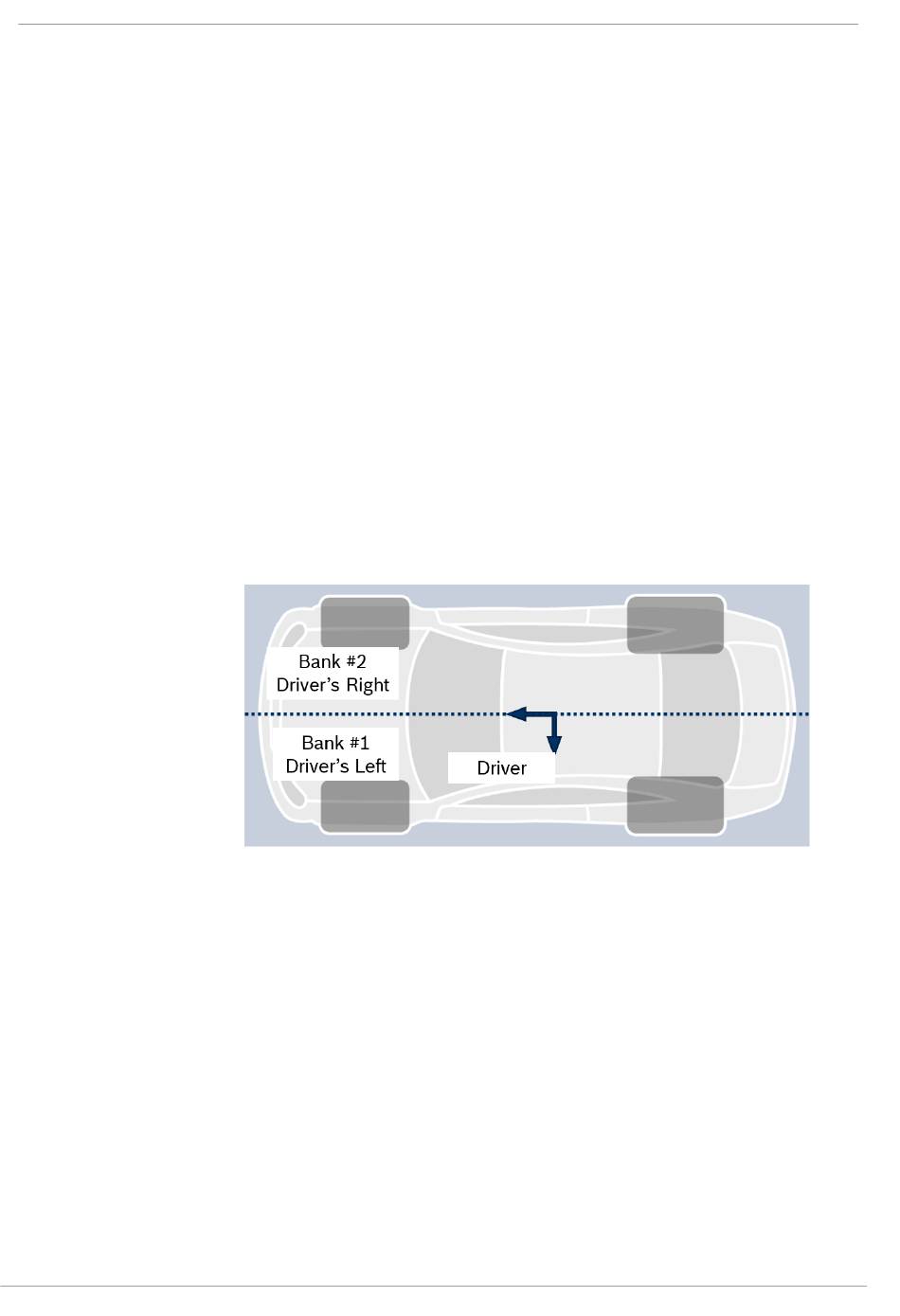

Figure 1 - Diagram displaying sensor mounting
