Lippert Components Solera Owner's Manual page 8

A

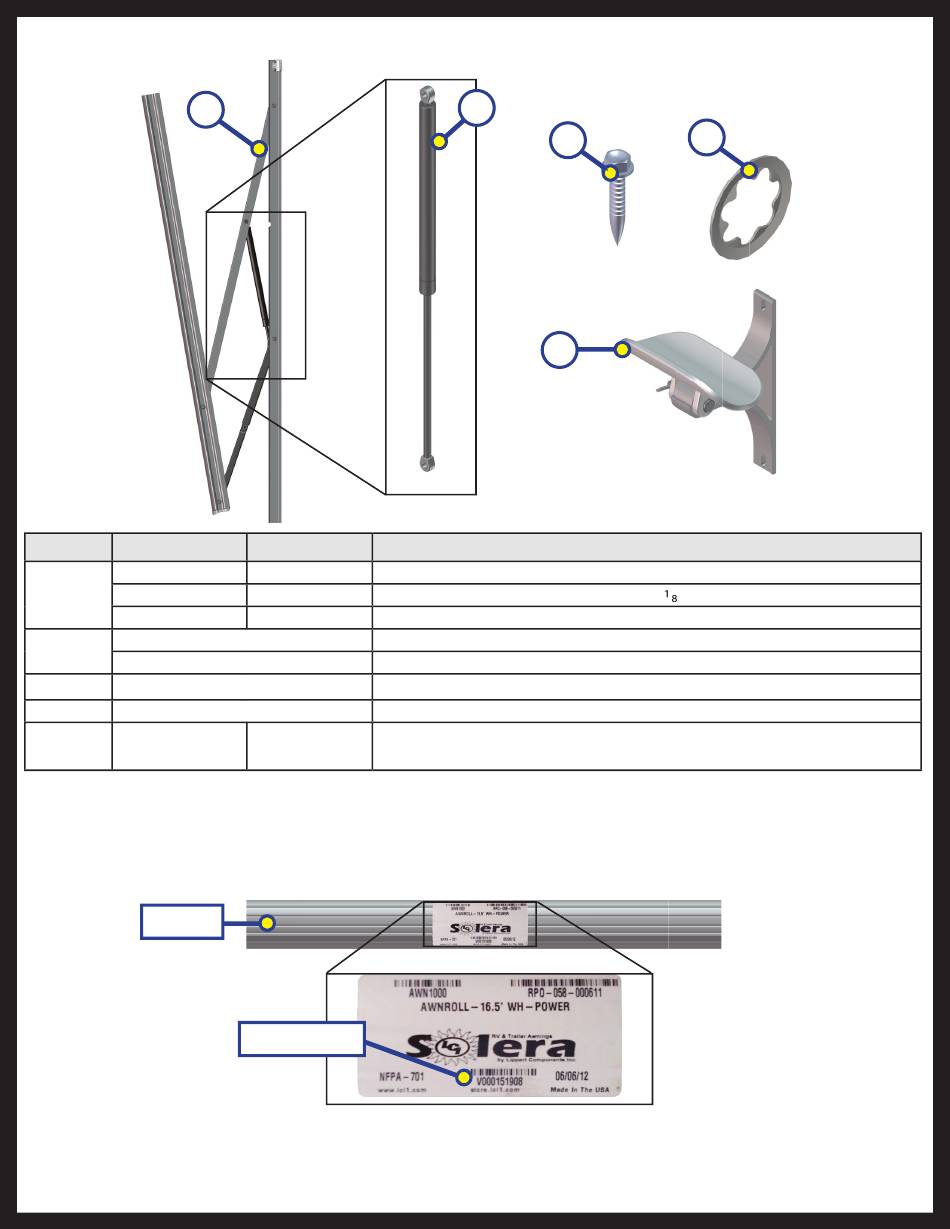

Callout White Part #
295742
A 260294
281152
B
C
D
E 289373
Awning Fabric and Roll Bar Replacement
To order replacement awning fabric and roll bar for your awning, locate the awning label on the roll bar. Locate the
variant code at the bottom of the label. Call LCI Customer Service at 574-537-8900 and provide the variant code.
Roll bar
Rev: 08.29.2014
Black Part # Description
295743 Support Arm Assembly (Short, 61") (One Arm)
266169 Support Arm Assembly (Pitched, 66 ⁄ ") (One Arm)
281154 Support Arm Assembly (Flat, 69") (One Arm)
280343 Gas Strut; 26"; 124 LBS (for Short and Flat Arm assemblies)
260282 Gas Strut; 124 - 144 LBS (for Pitched Arm assemblies)
286576 Screw - #14 - 10 x 1 ½ (arms to coach)
282484 Star Washer (for Gas Strut)
Awning Center Support Assembly
289374
NOTE: Only required for Solera Awnings greater than 21' in length
Variant Code
B
C
E
Page 8
D
Solera® Power Awning Owner's Manual
