Draper 65084 User Manual

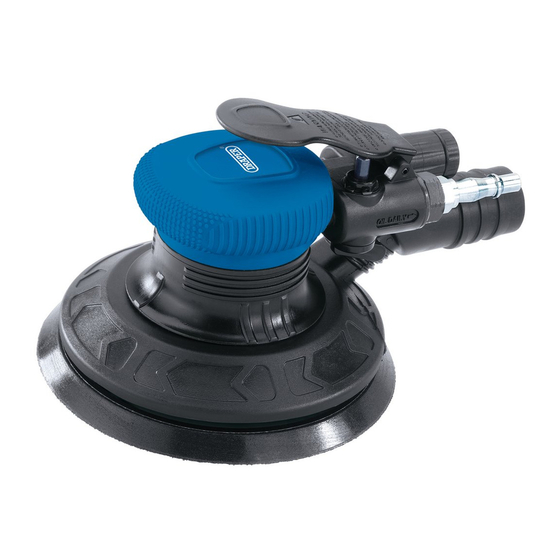

Dual action air composite sander
Hide thumbs Also See for 65084:
Table of Contents

Advertisement

Quick Links

Download this manual

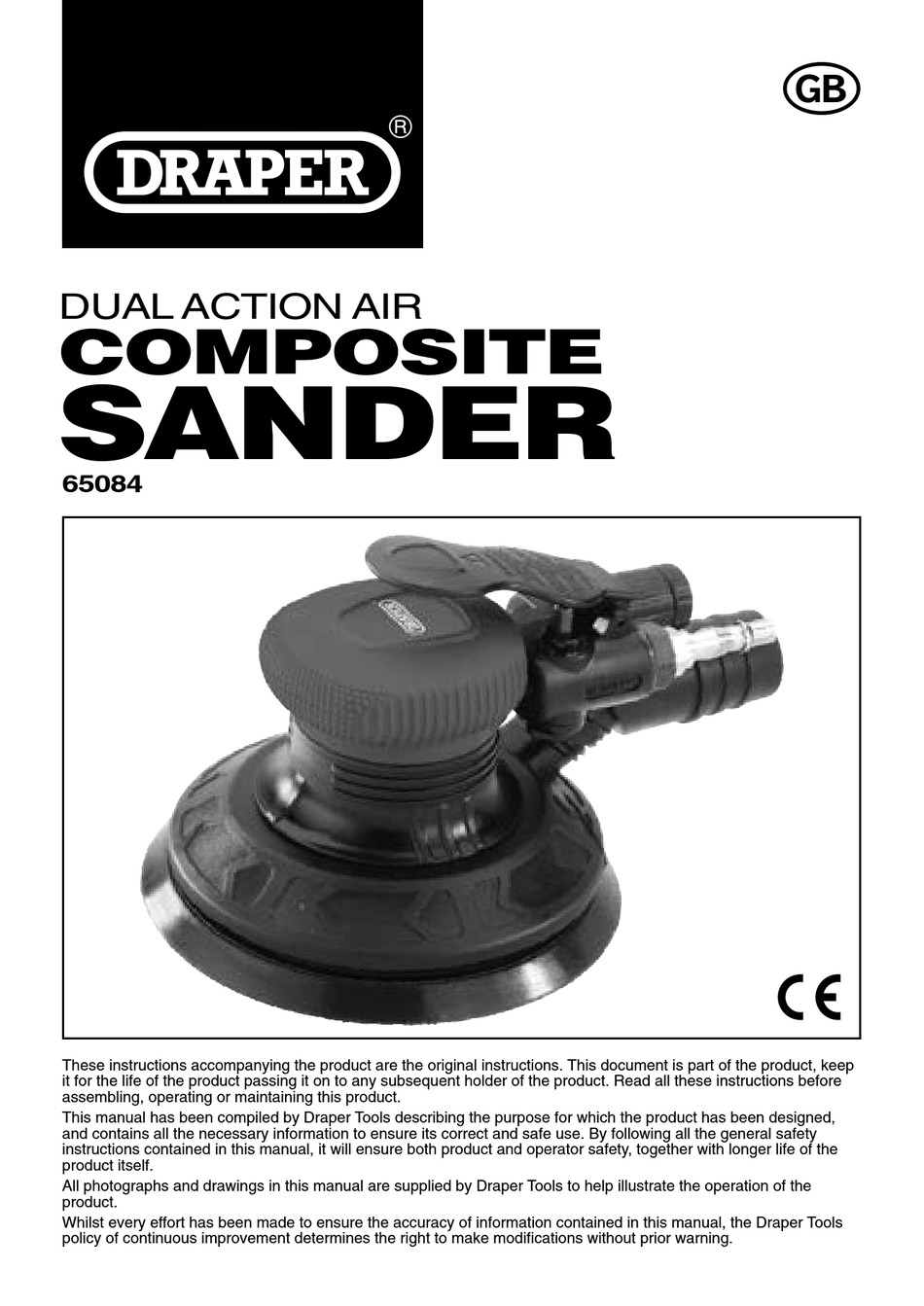

DUAL ACTION AIR
COMPOSITE
SANDER
65084
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65084 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 65084

Summary of Contents for Draper 65084

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................5 HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR COMPRESSED AIR .......
  • Page 4 This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    4.1 SCOPE Composite bodied air sander with hook and loop backing pad, suitable for 150mm/6"Ø abrasive sheets. 4.2 SPECIFICATION Stock No..........................65084 Part No......................... DAT-APS-SF Backing pad diameter ...................... 150mm/6"Ø Revolutions per minute (no load) ..................10,500r/min Max. operating air pressure ..................90psi (6.3bar) Average air consumption ..................

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: General Safety Instructions For Compressed Air

    HEALTH AND SAFETY INFORMATION before making any adjustments, carrying out maintenance operations or just finishing using the tool. Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine.

  • Page 8: Additional Safety Instructions For Air Sanders

    ADDITIONAL SAFETY INSTRUCTIONS FOR AIR SANDERS Important: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (1) Trigger. (2) Directional exhaust. (3) Dust outlet port. (4) Speed adjusting lever. (5) Sanding backing pad. (6) Shroud. (7) Airline coupling adaptor. – 9 –...

  • Page 10: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Air Supply

    This air tool operates at a maximum pressure of 90psi and must be controlled via a combination pressure regulator, in-line lubricator and moisture filter such as the Draper range (see you local Draper stockist) which with proper maintenance will ensure a constant supply of dry air and lubricating oil at all times (see illustration below).

  • Page 12: Assembly

    ASSEMBLY CONNECTION TO THE AIR SUPPLY – FIG.2 Whip hose: To connect the air sander to an air line, a ¼”BSP male thread whip hose will be required. The connection must be tight for an airtight union. ATTACHING THE HOOK & LOOP SHEETS –...

  • Page 13: Operation And Use

    10. OPERATION AND USE 10.1 OPERATION & AIR REGULATION – FIG.5 − To start the sander press down trigger (1), and release again to slow down/stop the pad. − To alter the amount of air being fed into the sander, varying the speed, turn lever (4) during operation.

  • Page 14: Maintenance And Troubleshooting

    Motor vane broken. Return to service centre. Tool will not shut off. ‘O’ rings throttle valve Replace ‘O’ ring or return to dislodged from seat inlet service centre. valve. We recommend the use of Draper Air Tool Oil: – 14 –...

  • Page 15: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. 13.
  • Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
