3.2 Fitting the feet to the stand

The MultiTest 2.5-i and MultiTest 5-i are supplied with rubber feet. Support the stand and
fit the four rubber feet to the base of the stand.

3.3 Fitting the loadcell to the crosshead

Single-column stands
Ensure the stand is switched off.
Screw the adjustable handle lever with the red button into the crosshead dovetail. This
lever is designed to tighten without full rotation. Hold the button on the top to raise and
disengage the lever, and turn it away from the direction required. Release and turn, and
repeat as required.
Do not tighten the lever without a loadcell attached, or the dovetail can become
distorted.
4  Mecmesin

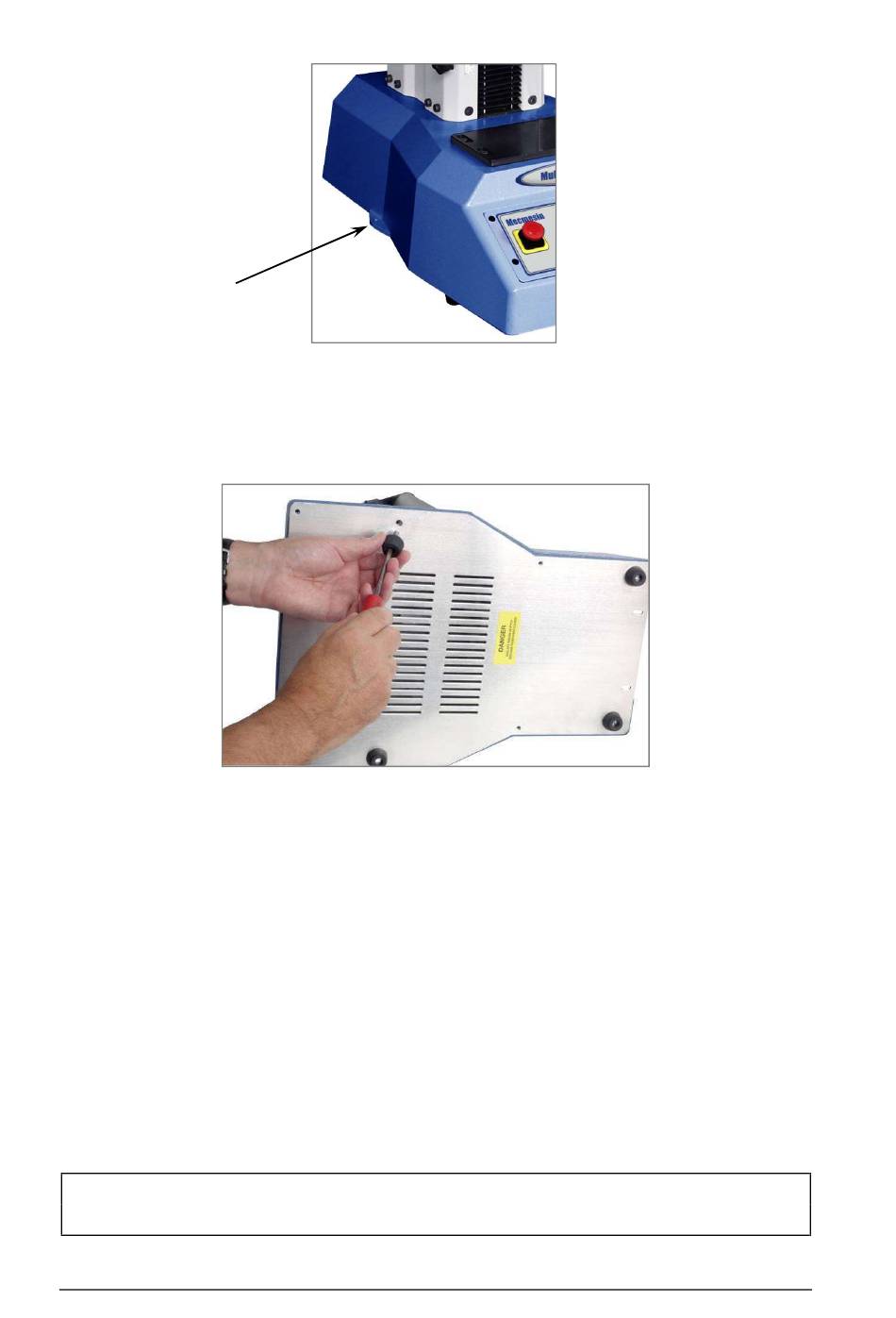

Locating eyes on MultiTest 5-i
Fitting rubber feet to the base of the test stand
