4. Vortex-i Assembly and Installation

4.1 Fitting the crosshead to the Vortex-i

Slide the crosshead onto the two support columns and tighten both securing thumb-screws.
Different height samples can be accommodated by moving the complete crosshead up
and down. Additional adjustment is available by moving the top-load carrier.
If a top-load is to be used, the securing knob (arrowed) is generally left undone during
measurement so the carrier can slide up and down. If a top load is not to be used,
securely tighten the locking knob after adjusting to the height required.

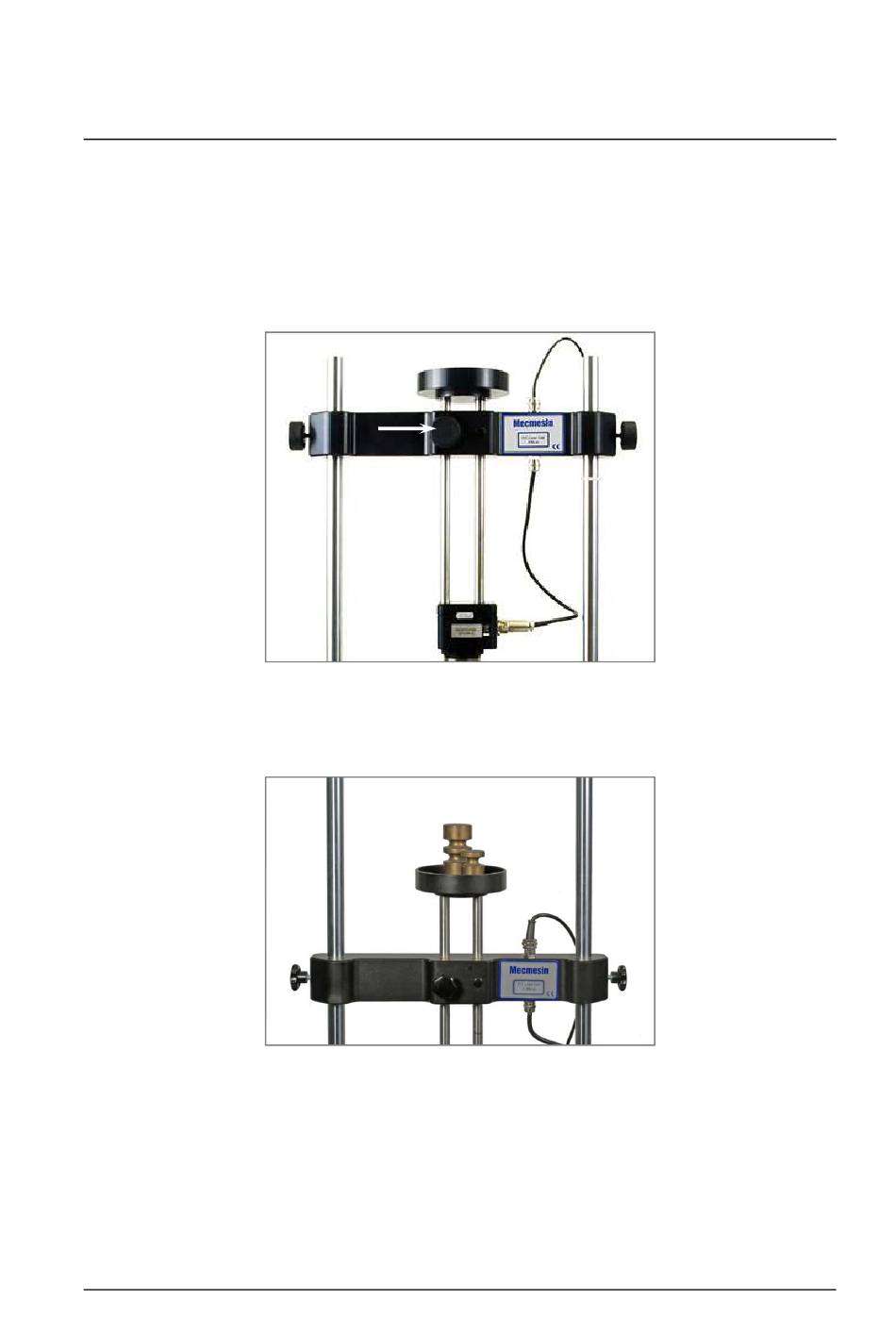

Crosshead fitted to Vortex-i with top-load weights in the carrier

4.2 Connecting the intelligent torque cell

Align the electrical connector of the ITC with the mating socket on the test stand. Gently
push the connector to locate then tighten the knurled locking ring in a clockwise
direction.
