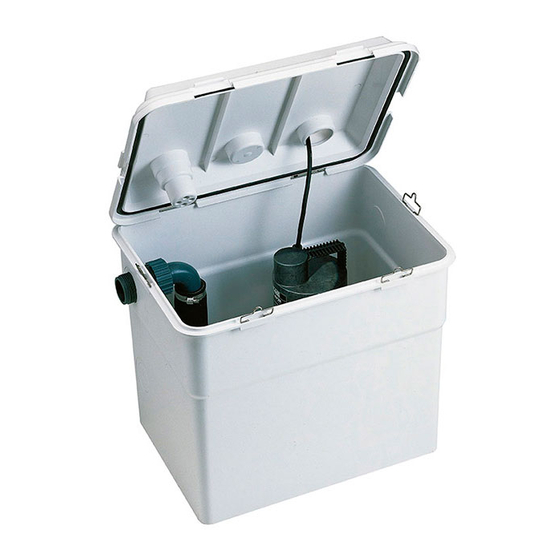

DAB NOVA BOX Instruction For Installation And Maintenance
  1. Manuals
  2. Brands
  3. DAB Manuals
  4. Water Pump
  5. NOVA
  6. Instruction for installation and maintenance

DAB NOVA BOX Instruction For Installation And Maintenance

Hide thumbs Also See for NOVA BOX:

Advertisement

Quick Links

ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE
INSTRUCTIONS DE MISE EN SERVICE ET D'ENTRETIEN
INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
INSTALLATIONSANWEISUNG UND WARTUNG
INSTRUCTIES VOOR INGEBRUIKNAME EN ONDERHOUD
INSTRUCCIONES PARA LA INSTALACION Y EL MANTENIMIENTO
INSTALLATIONS - OCH UNDERHÅLLSANVISNING
ИНСТРУКЦИИ ПО МОНТАЖУ И ТЕХНИЧЕСКОМУ ОБСЛУЖИВАНИЮ
INSTRUCTIUNI DE INSTALARE SI INTRETINERE
NÁVOD NA INSTALACI A OBSLUHU
NOVA BOX

Advertisement

loading
Need help?

Need help?

Do you have a question about the NOVA BOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAB NOVA BOX

Summary of Contents for DAB NOVA BOX

  • Page 1 INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE INSTALLATIONSANWEISUNG UND WARTUNG INSTRUCTIES VOOR INGEBRUIKNAME EN ONDERHOUD INSTRUCCIONES PARA LA INSTALACION Y EL MANTENIMIENTO INSTALLATIONS - OCH UNDERHÅLLSANVISNING ИНСТРУКЦИИ ПО МОНТАЖУ И ТЕХНИЧЕСКОМУ ОБСЛУЖИВАНИЮ INSTRUCTIUNI DE INSTALARE SI INTRETINERE NÁVOD NA INSTALACI A OBSLUHU NOVA BOX...
  • Page 2 DICHIARAZIONE DI CONFORMITÀ CE (FR) DÉCLARATION DE CONFORMITÉ CE Noi, DAB Pumps S.p.A. - Via M.Polo, 14 – Mestrino (PD) Nous, DAB Pumps S.p.A. - Via M.Polo, 14 – Mestrino – Italy, dichiariamo sotto la nostra esclusiva responsabilità (PD) – Italy, déclarons sous notre responsabilité exclusive che i prodotti ai quali questa dichiarazione si riferisce sono que les produits auxquels cette déclaration se réfère sont...
  • Page 3 EG-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE (RU) ЗАЯВЛЕНИЕ О СООТВЕТСТВИИ СЕ Vi, DAB Pumps S.p.A. - Via M.Polo, 14 – Mestrino (PD) – Мы, DAB Pumps S.p.A. - Via M.Polo, 14 – Mestrino (PD) Italy, försäkrar under eget ansvar att produkterna som denna –...
  • Page 4 ITALIANO FRANÇAIS page ENGLISH page DEUTSCH seite NEDERLANDS bladz ESPAÑOL pág SVENSKA РУССКИЙ стр. ROMANA pag. ČESKY strana...
  • Page 5 3 MODALITÁ DI IMPIEGO NOVA BOX è un sistema premontato, pronto alla posa, senza bisogno di regolazioni, ideale per la raccolta e lo smaltimento di scarichi domestici da locali seminterrati, situati sotto il livello della rete fognaria.

  • Page 6: Table Of Contents

    INSTALLATION The NOVA BOX is supplied with a NOVA 300 pump that is not connected to the tank couplings. For the part references concerning assembly, see the assembly diagram on page 12...

  • Page 7: Installation

    ENGLISH Instructions for assembly: Remove the tank cover, releasing the 6 clips(229). The maximum level reached in the tank with the standard float is 285 mm from the tank bottom. If it is necessary to maintain a lower maximum level, the standard float must be replaced with the float type B (standard supply) (fig.

  • Page 8: Maintenance

    ENGLISH MAINTENANCE After starting up the plant, it is advisable to inspect and clean it, especially the no return valve, about every three months. This interval may be increased after the first inspections have given a favourable outcome. Clean the pump accurately, removing any foreign bodies stuck in the intake grille and check that the float moves freely.
  • Page 9 ENGLISH ASSEMBLY DIAGRAM FLOAT TYPE B “SHOWER” BRETHER GROUP / SAFETY VALVE 139. PUMP SCREW CLAMP Ø 44 BREATHER GROUP / SAFETY VALVE 100. TANK 137. CHECK VALVE 1¼” FLOAT BALL COVER 157. COLLAR 1¼” 16a. SEAL RING Ø 15 mm 109.

  • Page 10: Assembly Diagram : Shower Float Kit

    SCHEMA MONTAGGIO: KIT GALLEGGIANTE DOCCIA-SCHÉMA DE MONTAGE: KIT FLOTTEUR DOUCHE ASSEMBLY DIAGRAM: SHOWER FLOAT KIT-MONTAGESCHEMA: KIT SCHWIMMER DUSCHE MONTAGESCHEMA: SET VLOTTER DOUCHE-ESQUEMA DE MONTAJE: KIT FLOTADOR DUCHA MONTERINGSSCHEMA: FLOTTÖRSATS DUSCH -МОНТАЖНАЯ СХЕМА: КОМПЛЕКТ ПОПЛАВКА ДЛЯ ДУША SCHEMA DE MONTAJ: KIT PLUTITOR DE DUS - SCHÉMA ZAPOJENÍ: KIT SHOWER FLOAT...

  • Page 11: Example Of Installation

    ESEMPIO DI INSTALLAZIONE / EXEMPLE D'INSTALLATION / EXAMPLE OF INSTALLATION INSTALLATIONSBEISPIEL / INSTALLATIEVOORBEELD / EJEMPLO DE INSTALACION / INSTALLATIONSEXEMPEL ПРИМЕР МОНТАЖА / EXEMPLU DE INSTALARE / PŘÍKLAD INSTALACE...
