Repose Multi C-Air User Manual page 18

VAL Technology - Angle Alteration
To alter the angle take the following steps. You may need two people to carry out the pin alteration.
Warning - DO NOT attempt to do this alteration if you feel that the movements that you need to
achieve with the chair, to carry out the changes, will cause you discomfort or problems.

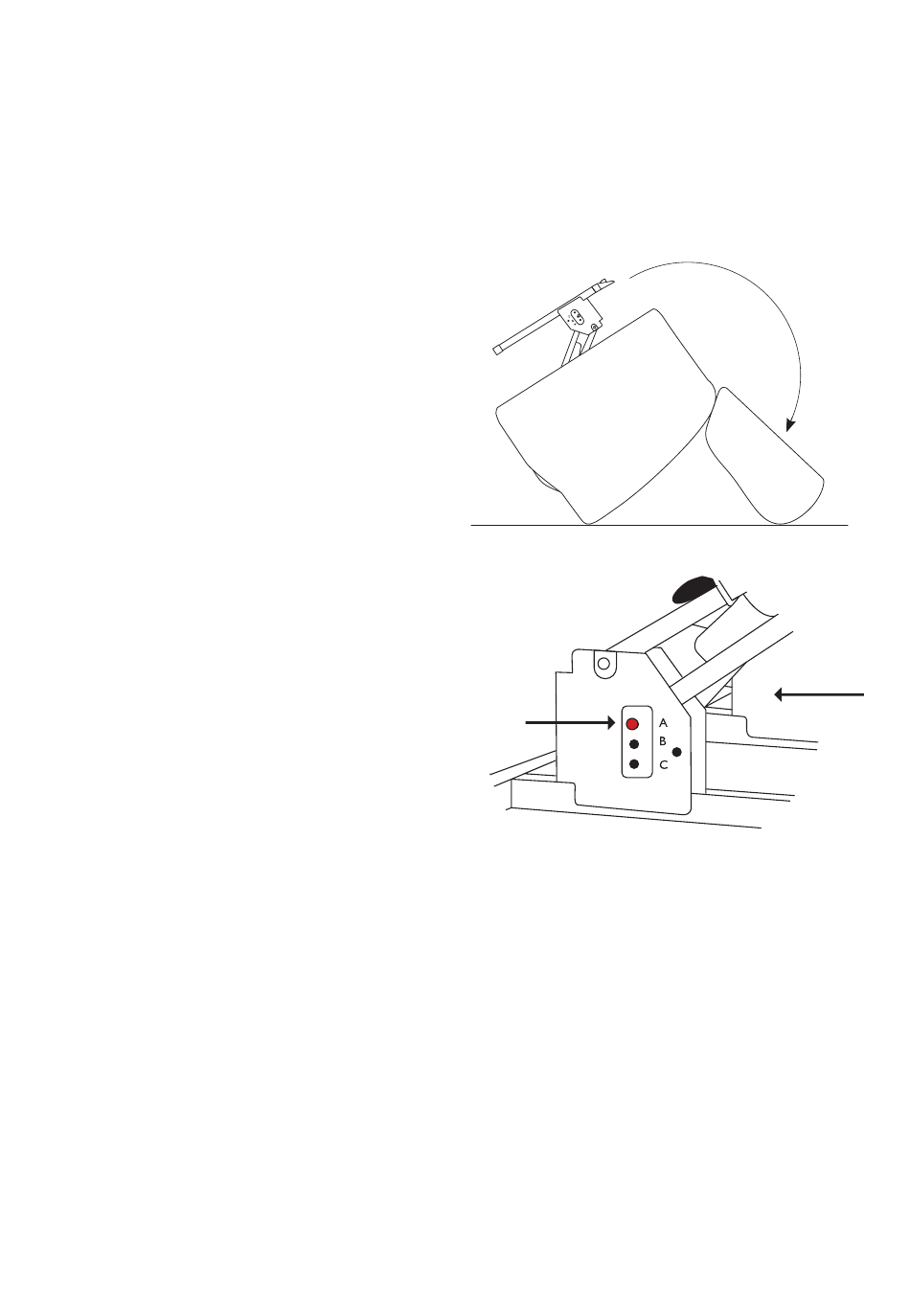

Step 1
Tip the chair forward so it rests on the floor
on both the end of the arms and top of the
backrest ensuring that the pins on either side
of the chair are visible. When tipping the chair
over ensure that you take care to protect the
back and arms when they touch the floor.
Step 2
Remove the clips from both pins on either
side of the chair. Then remove the pins and
place the bar level with the required setting -
a, b or c and then place the pins back into the
required holes (same place on both sides).
Step 3
Put the clips back into place on both sides.
Step 4
Bring the chair back up to its normal resting
position on its base.
18
Pin
Clip
