Pc based diagnostic adapter for heating devices of the thermo series, thermo s series, gbw 300 type

Hide thumbs Also See for Thermo Test:

Table of Contents

Available languages

Heater hook-up

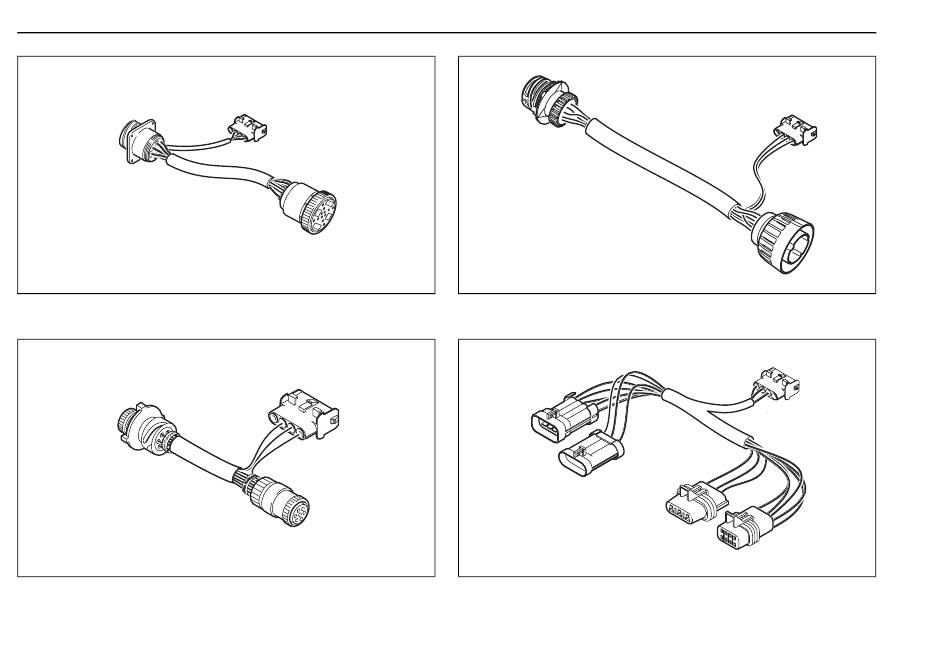

Fig. 6:

Connector adapter for heaters Thermo 230/300/350

(Van Hool), P/N 926 37_

Fig. 7:

Connector adapter for heaters DW 230/300/350 and

Thermo 230/300/350 (MB/Citaro), P/N 662 65_

Fig. 8:

Connector adapter for heaters Thermo 230/300/350

(Neoman Starliner II), P/N 9013 532_

Fig. 9:

Connector adapter for heaters NGW, LGW, GBW 300

P/N 9007 825_
