SPHEROS Thermo Test

Electrical interfaces

9 Electrical interfaces

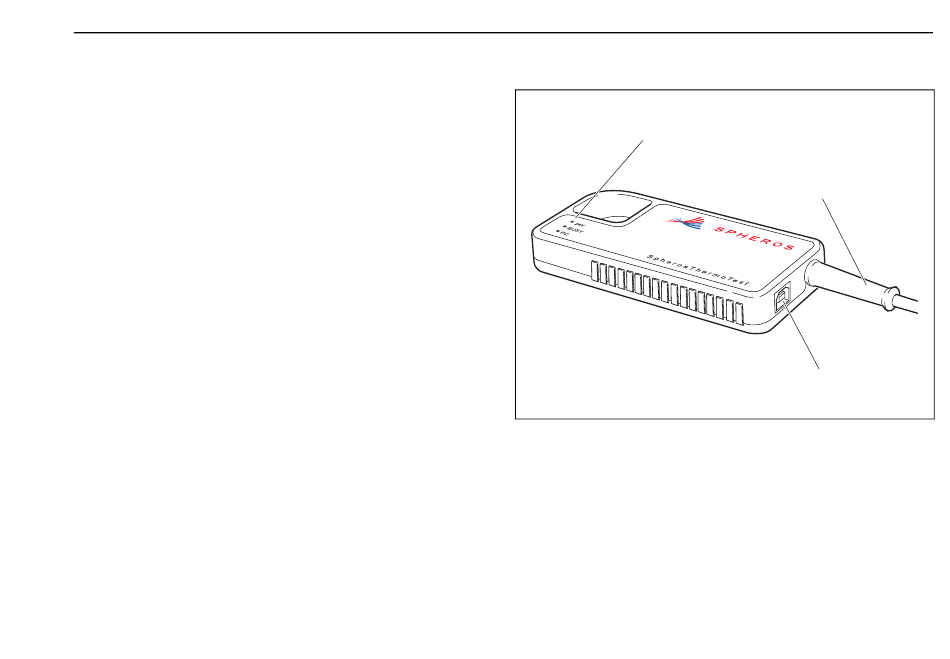

The device has two electrical interfaces. The heater to be checked is
hooked-up through a cable of approx. 3 m length, which is connected to
the diagnostic adapter steadily. All Thermo S series heaters are already
Status LEDs
equipped with an appropriate connector. Please, while connecting,
press the connectors together until they snap into place clearly audible.
For all other heating devices, please use the supplied adapter wiring
Hook-up cable (approx. 9.8')
harness. Consider that you must use it in conjunction with the already
applied adapters.
The device features a full-speed USB 2.0 port. This USB port is compat-
ible with high-speed USB 2.0. The device may also connected to a
computer that has an USB 1.1 interface.
Connect the diagnostic adapter to your computer using the provided
USB 2.0 cable. Make sure that the used USB cable is not longer than
2 m.
Connect plugs and cables only to such counterparts and devices that
USB port
were designated for that.
41
