SPHEROS Thermo Test

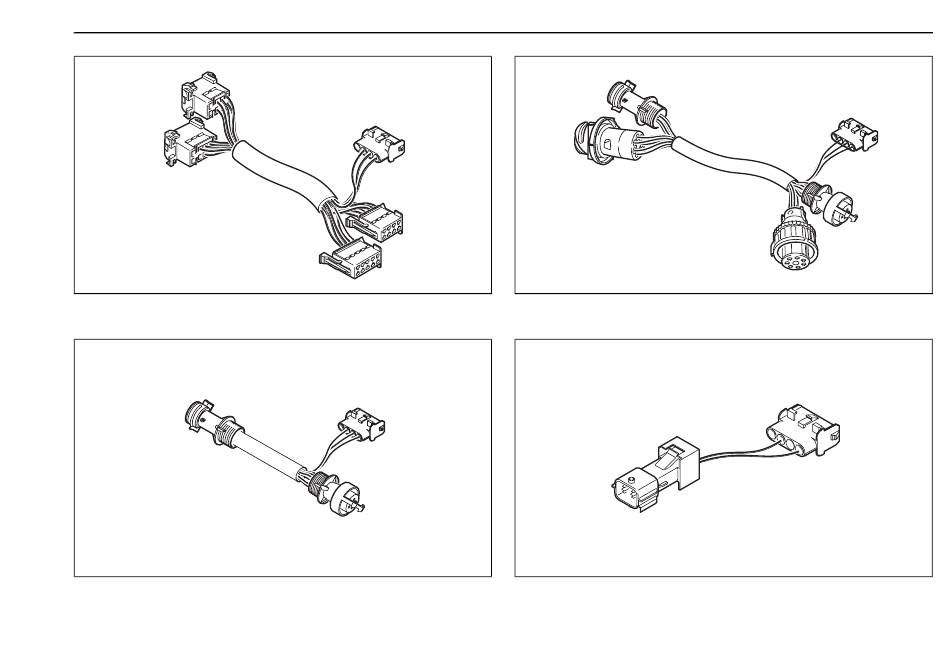

Fig. 2:
Connector adapter for heaters Thermo 230/300/350
(Setra, MAN), P/N 208 65_
Fig. 3:
Connector adapter for heaters Thermo 230/300/350
(MAN, Neoplan), P/N 226 56_
Fig. 4:
Connector adapter for heaters Thermo 230/300/350
(MB 0404), P/N 883 36_
Fig. 5:
Connector adapter for heaters Thermo 230/300/350
(RVI), P/N 926 29_
Heater hook-up
43
