Introduction
With digital dual-core fuzzy logic control processing technology
and intelligent analysis algorithm, the detector can detect infrared
rays released from human body. Featuring automatic temperature
compensation and resistance to airflow technology, it can identify
interfering signals and human movement signals, thus preventing
false alarm. Being able to detect human movement within 8-meter
cone space, it is suitable for applications in halls, hallways, etc. Its
low power feedback function enables users to get the SMS alert
about low battery when it is connected to GSM alarm system.

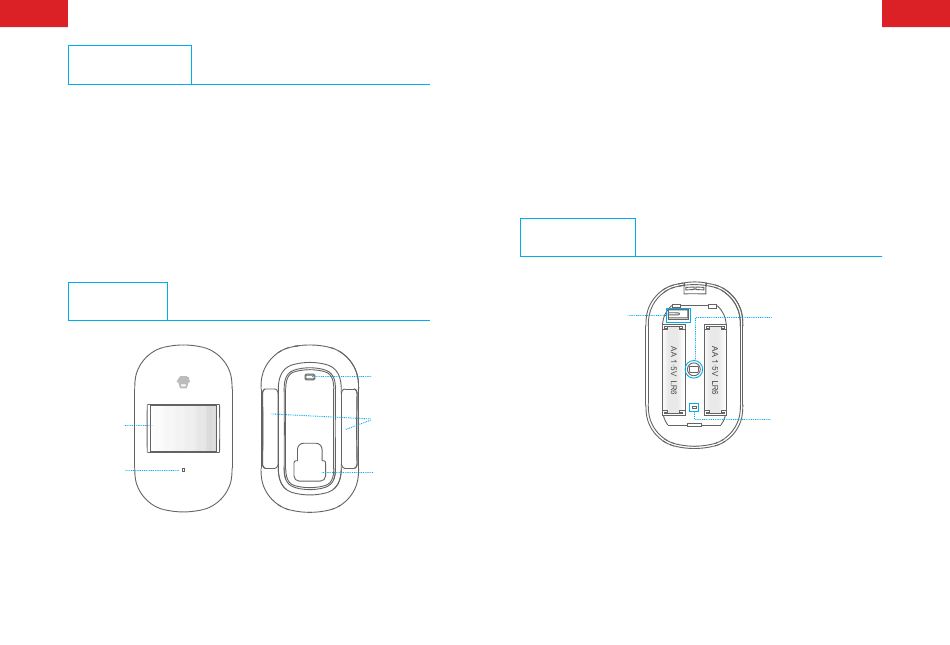

Overview
Detection
Lens
LED
Indicator
LED Indication
Flash continuously: Self-testing.
Flash once: Intrusion is detected.
Flash twice: 3 minutes testing mode is finished, enters into power
saving mode.
Flash once per 3 seconds: Low battery indication. Users will receive
SMS notification if detector was connected with panel. Please
change the batteries immediately.
PCB Layout
Test Button
Double-sided
Tape Stick
Place
Bracket Slot
Infrared sensor:
motion. Please do not touch the surface and always keep it clean.
Tamper switch:
switch is triggered and then generates an alarm signal.
Tamper Switch
It detects the infrared rays released by human body
Once the case is opened in work mode, the tamper
EN
Infrared Sensor
LED Indicator
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smanos MD2300
Summary of Contents for Smanos MD2300
- Page 1 LED Indication Introduction Flash continuously: Self-testing. Flash once: Intrusion is detected. Flash twice: 3 minutes testing mode is finished, enters into power With digital dual-core fuzzy logic control processing technology and intelligent analysis algorithm, the detector can detect infrared saving mode. rays released from human body.
- Page 2 Detection Range Top View Side View Note: If the control panel beeps twice when the above operation is done, it means the detector has been connected before. Connect the PIR Motion Detector Working Mode Connecting PIR motion detector is to build a wireless connection between the detector and the control panel.
- Page 3 Power Saving Mode Installation The product features power-saving design. If the detector detects human movement twice in 3 minutes, it will switch to the sleeping state to save power. At this time, the LED will not flash and no alarm. After making sure the detector works normally, do as follows: After no movement within the next 3 minutes, the detector switches back to the working state automatically.
- Page 4 3. Test the PIR motion detector Installation Notices Press the test button at the back. It switches to the testing mode and sustains for 3 minutes. Walk in the detection scope and observe Pay attention to the following during installation: the LED.
-
Page 5: Specifications
3. Avoid facing to glass windows or Specifications doors Strong light interferes with Power Supply: DC 3 V (AA 1.5 V alkaline battery x 2) detection sensitivity. In addition, Standby Current: < 13 uA complicated situations, such as Alarm Current: <... - Page 6 Détecteur de mouvement PIR MD2300 PIR bewegingsdetector MD2300 Detector de movimiento IRP MD2300 Detector de movimento PIR MD2300 Rilevatore di movimento PIR is herewith confirmed to comply with the requirements set out in the EC Council Directive 2014/53/EU Radio Equipment. For the evaluation of the...
-
Page 7: Fcc Statement
FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: INFORMATION FOR THE USERS (1)This device may not cause harmful interference. At the end of its life, the device has to be separated from the other waste. (2)This device must accept any interference received, including interference that may Consign the device and all its components together to a center of electronical and cause undesired operation.
