Summary of Contents for Smanos DB-20

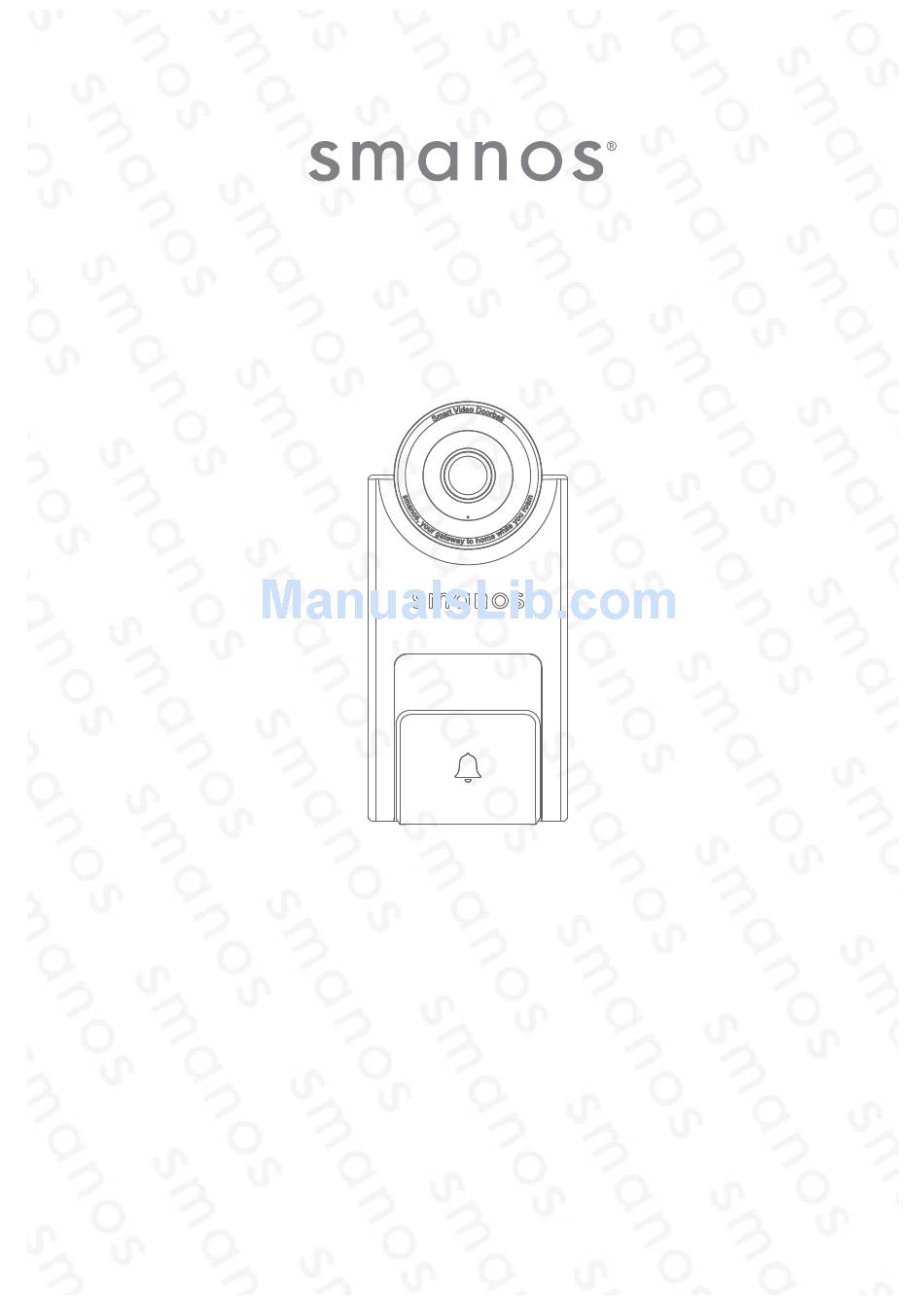

  • Page 1 Smart Video Doorbell Instruction Manual...
  • Page 2 Welcome to the Smart Home Family! Thank you for choosing “Smart Video Doorbell”. This product integrates motion detection and video recording into your doorbell system. Please take your time to unpack and familiarize yourself with the included parts and this instruction manual to learn how to to setup the “Smart Video Doorbell”.
  • Page 3: Table Of Contents

    Contents Things to Note before Getting Started ������������������������������� 1 WiFi Internet Connection ��������������������������������������������������������� 1 WiFi Network and Password ������������������������������������������������������ 1 Operating System Requirements ������������������������������������������������ 1 In the Box ������������������������������������������������������������ 2 Getting to Know Your Smart Video Doorbell ���������������������� 3~4 Overview ������������������������������������������������������������������������� 3 LED Indicators ��������������������������������������������������������������������...
  • Page 4: Things To Note Before Getting Started

    Things to Note before Getting Started WiFi Internet Connection � One critical factor affecting the performance of your doorbell is the relative positions of your home WiFi router and doorbell. Place your doorbell in an open area (DO NOT place it directly on the floor); the closer the doorbell is to the router, the stronger the WiFi signal will be, resulting in optimum performance and satisfaction.
  • Page 5: In The Box

    In the Box Smart Video Doorbell x 1 Waterproof Case x 1 Extra Terminal Screw x 2 * For securing the wires on the back of doorbell Wire Connector x 2 * To connect the wires Harness to your existing wires Mounting Bracket x 1 Mounting Screw x 4 * Used to mount doorbell with Phillips screwdriver (not...
  • Page 6: Getting To Know Your Smart Video Doorbell

    Getting to Know Your Smart Video Doorbell Overview Front View IR LEDs Camera Microphone PIR Sensor Ringer Rear View Configuration Tamper Switch Button Wiring Terminals...
  • Page 7: Led Indicators

    LED Indicators The LED indicators on the doorbell give you an idea of the device’s current status. Here is a list of light indicators and the corresponding status it refers to. Light indicator Status Solid red light lasts for 30 seconds and then off Powering on Green light flashes fast (once every 0.2s) WiFi signal searching...
  • Page 8: Getting Started

    Getting Started Operating Requirement This video doorbell is only available to connect to a low voltage 8~24VAC transformer or an existing traditional doorbell with a voltage of 8~24VAC. In general, your traditional doorbell consists a ringer to be installed outdoor, and an indoor chime with a transformer.
  • Page 9: Download The App

    Step 6: Fix the Power Regulator inside the chime with double-sided tape, if it does not fit inside, you can attach it to the wall next to your chime. Place the cover back onto the chime. Step 7: Remove the wires attached to the outdoor ringer. You can disconnect the wires by loosening the screws on top of the wires.
  • Page 10: Signing Up/In

    Signing Up/In If you have not registered an account with us, please press “Sign up” just below the “Sign in” icon on the App, and follow the instructions to create your account first. * If you do not receive an account verification code in your email inbox during the registration process, please remember to check your spam/junk folder and make sure the notice has not been blocked by your service provider.
  • Page 11: Setting Up Your Doorbell

    Setting Up Your Doorbell Powering On Putting the Doorbell into WiFi Configuration Mode Press and hold the Configuration Button on the back until the doorbell beeps once (about 3 seconds), and then the indicator would flash red and green alternately, indicating that the doorbell has been switched into the WiFi configuration mode.
  • Page 12 If you’re unable to find the setting location, we suggest searching on Google with the following syntax: Disable (Phone Model) cellular data. Go to your smartphone’s WiFi settings, and select “smanos doorbell” to connect to the doorbell. Now, your smartphone is the control center of your doorbell.
  • Page 13 Entering WiFi Details for the Doorbell Pick your home WiFi network from the drop down box listed on the app, and enter the WiFi network’s password. The doorbell will connect to the selected WiFi network. This binding process should take about three minutes. The doorbell indicator light will be off when a successful connection has been established.
  • Page 14: App Operation

    App Operation Main Page Checking device status after setting up When the status bar turns into teal, it means the device is ONLINE and available. This icon on the left of your device indicates that the If it's gray, it means the device was shared to you device is OFFLINE and by family or friends.
  • Page 15: Live Video

    Deleting Device Tap on the Edit Button ], and press the Delete Button Sorting Tap on the Edit Button ], press and hold the Sort Button ], drag it up or down to the position where you want it to be located. Live Video Please tap on the “Smart Video Doorbell”...
  • Page 16: Answering Your Door

    5. Latest Alerts The latest three alerts will appear on this area. And the corresponding 15�second videos can be played directly ONLY if you have purchased a smanos cloud plan. Answering Your Door When someone is infront your door and ring the doorbell, it will show on your App:...
  • Page 17: History

    “Accept” button to speak to the ringer directly or just tap on “decline” to finish the conversation. History If you already have had our smanos cloud service, motion�triggered alerts, accepted or missed ring logs can be reviewed from this History page directly and the corresponding 15�second videos can be played.
  • Page 18: Album

    Album You can find all your manually saved video clips and snapshots on this page. Any video or snapshot found here is stored on your phone and can be edited and shared as you wish. Deleting Video(s) or Snapshot(s) Tap on edit icon and then press the shown to delete video clip(s) or snapshot(s).
  • Page 19: Settings

    Settings General Device Name This setting enables you to rename your doorbell, and the new name will be shown on the Device List on Main Page. Tampering Alarm This setting enables you to switch on/off the tampering function on your doorbell.
  • Page 20 Notifications This setting enables you to: 1. Change the alert tone of the push notifications. Note: The notification for motion alerts will be sent to you without any ring tone. 2. If you want to receive an email notification whenever the motion is detected, you can turn on the “Email”...
  • Page 21 Motion Detection On/Off When the motion sensor is turned on, you will receive a push notification whenever motion is detected. Timing This is useful if you installed the doorbell in a busy area in your home where foot traffic is frequent. Define a time frame during which you wish to receive motion alerts.
  • Page 22 Network Configuration Change WiFi (Switching between Networks) This setting enables you to connect your doorbell with another nearby WiFi network, without repeating the configuration process. Reconfiguration This setting enables you to reconfigure your doorbell when a network issue has arisen. All settings and records will NOT be cleared.
  • Page 23 Time Setting Synchronize Time This setting enables you to choose the time zone for your doorbell, to make sure the time stamp on the recorded video is correct. When motion is detected, you will receive a push notification: (for example) Activity detected by [Smart Video Doorbell name] at 08:20:00 GMT+2 Or Activity detected by [Smart Video Doorbell name] at 07:20:00 GMT+1 DST during Daylight Saving Time.
  • Page 24 More Firmware Update This setting enables you to update your doorbell to the latest firmware if necessary. WHEN AN UPDATE IS TAKING PLACE, FORCED TERMINATION WILL CAUSE SERIOUS DAMAGE TO YOUR Smart Video Doorbell. It is highly recommended that you keep your doorbell plugged in at all times, and DO NOT SWITCH THE DEVICE OFF BEFORE AN UPDATE IS COMPLETED.
  • Page 25: Account Management

    Account Management Editting Account Tap on on the main page to enter the account management. Tap on the picture, and you can add or replace your account image by taking a picture or choosing a picture from your phone’s album. If you want to change your account name, just tap on the button and enter a new name.
  • Page 26 My Shares Sharing device(s) with family or friends By choosing “My shares” on the menu and pressing the [+] Add Button, you can share access to your device(s) with other registered accounts. Enter the email address and nickname of the account you want to share with, and then select the device(s) after setting access limit.
  • Page 27 Access Setting There are two types of sharing way with some key differences: the Administrator and the User who has been invited to the devices. Admin (Full Access) With Admin (Full Access), the shared user in this group will be able to do almost everything as the Owner can to the devices you’re shared, with few exceptions, like re�sharing to others.
  • Page 28: Specifications

    Specifications Model No DB�20 Camera Full HD 1080p Angle of view horizontal 170°, vertical 90° Video compression H.264 Night vision Automatic IR-cut filter WiFi 802.11b/g/n/ac with WEP/WPA/WPA2 encryption 2.4GHz + 5GHz Power supply AC 8�24V Operating conditions temperature �20~+50°C ( 4~122°F, humidity < 95% RH (non-condensing) Dimensions (LxWxH) 131.7 x 62.2 x 36.2mm...
  • Page 29: Faqs

    FAQs * WiFi and Network: 1. I have a poor WiFi signal, what can I do? Please check the WIFI connection strength from live video page or test your network’s speed from www.speedtest.net or from the speedtest app. If it shows the connection is weak, you should re�attempt the setup procedure, and try moving your router closer to your doorbell, or exploring possible sources of WIFI interference such as large appliances, or other wireless products that may affect the signal.
  • Page 30 automatically reconnects. > Press the configuration button on the back of your device to put the device in Setup mode. Wait 10 seconds, then press it again and see if the device automatically reconnects. > Check to make sure your device’s battery to make sure it’s properly charged. * Motion alerts: 4.
  • Page 31 (if this function is enabled). Be sure your device is online and your phone is allowed to receive notifications from smanos home(for iPhone only). You may check from the front page to see the status of the device. When the status bar turns into teal, it means the device is ONLINE and available.
  • Page 32 10. How can I access my doorbell’s live view? The “live view” feature lets you access a live video feed from your smart doorbell at any time. Tap the “live view” button to watch a live video from your app. The green light will be on when you watch the live video.
  • Page 33 16. If I don’t have a smanos cloud service, will I still receive alerts? Yes. You will still get alerts when visitors press your Doorbell or trigger the motion sensors.
  • Page 34 Printed in China © 2018 smanos. All Rights Reserved. PA : DB-20-UM-EN-V1.0...
