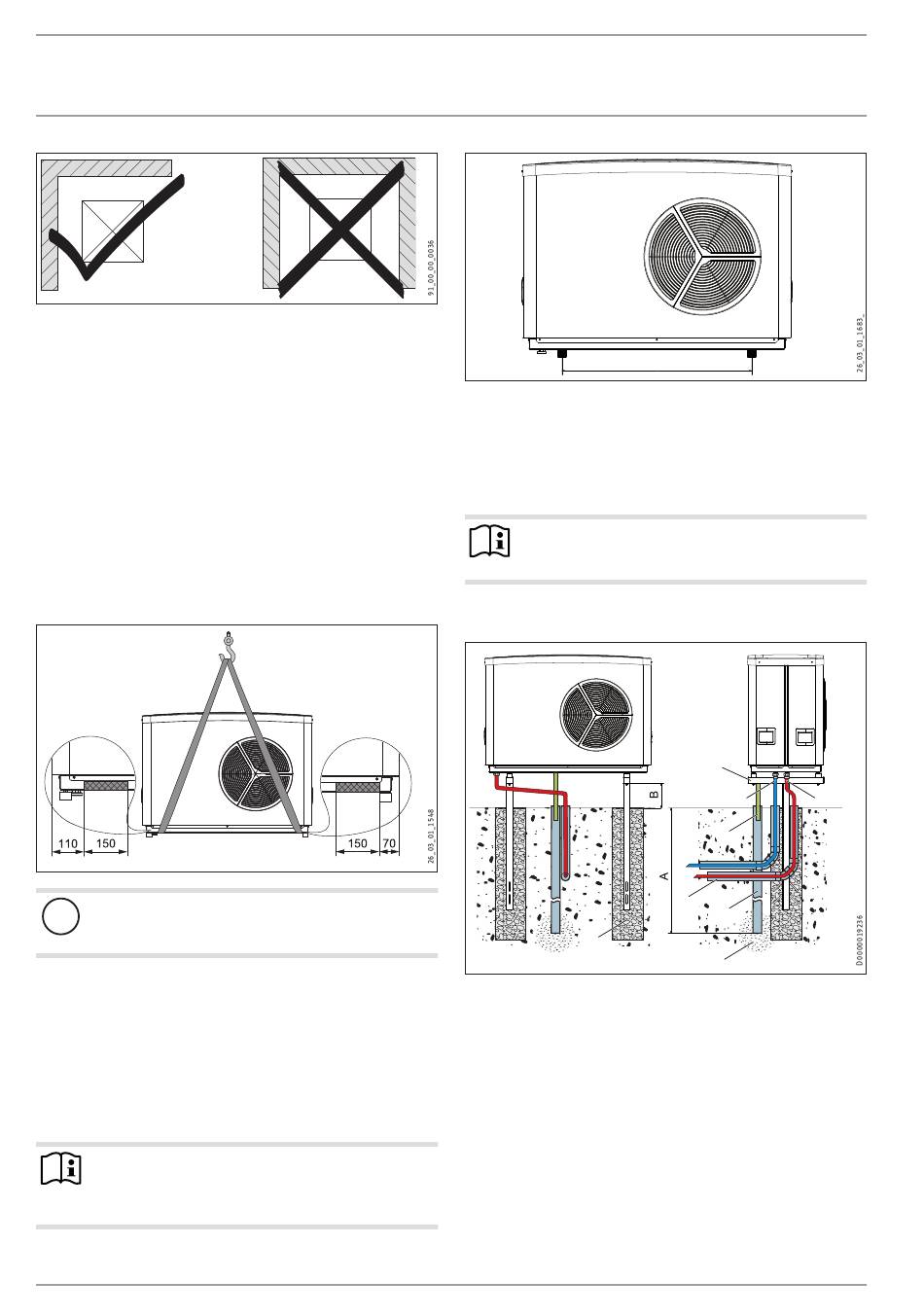

INSTALLATION
Preparations
f Never install the appliance in a recess. Two sides of the ap- f
pliance must remain exposed.
f Avoid installation on large, echoing floor areas (e.g. tiled f
floors).
f Avoid installation between reflective building walls. Reflect- f
ing building walls can increase the noise level.
9.3

Preparation of the installation location

The substrate must be horizontal, level, solid and permanent.
f Ensure that the appliance is accessible from all sides. f
9.4

Transport

- Lifting straps to transport the appliance can be hooked into
the area highlighted in grey at the bottom of the support
frame.
Material losses
!
Protect the appliance against heavy impact during trans-
port.
If the appliance needs to be tilted during transport only do so
for a short time on one of its longitudinal sides. The longer the
appliance is tilted, the greater the distribution of refrigerant in
the system. Wait approx. 30 minutes before starting the appliance
after it has been tilted.
9.5

Siting

f Observe chapter "Sound emissions". f
Note
f Observe the clearance dimension in the following f
diagram when using a T-support or wall mounting
bracket.
8 | WPL 10 AC | WPL 10 ACS
f Only use weather-resistant cables. f
f Protect the flow and return lines against frost with sufficient f
thermal insulation. Provide thermal insulation in accordance
with applicable regulations.
f Also protect all supply lines/cables against humidity, damage f
and UV radiation by means of a conduit.
Note
When routing the condensate hose, observe chapter "In-
stallation / Condensate drain".
Example: T-support SK-WPL
4
A Depth of frost line
B 300
1 Heating flow
2 Heating return
3 Conduit for supply lines
4 Foundation
5 T-support
6 Gravel bed
7 Drainage pipe
8 Condensate drain
f Observe the static limits of the T-support used. f
890
5
2 1
8
3
7
6
