RX-DP10VBK/RX-DP10VSL
RX-DP10RSL

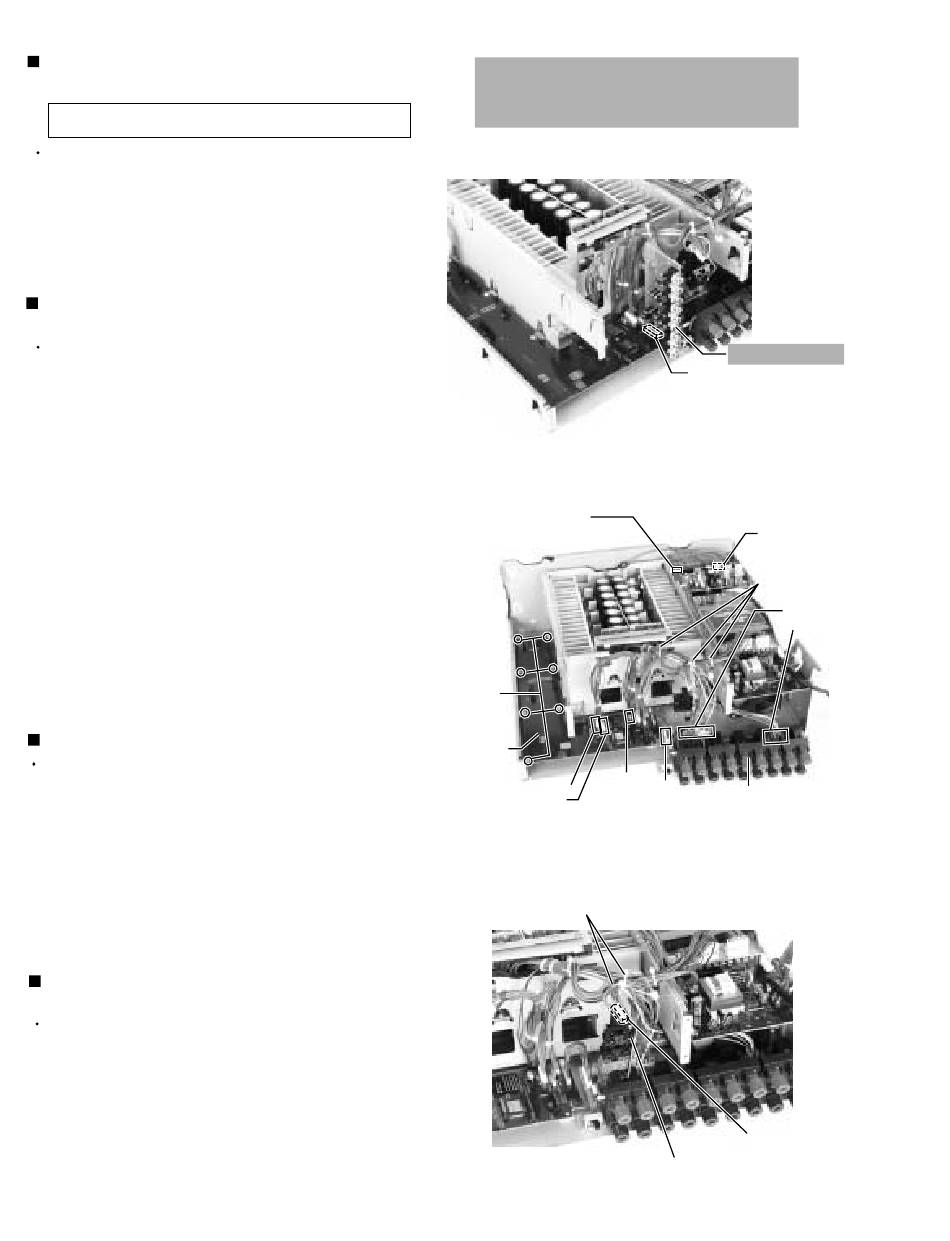

Removing the video SEP board
Note : Video SEP board is not in B/E/EN version.
Prior to performing the following procedures, remove
the top cover and the rear panel.
Disconnect the connector CN501 on the video SEP
1.
board. While removing the claw of the connector
CN9, pull out the video SEP board.
Removing the input base board
Prior to performing the following procedure, remove
the top cover, rear panel, DSP board, audio signal 1
board, audio signal 2 board, video board, s video
board and video SEP board.
1. Cut off the tie bands fixing the harnesses.
2. Disconnect the harnesses from the connector CN11,
CN16 and CN17 on the input base board.
3. Disconnect the harnesses from the connector CN63
on the power supply 1 board and CN42 on the power
supply 2 board.
4. Disconnect the harnesses from the connector CN
743 on the speaker board.
5. Remove the seven screws H attaching the input
base board.
Removing the speaker board (See Fig.14)
Prior to performing the following procedure, remove
the top cover and rear panel.
Attention :
Speaker board is attached the rear
panel by screws.
1.
Cut off the tie band fixing the harnesses.
2.
Disconnect the harnesses from the connector
CN741, CN742 and CN743 on the speaker board.
Removing the compu link board
Prior to performing the following procedure, remove
the top cover and rear panel.
Attention : Compu link board is attached the
rear panel by screws.
1. Cut off the tie band fixing the harnesses.
2. Disconnect the harness from the connector CN301
on the compu link board.
1-8
THE INTRODUCTORY NOTES in Figs :
(See Fig.13)
Gray parts do not correspond to B/E/EN
version.
(See Fig.14)
H
Input base
board
(See Fig.15)
CN501
(connection to CN9)
Fig.13
CN42
(on Power
supply 2 board)
CN11
CN17
CN743
CN16
Fig.14
Tie band
Compu link
Fig.15
Video SEP board
CN63
(on Power
supply 1 board)
Tie band
CN741
CN742
Speaker board
CN301
board
