INSTALLATION, OPERATION
AND MAINTENANCE DATA SHEET

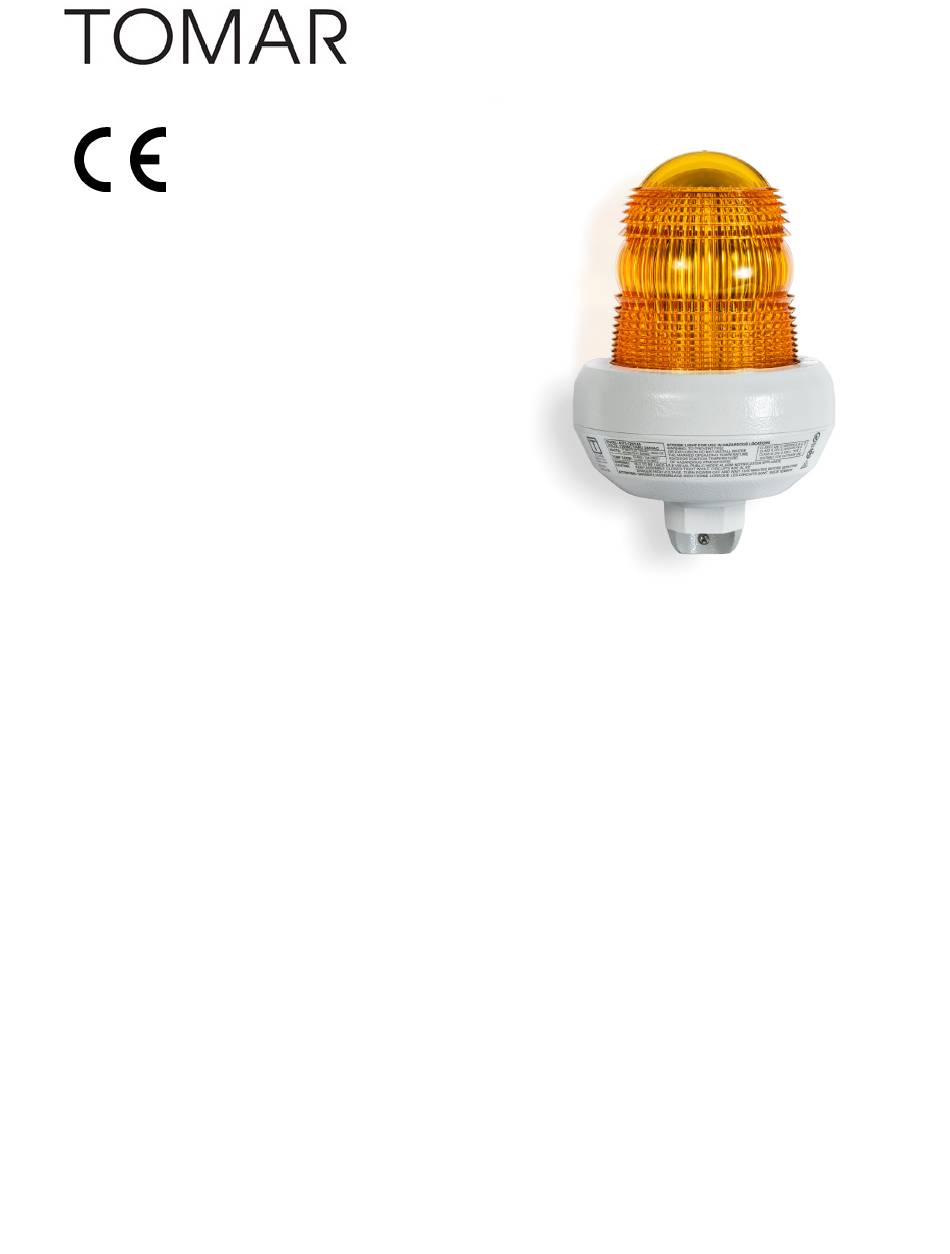

FOR - MODEL 4375 LED BEACONS
FOR CLASS I, DIV. 2, GROUPS ABCD
CLASS II, DIV 2 GROUPS F & G
HAZARDOUS LOCATIONS

SAFETY MESSAGE TO INSTALLERS, USERS, AND MAINTENANCE PERSONNEL

It is important to follow all instructions shipped with this product. This device is to be installed by a trained
installer who is thoroughly familiar with the national electrical code and local codes as well.
The selection of the mounting location for the device, its controls and the routing of the wiring is to be
accomplished under the direction of the facilities engineer. In addition, listed below are some other
important safety instructions and precaution you should follow:
• Read and understand all instructions before installing or operating this equipment.
• Do not connect this device to the system when the power is turned on.
• After installation, ensure that all screws and thread joints are properly tightened.
• After installation, test the system regularly to ensure that it is operating properly.
• After installation and testing is complete, provide a copy of this instruction sheet to all operating

Wiring the Beacon

The Model 4375 Series strobe Beacon should be installed per the NEC or CEC, STATE and LOCAL CODES, using
a suitable wiring system for the specific hazardous location. Alternate installation locations and/or
orientations should only be performed with the approval of the authority having jurisdiction.
IS0802-00
11-08-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4375 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tomar 4375

  • Page 1 • After installation and testing is complete, provide a copy of this instruction sheet to all operating Wiring the Beacon The Model 4375 Series strobe Beacon should be installed per the NEC or CEC, STATE and LOCAL CODES, using a suitable wiring system for the specific hazardous location. Alternate installation locations and/or...
  • Page 2 IS0802-00 11-08-18 Wiring the AC Models 1. Ensure that power is off. 2. Install conduit to conduit opening and tighten set screw. 3. Pull field wiring through conduit into enclosure/base. 4. Remove the threaded dome assembly by twisting it counterclockwise. 5.
  • Page 3 IS0802-00 11-08-18 Note: 1. Dip switches will override any external wire connections made. Note: 2. If the blue and yellow wires are not used cut off or cap with a wire nut. TABLE 2 Internal Dip Switch Settings for setting modes of operation Switch 1 Switch 2 Mode...
  • Page 4 WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON - HAZARDOUS. TOMAR Electronics, Inc. 2100 West Obispo • Gilbert, Arizona 85233 USA 800-338-3133 • (480) 497-4400 • FAX (480) 497-4416 www.tomar.com...
