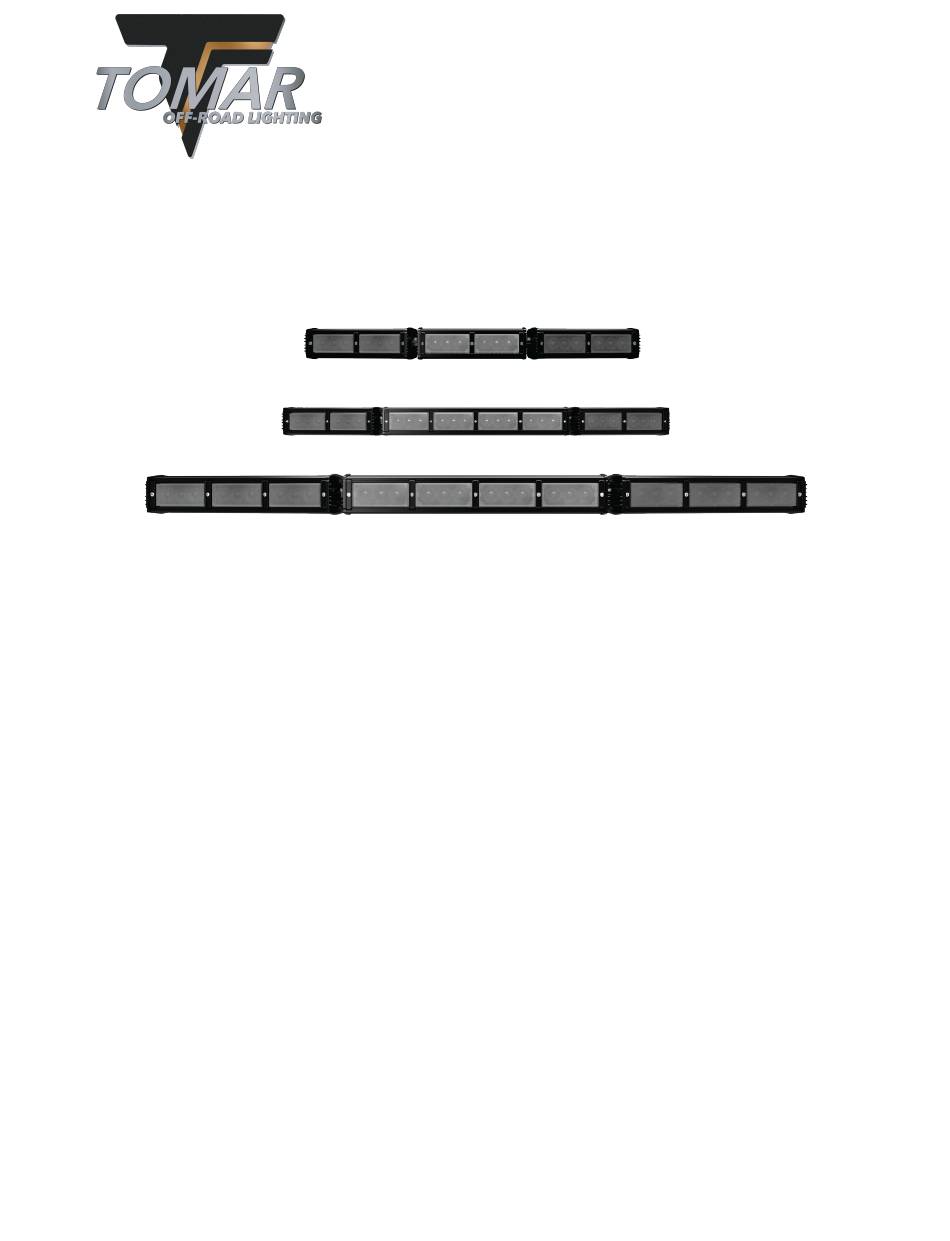

- Page 1 IS1083 TRX-EL TORO TRX-30CA-AC-FS TRX-40CA-AC-FS TRX-50CA-AC-FS TRX-30CA-FS TRX-40CA-FS TRX-50CA-FS Product Manual TOMAR OFF-ROAD, 2100 W OBISPO AVE, GILBERT, AZ 85233 800-338-2133 www.tomaroff-road.com...
- Page 2 CONGRATULATIONS! Your new TRX Off-Road lightbar has been engineered to provide you powerful, reliable service for many years to come. In this instruction sheet, you will not only find technical information, but care instructions as well, for maintaining the original performance of your new TOMAR Rugged Extreme (TRX) Off-Road Lightbar. Thank you for your purchase! Wiring Main Power Wires Wiring the TRX lightbar into the vehicles electrical system does not require the use of relays.
- Page 3 IS1083 Brown/White Wire –Activates the S.O.S. or warning patterns. See below for available flash patterns. Green Wire – In all lightbars the green wire activates a low intensity or dim setting. Red/White Wire – In all lightbars the red/white wire is a +Vdc feed that can be used to power one or more switches.
- Page 4 IS1083 4) Touch and Hold the Brown wire to +Vdc for 3 seconds to reset the pattern to the default flash rate. Wire Runs The table below lists the maximum recommended wire run for the power and ground cables in feet. The control cable can be the same length as the power cables but 20-gauge wire is sufficient for all distances.
- Page 5 IS1083 Mounting The TRX-El Toro will come with the mounting bolts already installed on the bottom of the lightbars. 1) Remove the bumper 2) Measure and space the bolts along bumper, then add washer and nut and tighten 3) Add jam nut and washer for height adjustment...
- Page 6 IS1083 5) Mount on bumper, aligning mounting bolts to bumper slots 6) Turn jam nut to adjust height 7) Add washer and lock nut to bolt and tighten to fasten lightbar into place 8) Tighten hex screws on hinges to set the angle Page 6 of 8...
- Page 7 IS1083 9) Verify lightbar height, if adjustments are needed repeat step 5 Recommended Fuse/Breaker Sizing Replacing a lamp module All TRX lamp modules are interchangeable and can be used in any position on the lightbar. This offers the flexibility to configure a lightbar for any mission with perfect balance of flood, spot or dual color modules. Page 7 of 8...
- Page 8 IS1083 With this modular design the replacement of a TRX Lamp couldn’t be easier. Each module is hermetically sealed so replacement will not compromise the watertight integrity of the lightbar or void the warranty. To replace a lamp module simply remove the two lamp clips using a 9/64” hex tool. Unplug the lamp from the waterproof connector, plug the new lamp in and reattach the lamp clips.
