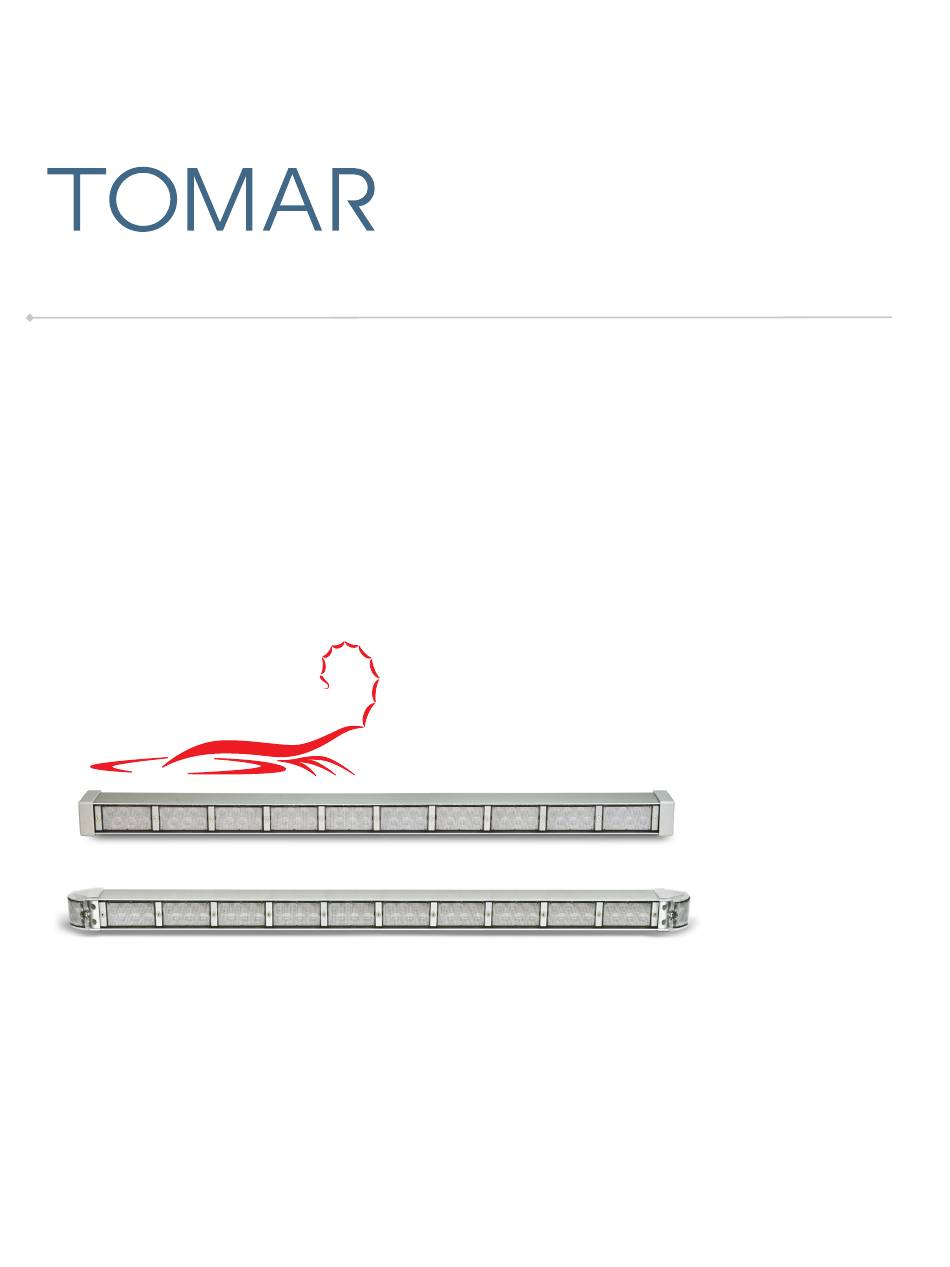

- Page 1 Instruction Manual 975L-5310 Scorpion Half-Bar IS0623A-03 09.04.2018 TOMAR Electronics, Inc. 2100 W. Obispo Ave. Gilbert, AZ 85233 USA 800.338.3133 ph 800.688.6627 fax www.tomar.com...
- Page 2 975L-5310 Wiring +12Vdc BLACK Ground ORANGE Warning Mode 1, with optional CA Steady behavior BLUE Warning Mode 2, with optional CA Steady behavior ORANGE & BLUE Warning Mode 3, with optional CA Steady behavior RED/WHITE Right Arrow Mode BROWN/WHITE Left Arrow Mode RED/WHITE &...
- Page 3 Entering Traffic Direction Programming Mode: To activate the Traffic Direction programming mode connect the BLACK wire to Ground then simultaneously attach the GREEN wire, RED/WHITE wire and the RED wire to +12Vdc. Changing Traffic Direction Patterns and Flash Rates: To change the Traffic Direction pattern, enter the Traffic Direction programming mode as described above. Tap the BROWN wire to +12Vdc to advance the flash pattern.
- Page 4 Flash Patterns, Warning Modes - Models 5310-02, 5310-02P, 5310-C02, 5310-C02P 1) OFF 2) COMBINATION A (Patterns 8,7,9,7 repeat) WITH SL’s ORANGE Wire (Warning Mode 1) DEFAULT, SCROLL FLASH A 3) COMBINATION B (Patterns 18,17,19,17 repeat) WITHOUT SL’s BLUE Wire (Warning Mode 2) DEFAULT, SCROLL FLASH A 4) COMBINATION C (Patterns 8,7,6,7 repeat) WITH SL’s...
- Page 5 Flash Rates, Traffic Direction Modes: 1) SINGLE FLASH 96 FPM ** 2) DOUBLE FLASH 125 FPM 3) NEOBE FLASH 96 FPM ** 4) SINGLE 75 FLASH 75 FPM ** 5) SCROLL FLASH A switches between the Single, Double and Neobe flash rates, every two cycles of a pattern. 6) SCROLL FLASH B switches between the Single 75, Double and Neobe flash rates, every two cycles of a pattern.
