INSTALLATION, OPERATION
AND MAINTENANCE DATA SHEET
FOR ‐ MODEL 4375 BEACON

FOR CLASS I, DIV. 2, GROUPS ABCD
HAZARDOUS LOCATIONS
OUTDOORS (NEMA 4X)
SAFETY MESSAGE TO INSTALLERS, USERS, AND MAINTENANCE PERSONNEL
It is important to follow all instructions shipped with this product. This device is to be installed by a trained
installer who is thoroughly familiar with the national electrical code and local codes as well.
The selection of the mounting location for the device, its controls and the routing of the wiring is to be
accomplished under the direction of the facilities engineer. In addition, listed below are some other
important safety instructions and precaution you should follow:

• Read and understand all instructions before installing or operating this equipment.
• Do not connect this device to the system when the power is turned on.
• After installation, ensure that all screws and thread joints are properly tightened.
• After installation, test the system regularly to ensure that it is operating properly.
• After installation and testing is complete, provide a copy of this instruction sheet to all operating

Wiring the Beacon
The Model 4375 Series strobe Beacon should be installed per the NEC or CEC, STATE and LOCAL CODES.
Alternate installation locations and/or orientations should only be performed with the approval of the
authority having jurisdiction.

NOTE: The 120 VAC strobe unit is designed to operate on both 50 Hz and 60 Hz electrical power. Special
modifications are NOT required for the two different AC line frequencies.

Wiring the AC Models
1. Ensure that power is off.
2. Remove the threaded dome assembly by twisting it counterclockwise.
3. Connect the black lead to the phase (hot) side of the power source and the white lead to the
   common (neutral) side of the AC power source.

4. Secure the dome to the base of the beacon.

5. Connect power to the beacon and test it for proper operation










IS0589‐01
08‐05‐13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4375 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tomar 4375

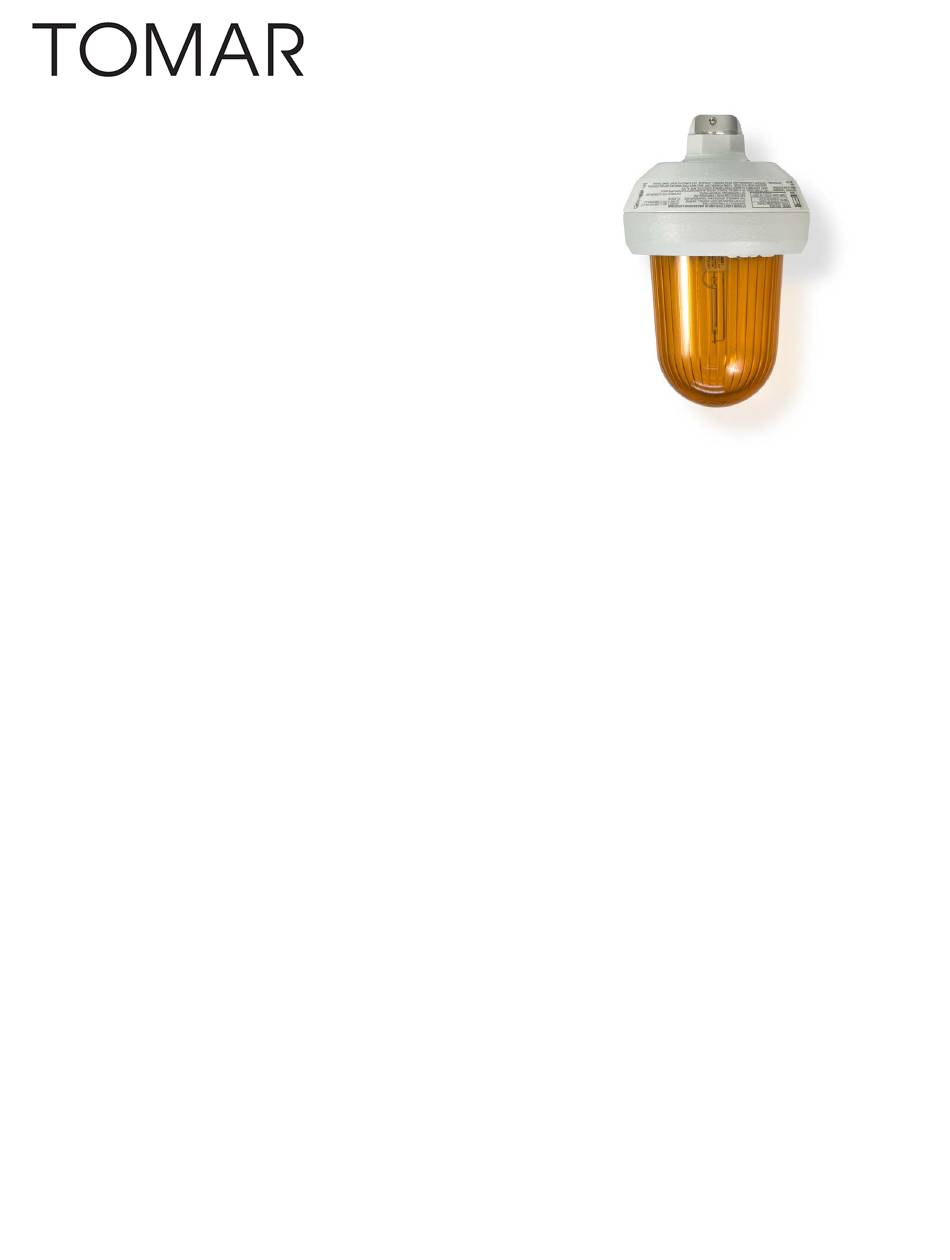

  • Page 1 IS0589‐01    08‐05‐13      INSTALLATION, OPERATION   AND MAINTENANCE DATA SHEET  FOR ‐ MODEL 4375 BEACON    FOR CLASS I, DIV. 2, GROUPS ABCD  HAZARDOUS LOCATIONS  OUTDOORS (NEMA 4X)      SAFETY MESSAGE TO INSTALLERS, USERS, AND MAINTENANCE PERSONNEL    It is important to follow all instructions shipped with this product. This device is to be installed by a trained  installer who is thoroughly familiar with the national electrical code and local codes as well.  The selection of the mounting location for the device, its controls and the routing of the wiring is to be  accomplished under the direction of the facilities engineer. In addition, listed below are some other  important safety instructions and precaution you should follow:    • Read and understand all instructions before installing or operating this equipment.  • Do not connect this device to the system when the power is turned on.  • After installation, ensure that all screws and thread joints are properly tightened.  • After installation, test the system regularly to ensure that it is operating properly.  • After installation and testing is complete, provide a copy of this instruction sheet to all operating     Wiring the Beacon   The Model 4375 Series strobe Beacon should be installed per the NEC or CEC, STATE and LOCAL CODES.  Alternate installation locations and/or orientations should only be performed with the approval of the  authority having jurisdiction.     NOTE: The 120 VAC strobe unit is designed to operate on both 50 Hz and 60 Hz electrical power. Special  modifications are NOT required for the two different AC line frequencies.    Wiring the AC Models   1. Ensure that power is off.   2. Remove the threaded dome assembly by twisting it counterclockwise.   3. Connect the black lead to the phase (hot) side of the power source and the white lead to the ...
  • Page 2 NOTE: To comply with NEC Section 300-14, which requires a minimum of 6 inches (15.25 cm) of free conductor at a junction, when mounting the Model 4375, the mounting pipe used to join the unit to a splice box should be no longer than 10 in (25.4 cm).
