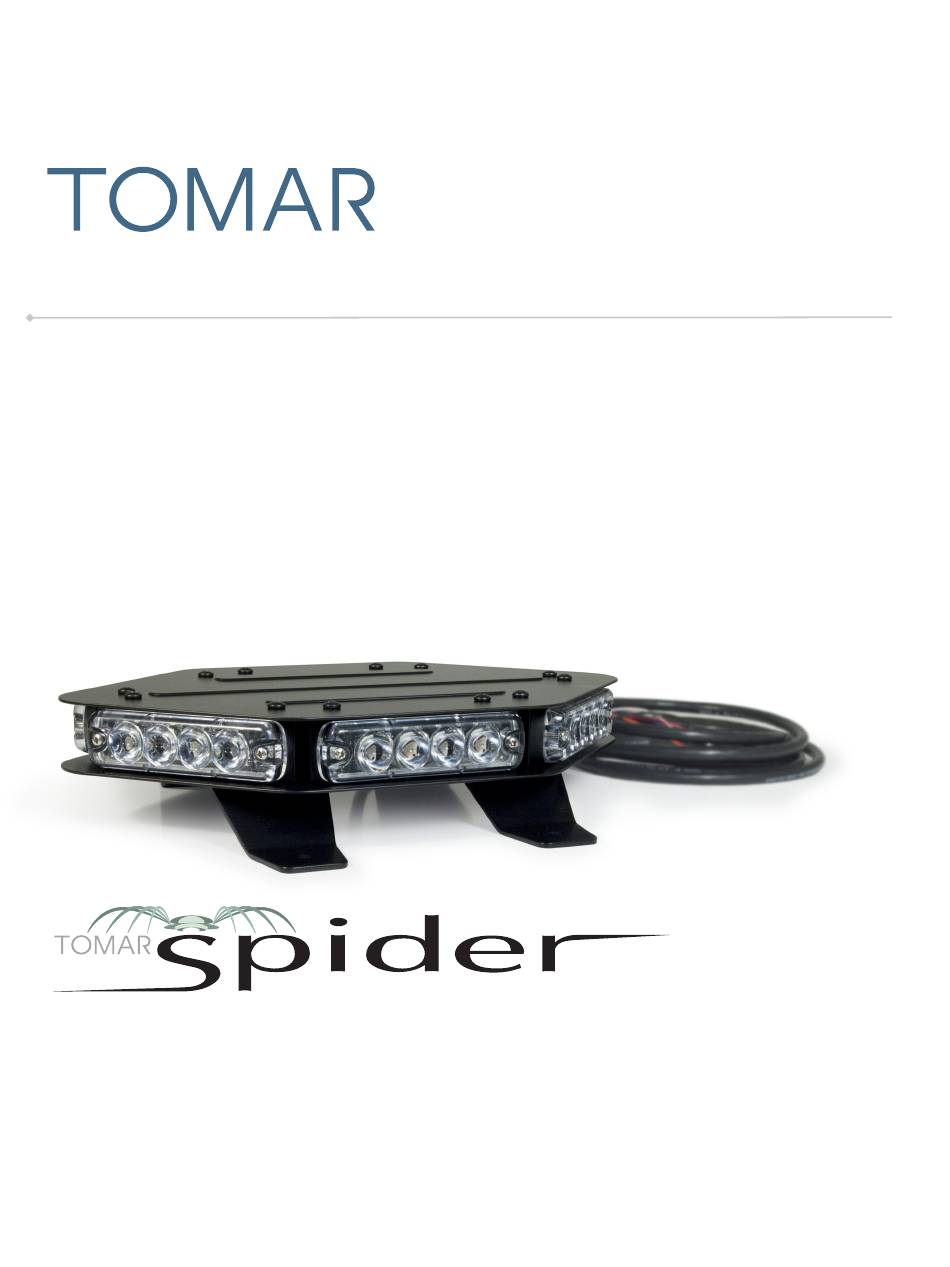

- Page 1 Instruction Manual M I C R O B A R IS0576-01 02.08.2012 TOMAR Electronics, Inc. 2100 W. Obispo Ave. Gilbert, AZ 85233 USA 800.338.3133 ph 800.688.6627 fax www.tomar.com...
- Page 2 M I C R O B A R Spider Microbar Wiring +12Vdc Black Ground Orange Warning Mode 1 Blue Warning Mode 2 Orange & Blue Warning Mode 3 Red/White Alt Mode Circle Fill Brown/White Alt Mode Circle Trail Red/White & Brown/White...
- Page 3 Changing Alt Mode Flash Rates: The Alt mode flash patterns are not selectable. To change the flash rates enter the programming mode as described above. Move the green wire from +12Vdc to Ground. Tap the BROWN wire to +12Vdc to advance the flash rate.
