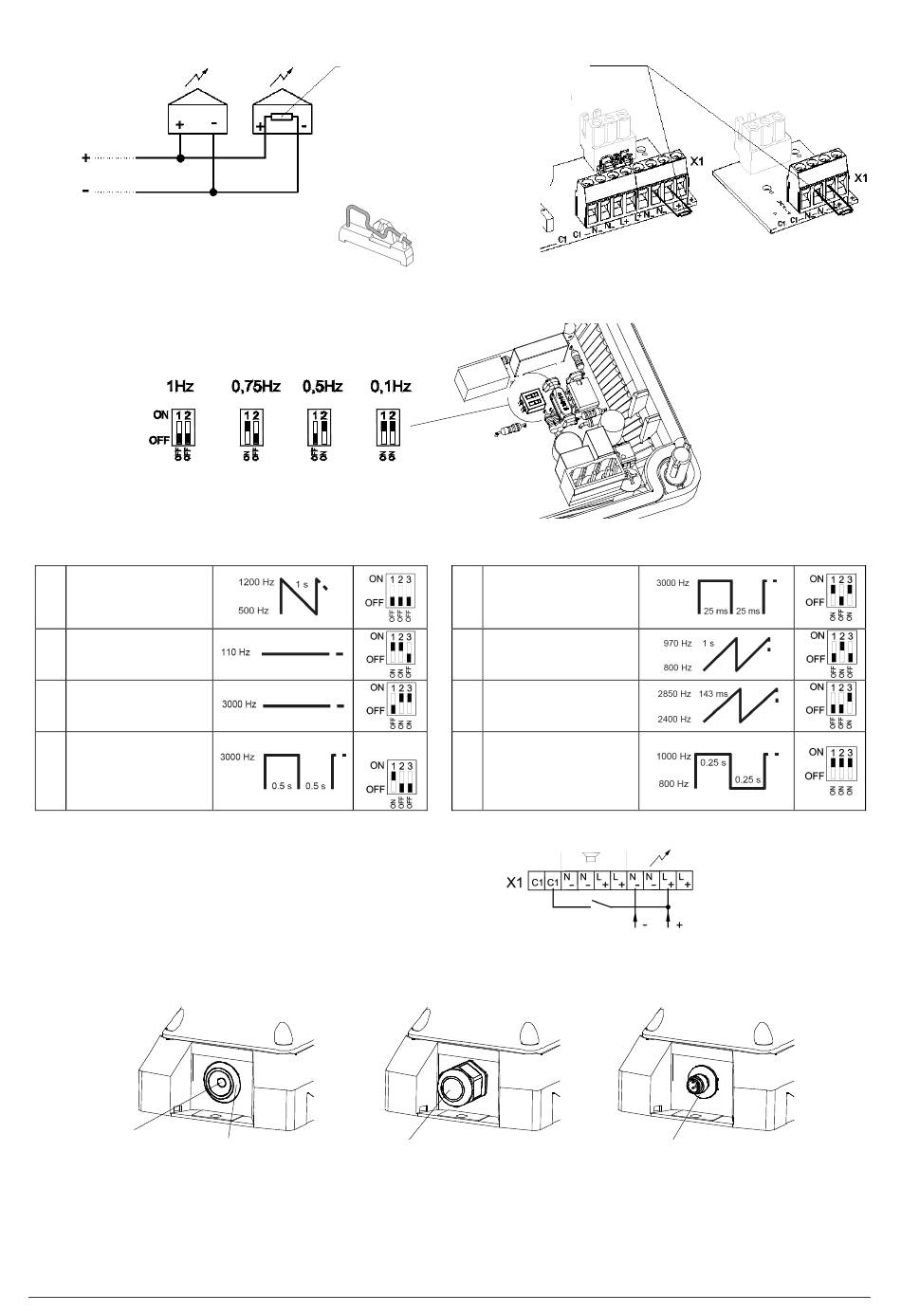

Line monitoring:
When the line monitoring is used with reverse
voltage the blocking diode must be activated by
opening the Switch S4 (on pcb inside lens).
Flash Frequency adjustment:
*
*
Factory setting
Tone table (for PY X-MA-xx):
Sawtooth
DIN 33404-3
1
(Emergency signal)
PFEER PTAP
Continuous tone
2
(Horn)
3
Continuous tone
4
Interrupted tone
*
Factory setting, Tone selector switch S1 on pcb inside base part, see chapter „electrical connection".
Devices with control input (for PY X-M-xx)
This option allows the beacon to be activated via control voltage.
The maximum current consumption of the control input is max. 1W.
Cable gland entries
To guarantee the specified protection type, cable grommets with a protection type of IP 66 are to be installed at the openings
provided for this purpose. The supplied diaphragm nipple can be replaced with a cable gland or with an M12 plug connection
with a flange measurement of M20.
After installation of the cable
remove the remains of the
diaphragm.
Maintenance, Service and Ordering Spare Parts
The device does not require any special maintenance. External cleaning should be done with a mild soap solution without the
use of solvents. The device may only be operated in the undamaged state within the specified rating.
Conversions, alterations, improper and inadmissible use as well as the non-observance of the notes in these operating
instructions shall render the warranty null and void. Components may be replaced only by original spare parts. As a matter of
principle, repairs are to be carried out in the manufacturing works.
085 501 972
Resistor for Line Monitoring (1K Ohm)
at the terminal for operating voltage.
Position of the resistor with parallel
connection of multiple beacons in the
last unit
Remove unneeded resistors.
S4
Diaphragm nipple IP 66 Cable gland IP 66
(provided)
*
Factory
setting
PCB
in lens
5
Interrupted tone
Slow whoop
6
Fire alarm
UK BS5839-1
7
Slow whoop
*
Alternating tone,
UK BS5839-1,
8
Fire alarm, railway
crossing
30360-004
PY X-MA-xx
M12 plug connector IP 66
(for low voltage versions)
PY X-M-xx
