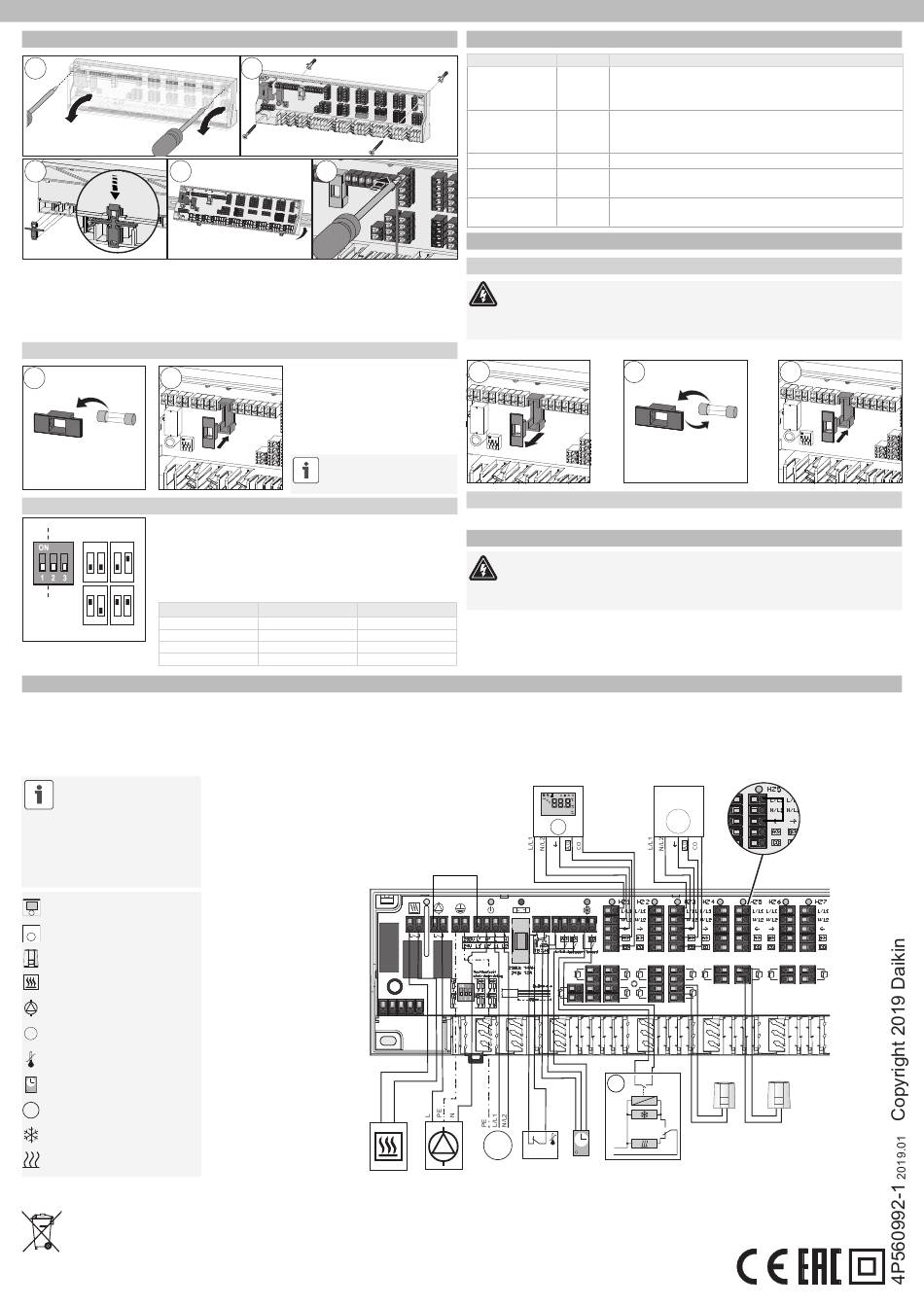

5 Installation
1
2b 2b
1. Take off the cover.
2. Install the base. In case of wall mounting, fix the base to the wall with 2
Ø 4 mm screws and corresponding dowels based on the quality of the wall.
In case of installation on a mounting bracket, use a TS 35/7.5 bracket.
3. Make the electric connection.
4. Install the cover.
5.1 Select and insert the fuse
1 2
230 V
T4AH
5.2 Parametrization
The control direction is set with jumper 1:
Nachlaufzeit
NO operation: Jumper 1 = ON
NO Shut-down delay
NC operation: Jumper 1 = OFF
0min 5min
The fixed follow-up time of 2 minutes of the pump or
the boiler can be increased by an additional 5, 10 or
2 3 2 3
15 minutes using jumper 2 and 3:
NC
10min 15min
2 3 2 3
10 minutes
15 minutes
6 Electric connection
For the connection of the voltage supply, the cable sections must be 1.5 mm² for 230 V. Depending on the voltage version of the base, it is possible to take L1 or
L and L2 or N, as well as the protective conductor, from the base. A temperature limiter/dew point sensor can be connected to the contact TB/%H in NC operation;
this contact cannot be used in NO operation. If no temperature limiter is connected, the connection TB/%H must be bridged (provided for at the factory). The bridge
must be removed as soon as a temperature limiter is connected. The temperature limiter must be a normally closed contact.
The wiring of the thermostats
depends on the present ba-
sis. For wiring purposes,
please observe the instruc-
tions of the thermostat or of
the respective component.
Digital controller
Analogue thermostat
Actuator
Boiler
Pump
~
Voltage source
Temperature limiter
System clock
Heating/cooling change-over
CO
Cooling
Heating
This symbol means that electrical and electronic products may NOT be mixed with unsorted household
waste. Units must be treated at a specialized treatment facility for reuse, recycling and recovery.
These instructions are protected by copyright. All rights reserved. They may not be copied, reproduced, abbreviated or transmitted,
neither in whole nor in parts, in any form, neither mechanically nor electronically, without the previous consent of the manufacturer.
2
2a
3
The voltage used must
be marked on the
identification plate.
Time Jumper 2
0 min OFF
5 min OFF
ON
ON
7 LED signalling
Function
Pump/boiler
Mains voltage
Fuse
Change over
Heating zones
1 to 10
8 Maintenance
8.1 Fuse change
WARNING! Electrical voltage! Danger to life!
• Always disconnect the base from the mains network and secure
against unintended activation before opening.
• Disconnect external voltages and secure against unintended activation.
1
8.2 Cleaning
Only use a dry and solvent-free, soft cloth for cleaning.
9 Dismantling
WARNING! Electrical voltage! Danger to life!
• Always disconnect the base from the mains network and secure
against unintended activation before opening.
• Disconnect external voltages and secure against unintended activation.
Jumper 3
• De-energise the complete installation.
OFF
ON
• Remove the wiring to all externally connected components.
OFF
• Remove the base and dispose of it properly, if necessary.
ON
~
%H
Colour Explanation
Green On: Pump/boiler active
Off: Pump/boiler inactive
Flashing: Temperature limiter/dew point sensor active
Green On: Device in operation
Off: Device not in operation
Flashing: Valve protection function active (Option)
Red On: Fuse defective
Blue On: Cooling mode active
Off: Heating mode active
Green On: Heating zone active
Off: Heating zone off
2
230 V
T4AH
CO
N
L
3
Cable bridge in the
parametrization
NO operation
for all unused
thermostat
connections.
