TECHNICAL DOCUMENTATION 14/03/2005
Notes: MyChron Light TGLog technical documentation, dimensions and
Introduction
MyChron Light TGLog represents the evolution of MyChron light TG.
This new instrument, designed and developed for bike applications,
provides the racer with a new, handy instrument. The new MyChron Light
TGLog has a beautiful 128 x 64 pixels graphic display. This new gauge
has also an auto power off feature after 20 minutes of inactivity.
The instrument kit composed of:
Your MyChron Light TGLog has:
Your MyChron Light TGLog samples:
The gauge is powered with a 9 V internal battery.
pinout – Version 1.01

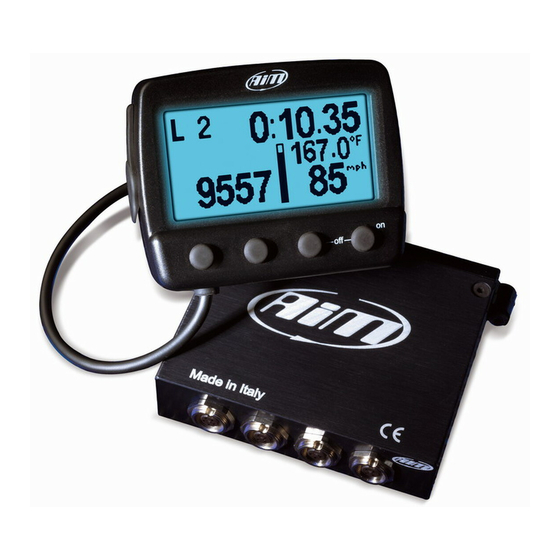

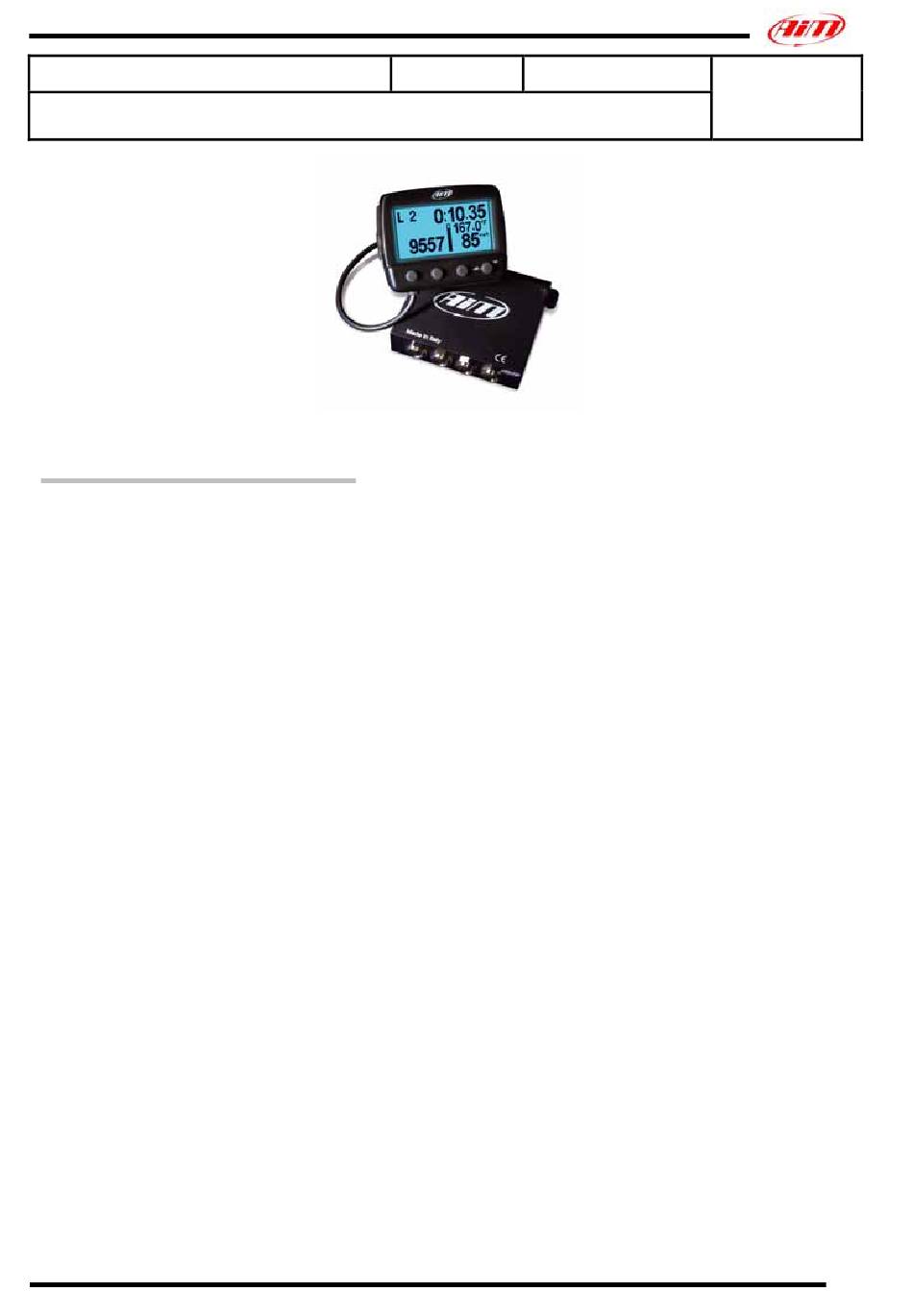

Figure 1: MyChron Light TGLog and its junction box
• MyChron Light TGLog display unit
• Junction Box
• RPM Sensor
• Speed sensor
• 1 Temperature Sensor (Thermoresistor)
• IR Transmitter and receiver
• USB Data download kit and Race Studio 2 software
• built in clock and calendar
• built in database for laps management
• capability of up to 10.000 laps storage
• 24 hours of sampling at 10 Hz
•
Lap Time
•
RPM
•
Speed
•
1 Temperature
•
Throttle position
Mini Logger
Datasheet MyChron Light TGLog Version 1.01
MyChron
Log
Light TG
1
Advertisement
Table of Contents
Related Manuals for Aim MyChron Light TGLog
Summary of Contents for Aim MyChron Light TGLog
- Page 1 Figure 1: MyChron Light TGLog and its junction box Introduction MyChron Light TGLog represents the evolution of MyChron light TG. This new instrument, designed and developed for bike applications, provides the racer with a new, handy instrument. The new MyChron Light TGLog has a beautiful 128 x 64 pixels graphic display.
-
Page 2: Installation Notes
Make sure that the gauge is not installed too close to heat sources. • MyChron Light TGLog Display unit can be installed using four M3 anti-vibration mountings, fixed in the threads on the back of the system or a strip of Velcro. -
Page 3: How To Connect Mychron Light Tglog To The Pc
How to connect MyChron Light TGLog to the PC To connect your MyChron Light TGLog to the PC, please use the USB data download cable and plug it both in the display unit USB port and in the PC USB port, as shown in Figure 2. -
Page 4: How To Download And Analyze Stored Data
How to download and Analyze stored data MyChron Light TGLog can download stored data in a Pc through USB cable using Race Studio 2, the software properly designed and developed by AIM to configure its instruments and analyze stored data. -
Page 5: Specifications
75.4 x 89.1 x 24 mm Dimensions Connector Details (Speed) Environmental IP 65 Function Pin Function Speed n.c. Female Binder connectors pinout (external view): 5 pins (left), 4 pins (centre) and 3 pins (right) Datasheet MyChron Light TGLog Version 1.01...
