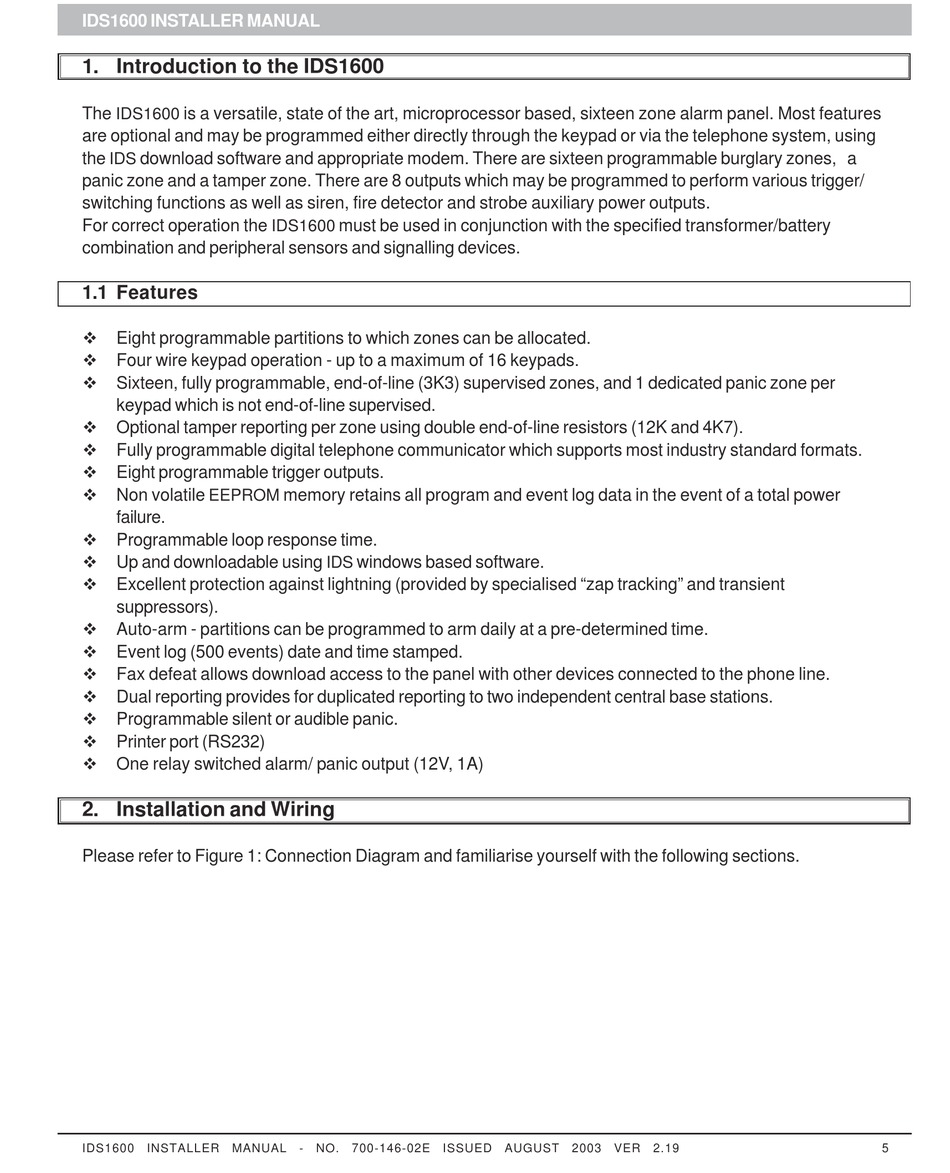

IDS1600 INSTALLER MANUAL

1. Introduction to the IDS1600

The is a versatile, state of the art, microprocessor based, sixteen zone alarm panel. Most features
IDS1600
are optional and may be programmed either directly through the keypad or via the telephone system, using
the IDS download software and appropriate modem. There are sixteen programmable burglary zones, a
panic zone and a tamper zone. There are 8 outputs which may be programmed to perform various trigger/
switching functions as well as siren, fire detector and strobe auxiliary power outputs.
For correct operation the
combination and peripheral sensors and signalling devices.

1.1 Features

!
Eight programmable partitions to which zones can be allocated.
!
Four wire keypad operation - up to a maximum of 16 keypads.
!
Sixteen, fully programmable, end-of-line (3K3) supervised zones, and 1 dedicated panic zone per
keypad which is not end-of-line supervised.
!
Optional tamper reporting per zone using double end-of-line resistors (12K and 4K7).
!
Fully programmable digital telephone communicator which supports most industry standard formats.
!
Eight programmable trigger outputs.
!
Non volatile
EEPROM
failure.
!
Programmable loop response time.
!
Up and downloadable using
!
Excellent protection against lightning (provided by specialised "zap tracking" and transient
suppressors).
!
Auto-arm - partitions can be programmed to arm daily at a pre-determined time.
!
Event log (500 events) date and time stamped.
!
Fax defeat allows download access to the panel with other devices connected to the phone line.
!
Dual reporting provides for duplicated reporting to two independent central base stations.
!
Programmable silent or audible panic.
!
Printer port (RS232)
!
One relay switched alarm/ panic output (12V, 1A)

2. Installation and Wiring

Please refer to Figure 1: Connection Diagram and familiarise yourself with the following sections.
IDS1600 INSTALLER MANUAL
must be used in conjunction with the specified transformer/battery
IDS1600
memory retains all program and event log data in the event of a total power
IDS windows based software.
- NO. 700-146-02E ISSUED AUGUST 2003 VER 2.19 5
