Impex CIRCUIT FITNESS AMZ-594U Assembly & Owners Manual

Magnetic resistance upright bike

Hide thumbs

Table Of Contents

NOTE:

Please read all

instructions carefully

before using this product

Magnetic Resistance

Table of Contents

Upright Bike

Safety Notice

AMZ-594U

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

AMZ-594U

Retain This

Manual for

Reference

190701

ASSEMBLY &

OWNER'S

MANUAL

IMPEX

INC.

2801 S. Towne Ave, Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.marcypro.com

support@impex-fitness.com

Table of Contents

Need help?

Do you have a question about the CIRCUIT FITNESS AMZ-594U and is the answer not in the manual?

Questions and answers

Richard Rodriquez

April 24, 2025

I would like to know the power cord info as I am in need of a replacement. For Impex fitness exercise bike Model # AMZ-594U thank you

Summary of Contents for Impex CIRCUIT FITNESS AMZ-594U

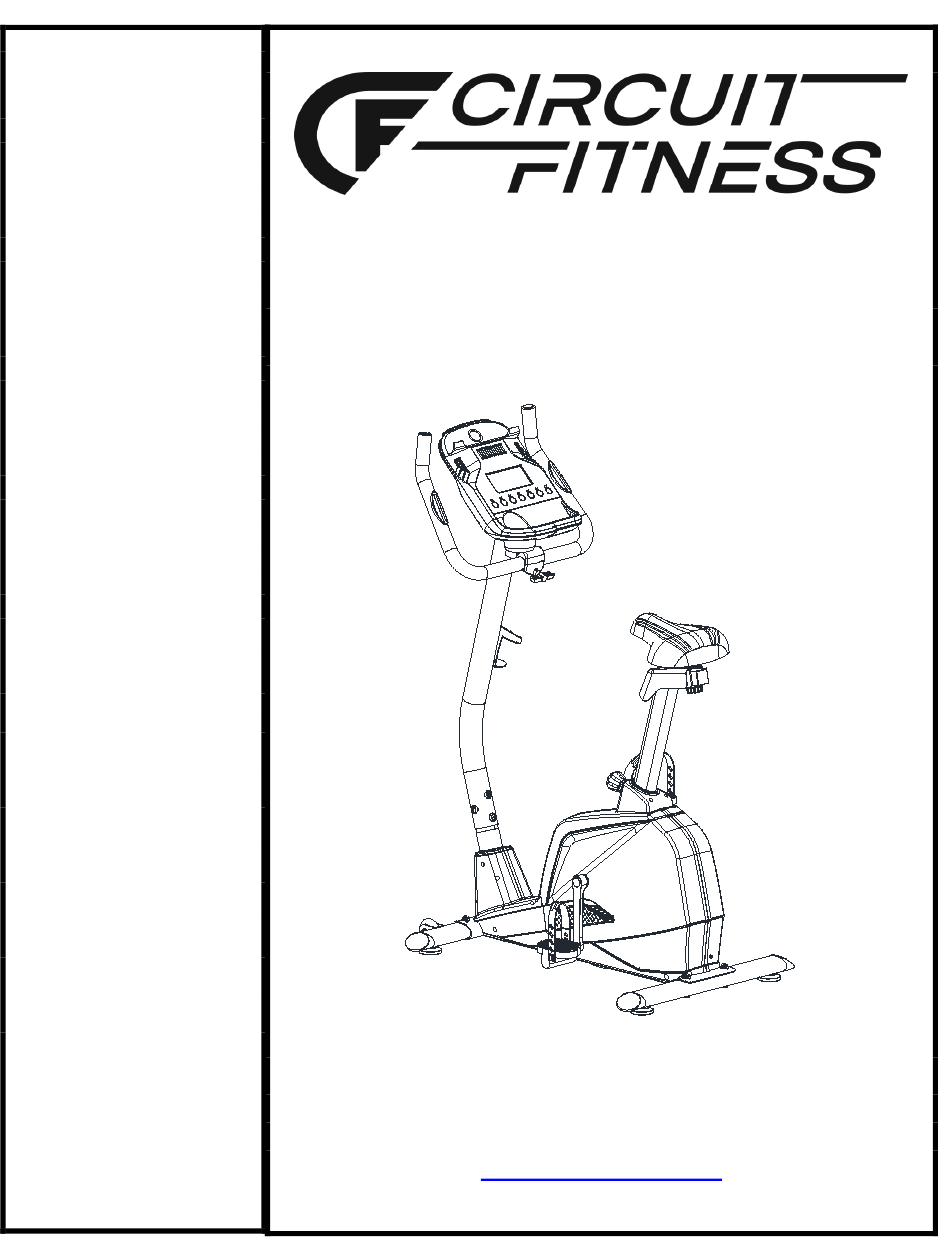

Page 1 AMZ-594U Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model AMZ-594U Retain This Manual for Reference 190701 ASSEMBLY & OWNER'S MANUAL IMPEX ® INC. 2801 S. Towne Ave, Pomona, CA 91766 Tel: (800) 999-8899 Fax: (626) 961-9966 www.marcypro.com support@impex-fitness.com...
Page 2: Table Of Contents
TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance to you. Toll-Free Customer Service Number 1-800-999-8899 Mon. - Fri. 9 a.m. - 5 p.m. PST www.marcypro.com support@impex-fitness.com © IMPEX INC. www.marcypro.com...
Page 3: Important Safety Notices
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Labels shown here has been placed on the Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. © IMPEX INC. www.marcypro.com...
Page 5: Hardware Pack
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. Description Drawings Allen Bolt M8*2 ⅛ ¾ Curved WasherΦ8xΦ Spring washer Quick Release Knob Allen Bolt M8x ⅝” Locking Knob Recovery Cover Allen wrench Allen key 6mm © IMPEX INC. www.marcypro.com...
Page 6: Component For Assembly
COMPONENTS FOR ASSEMBLY NO.1 NO.22 NO.15 NO.19 NO.18 NO.5 NO.9/10 NO.3 NO.2 NO.31 NO.16 © IMPEX INC. www.marcypro.com...
Page 7: Important Assembly Instruction
2. Attach the Front Stabilizer (#3) to the main frame with two Allen bolts (#6), Curved washers (#7), Locking Washers (#8). STEP-2 1. Thread the Stopper (#5) to the Rear Stabilizer (#2). 2. Attach the Rear Stabilizer (#2) to the main frame with two Allen bolts (#6), Curved washers (#7), Locking Washers (#8). © IMPEX INC. www.marcypro.com...
Page 8 STEP-3 1. Connect Lower sensor wire (#23) to Upper sensor wire (#24). 2. Insert the Front Post (#22) into the main frame, secure with Allen bolts (#17) and Curved washers (#7). © IMPEX INC. www.marcypro.com...
Page 9 1. Connect the Upper sensor wire (#24) and Hand pulse sensor wire (#38) to the Computer (#18). 2. Attached the Computer to the Front Post with the 4 screws (#29) that are pre-assembled on the computer. © IMPEX INC. www.marcypro.com...
Page 10 Seat Post (#15) to securely lock it at desired height. When adjusting the seat, do not go above the ‘’MAX Line’’ indicator on the seat support. STEP-7 1. Secure the Bottle holder (#35) to the Front Post with Self-Tapping Screws (#36). © IMPEX INC. www.marcypro.com...
Page 11 STEP-8 1. Thread the Right Pedal (#10) clockwise into the Crank. 2. Thread the Left Pedal (#9) counterclockwise into the crank on the other side. © IMPEX INC. www.marcypro.com...
Page 13: Parts List
Locking Knob Screw M5 x ½” Slide Frame Seat Post Cover End Cap of the Seat Post Adjusting U-Type Tube Knob Bottle holder Self-tapping Screw ST5*¾ Sleeve tube of seat post Hand pulse sensor wire of handlebar © IMPEX INC. www.marcypro.com...
Page 14: Care And Maintenance, Weight Capacity & Dims
8. Assembled Dimension (L x W x H): 37.4” x 21.65” x53.94” OPERATING NOTES TRANSPORT 1. To Transport the bike, tilt the bike forward so the transport wheels on the front stabilizer is engaged on the floor. Push or pull to a desired location. © IMPEX INC. www.marcypro.com...
Page 15: Computer
Press and hold for 2 seconds, computer will reboot and start from user setting. Reset Exit to main menu during preset workout value or stop mode. Start/ Stop Start or Stop workout. Recovery Test heart rate recovery status. In stop mode, press it for body fat measurement. Body fat © IMPEX INC. www.marcypro.com...
Page 16 Load level is displayed in WATT window. If no adjustment is made for 3 seconds, it will switch to display WATT (Drawing 12). 4. Press START/STOP keys to pause workout. Press RESET to exit to main menu. Drawing 8 Drawing 9 © IMPEX INC. www.marcypro.com...
Page 17 3. Use UP or DOWN Arrow to set TIME. 4. Press START/STOP key to start workout. Use UP or DOWN Arrow to adjust load level. 5. Press START/STOP key to pause workout. Use RESET to exit to main menu. Drawing 15 © IMPEX INC. www.marcypro.com...
Page 18 LCD will display BODY FAT advice symbol, BODY FAT percentage (Drawing 23), BMI (Drawing 24) for 30 seconds. 5. Error message: *The LCD displays “= = ” “ = =” (Drawing 25)–means not hand the grip or wear chest strap correctly. © IMPEX INC. www.marcypro.com...
Page 19 1. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up. 2. When computer act abnormal, please plug out the adaptor and plug in again. © IMPEX INC. www.marcypro.com...
Page 20: Exercise Guidelines
The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below. This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes © IMPEX INC. www.marcypro.com...
Page 21 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. © IMPEX INC. www.marcypro.com...
Page 22: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
