Marlec Solar iBoost+ Installation Instructions page 2

1

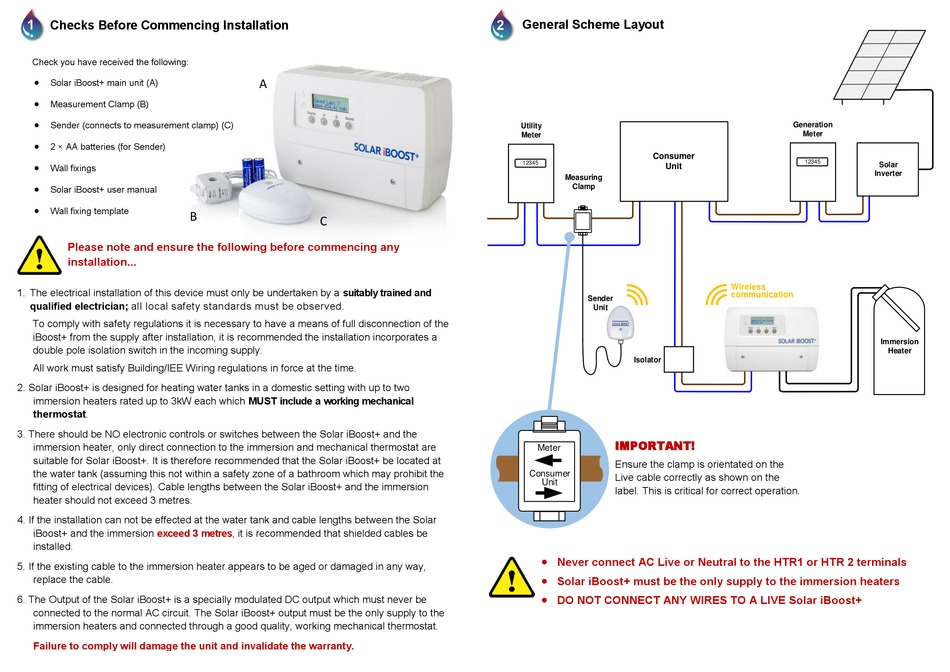

Checks Before Commencing Installation
Check you have received the following:

Solar iBoost+ main unit (A)

Measurement Clamp (B)

Sender (connects to measurement clamp) (C)

2 × AA batteries (for Sender)

Wall fixings

Solar iBoost+ user manual

Wall fixing template
B
Please note and ensure the following before commencing any
installation...
1. The electrical installation of this device must only be undertaken by a suitably trained and
qualified electrician; all local safety standards must be observed.
To comply with safety regulations it is necessary to have a means of full disconnection of the
iBoost+ from the supply after installation, it is recommended the installation incorporates a
double pole isolation switch in the incoming supply.
All work must satisfy Building/IEE Wiring regulations in force at the time.
2. Solar iBoost+ is designed for heating water tanks in a domestic setting with up to two
immersion heaters rated up to 3kW each which MUST include a working mechanical
thermostat.
3. There should be NO electronic controls or switches between the Solar iBoost+ and the
immersion heater, only direct connection to the immersion and mechanical thermostat are
suitable for Solar iBoost+. It is therefore recommended that the Solar iBoost+ be located at
the water tank (assuming this not within a safety zone of a bathroom which may prohibit the
fitting of electrical devices). Cable lengths between the Solar iBoost+ and the immersion
heater should not exceed 3 metres.
4. If the installation can not be effected at the water tank and cable lengths between the Solar
iBoost+ and the immersion exceed 3
installed.
5. If the existing cable to the immersion heater appears to be aged or damaged in any way,
replace the cable.
6. The Output of the Solar iBoost+ is a specially modulated DC output which must never be
connected to the normal AC circuit. The Solar iBoost+ output must be the only supply to the
immersion heaters and connected through a good quality, working mechanical thermostat.
Failure to comply will damage the unit and invalidate the warranty.
A
C
metres, it is recommended that shielded cables be
2 General Scheme Layout
Utility
Meter
Consumer
12345
Unit
Measuring
Clamp
Sender
Unit
SOLAR iBOOST
Isolator
IMPORTANT!
Ensure the clamp is orientated on the
Live cable correctly as shown on the
label. This is critical for correct operation.

Never connect AC Live or Neutral to the HTR1 or HTR 2 terminals

Solar iBoost+ must be the only supply to the immersion heaters

DO NOT CONNECT ANY WIRES TO A LIVE Solar iBoost+
Generation
Meter
12345
Solar
Inverter
Wireless
communication
Immersion
Heater
