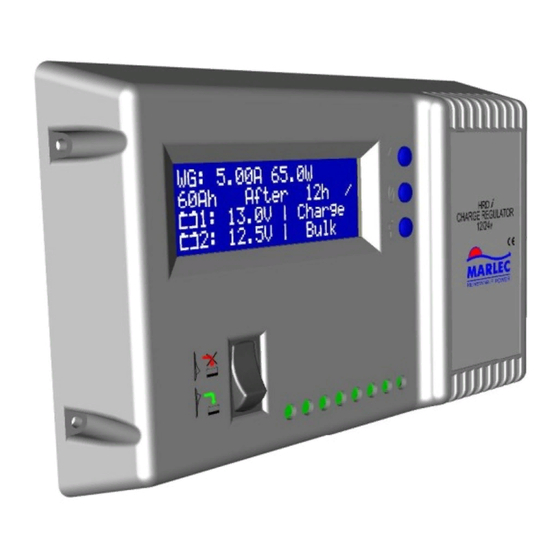

Marlec HRDi Installation And Operation Manual
Charge regulator
Hide thumbs
Also See for HRDi:
- Installation & operation (2 pages) ,
- User manual (2 pages) ,
- Installation & operation (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Marlec HRDi
Summary of Contents for Marlec HRDi

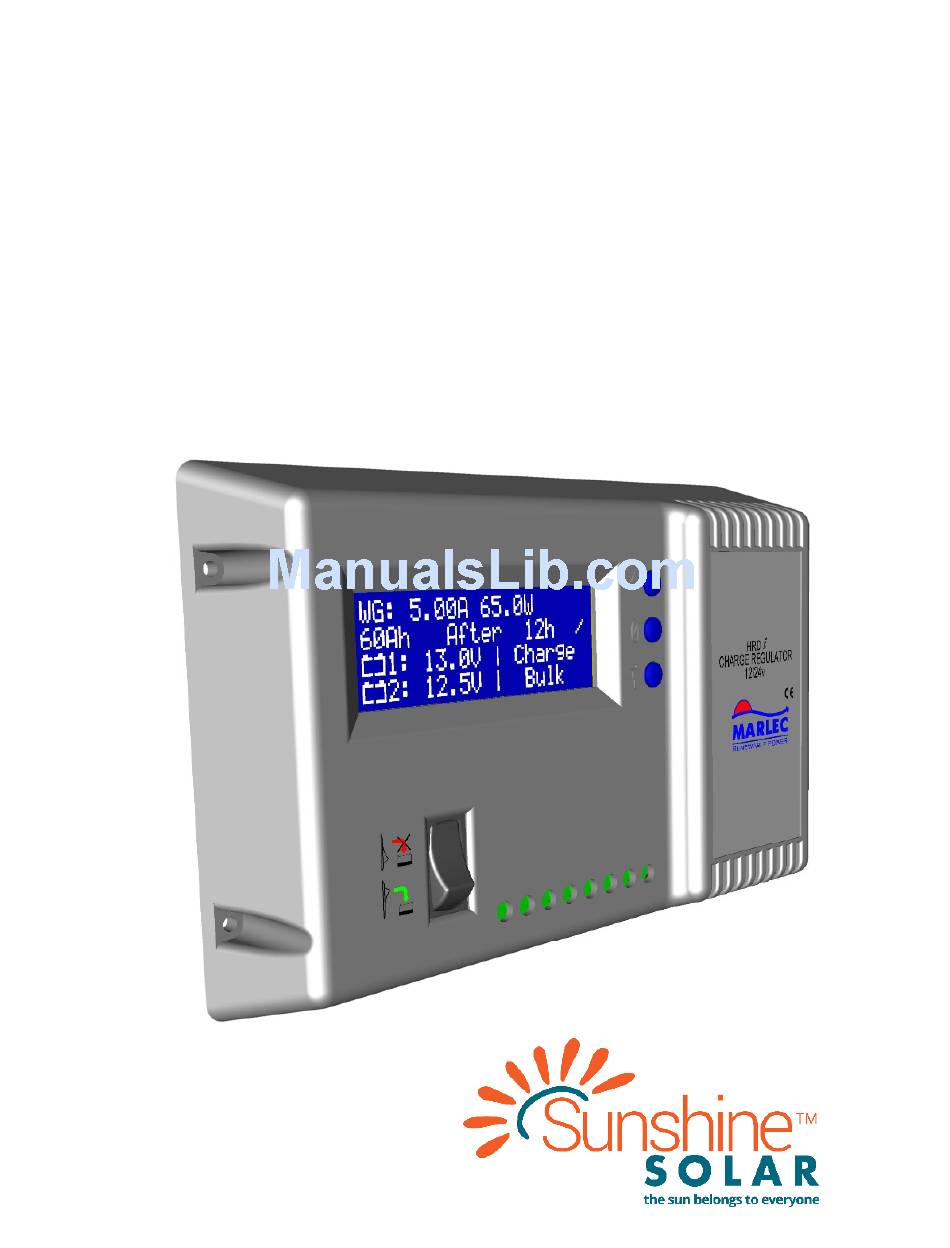

- Page 1 HRDi Charge Regulator Installation and Operation RUTLAND HRDi CHARGE REGULATOR INSTALLATION AND OPERATION...
- Page 2 Input for up to 160Watts of solar panels. Note : in ambient temperatures >40°C the solar panel • input must be de-rated. Contact your dealer or the manufacturer for advice. May be connected in parallel with other charge sources (not through the HRDi) • For use with a single or dual battery bank.
- Page 3 Select a covered dry vertical wall location in a ventilated area close to the batteries. Using the four screw holes in the casing, firmly attach the HRDi with the wiring block downmost. At this stage we recommend that the external temperature sensor be inserted into its dedicated port so that the sensor is in the viscinity of the batteries.
- Page 4 : Scroll Button - All three buttons have Press to scroll through the settings displayed. further functions when the HRDi is put into : Zero Button - programme mode. In this Press to zero the logged Ah displays. mode the buttons become selectors where choices : Light - Switches the back light on/off.
- Page 5 Operating Principles The HRDi Regulator protects batteries from overcharge. It uses pulse width modulation and multi-stage charge technology to maximise the power delivered to and retained in the battery. In the bulk/absorption phase all the available wind and solar power is used to charge the battery as quickly as possible.
- Page 6 The logging feature of the HRDi will continue to record up to 9999 Ah or 9999 hours duration before automatically returning to zero. (if not reset by user in the meantime) The memory in the HRDi saves the latest settings made and these are retained even if the unit is disconnected. Reconnection immediately re-activates these settings.
- Page 7 HRDi Charge Regulator Installation and Operation Cut Away of HRDi Wiring Block WG+ WG– PV+ PV- BAT+ BAT– BAT2+ BAT2- WG -Windcharger HRDi Charge Regulator PV— Solar Module (Max 160 W) BLOCKING DIODE MUST BE FITTED* Wiring block * Parallel panels each In Line Fuse require a blocking diode .
- Page 8 HRDi Charge Regulator Installation and Operation Sunshine Solar Limited Unit 30, Ashwellthorpe Industrial Estate Ashwellthorpe Norwich Norfolk NR16 1ER Tel: +44 (0)1508 488 188 Email: sales@sunshinesolar.co.uk www.sunshinesolar.co.uk...
