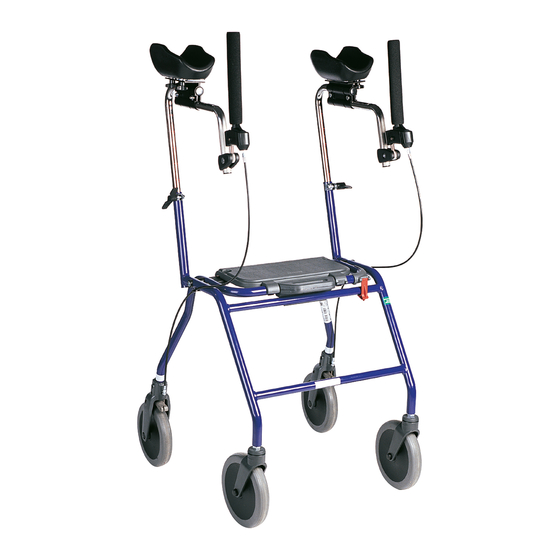

- Page 1 DOLOMITE ALPHA ADVANCED INSTRUCTIONS...
- Page 2 DOLOMITE ALPHA ADVANCED OPERATING INSTRUCTIONS Study the operating instructions carefully before use. The person who prescribes the product or who is otherwise responsible for the user must ensure that the product is suitable for the user.
-
Page 3: Adjustment Possibilities
DOLOMITE ALPHA ADVANCED ADJUSTMENT POSSIBILITIES • Height adjustment ................8 • Inwards rotation of arm supports ..........8 • Depth adjustment ................10 • Inwards rotation of arm support plates........10 • Angular setting of handle ............10 • Depth adjustment of the arm support plates ......10 •... - Page 4 DOLOMITE ALPHA ADVANCED FOLDING/SEAT Pull the folding blocker and lift the handle for folding. Folded position. Space-saving. Suitable for carrying in stairs. For ready-to-start position, block with thumb for locking. A clicking sound indicates right position Make sure that the folding blocker is in place when the walker is to be used again.
-
Page 5: Height Adjustment
DOLOMITE ALPHA ADVANCED HEIGHT ADJUSTMENT/ INWARDS ROTATION OF ARM SUPPORT Adjustment MUST be made by your dealer, Height adjustment/Inwards rotation of arm support. Loosen the lever/adjust to suitable height and angle. Tighten carefully. Angular setting: Max 20° Must not be angled outwards. -
Page 6: Depth Adjustment
DOLOMITE ALPHA ADVANCED DEPTH ADJUSTMENT Loosen the two screws with the attached key. The following adjustments are now possible: • Depth adjustment • Inwards rotation of arm support cup • Angular setting of brake Make the adjustments wanted. Tighten carefully Maximum + adjustment. - Page 7 DOLOMITE ALPHA ADVANCED Rattar Knobs Sternschrauben knoppen Volantini INWARDS ROTATION OF ARM SUPPORT PLATES Loosen the two knobs. Adjust the two arm support cups to appropriate width/angle.
- Page 8 DOLOMITE ALPHA ADVANCED ADJUSTMENT OF BRAKE HANDLE 1. Loosen the screw (1) with the attached key, Important! Make sure the socket head wrench is fully fitted befor starting to tighten or slacken. 2. The fastening device (2) can now be height and sideways-adjusted and the brake can by means of the ball joint be rotated for optional hand location and optional function direction.
- Page 9 DOLOMITE ALPHA ADVANCED BRAKES Adjust the brake wire using cap keys Nos. 8 and 10 in case of poor brake effect.
- Page 10 DOLOMITE ALPHA ADVANCED ALPHA ADVANCED 950-1190 310-360...
- Page 11 DOLOMITE ALPHA ADVANCED It is prohibited to stand on the walker and to use it for transport of people.
- Page 12 DOLOMITE ALPHA ADVANCED INSTRUCTIONS FOR DESTRUCTION OF PRODUCT AND PACKING: When the product can no longer be used, it and its accessories as well as the packaging material should be assorted in the correct way. The individual parts can be separated and handled according to the list...
- Page 13 DOLOMITE ALPHA ADVANCED DOLOMITE ALPHA BASIC MAINTENANCE - SAFETY To ensure good performance and safety you should regularly check that the following is carried out: • Clean the rollator with solvent-free household cleaner. Keep the wheels clean. • Ensure that screws and adjustments are properly tightened.
